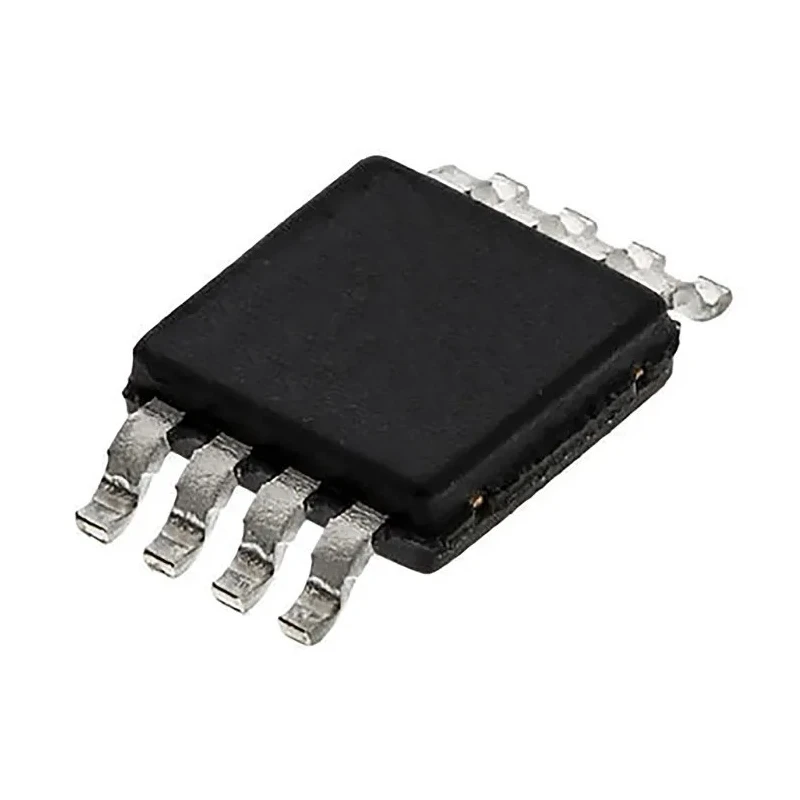

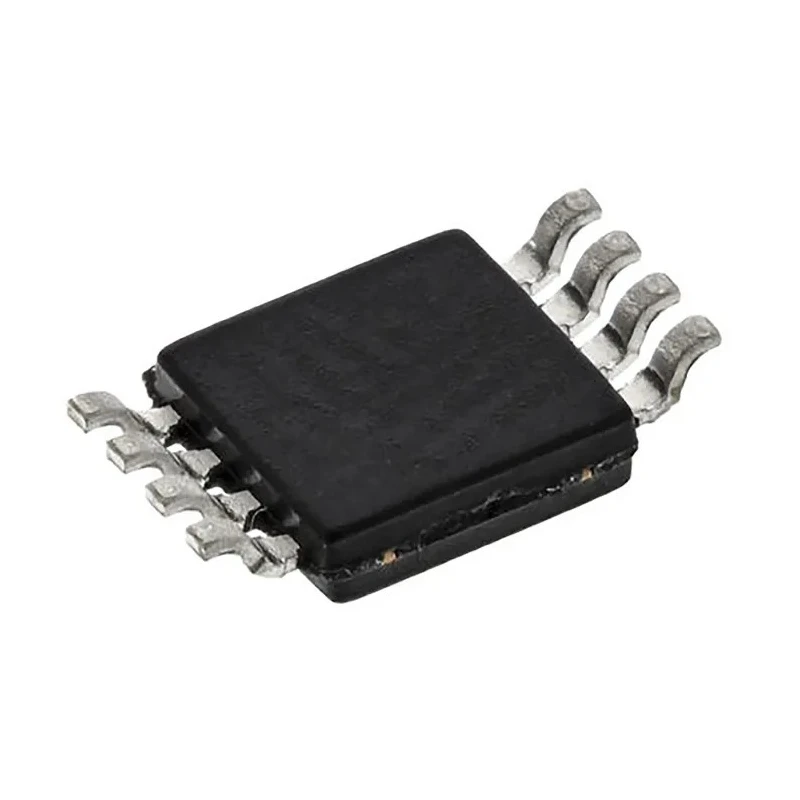

Microchip PIC12F1501-I/MS 8-Bit PIC Microcontroller 20 MHz FLASH 8-Pin MSOP
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 950μm |
| Length | 3mm |
| Model | PIC12F1501-I/MS |
| Width | 3mm |
| Mount Type | Surface |
| Series | PIC12F |
| Maximum Operating Temperature | 85°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Ram size | 64bit |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | ISO/TS 16949 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2.3V |
| Device Core | PIC |
| Program Memory Size | 1.75kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 6 |
| Analogue Comparators | 1 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 4 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- This microcontroller features a 1.75 Kbyte program memory and 64 bytes of RAM.
- Operates at a voltage range from 2.3 V to 5.5 V for flexible power supply options.
- Equipped with 6 programmable I/O pins for versatile interfacing.
- Includes a 5-bit DAC and four 10-bit ADC channels for analog signal processing.
- Supports 3 timers including two 8-bit and one 16-bit timers for precise timing applications.
- Incorporates 2 configurable logic cell modules for complex digital functions.
- Enhanced mid-range RISC architecture delivering up to 5 MIPS processing speed.
- Compliant with RoHS standards and ISO/TS 16949 automotive quality standards.
Product Description
Microchip PIC12F1501-I/MS is an 8-bit PIC microcontroller designed for versatile embedded applications. It operates at a maximum clock frequency of 20 MHz and includes 1.75 Kbyte of FLASH program memory with 64 bytes of RAM, providing ample resources for compact control solutions.
The device comes in a small 8-pin MSOP package, featuring 6 programmable I/O pins to interface with sensors and peripherals. It supports operation from 2.3 V up to 5.5 V supply voltage, making it suitable for various power environments.
Built on Microchip’s enhanced mid-range RISC core with 49 instructions, it delivers efficient processing at up to 5 MIPS. The integrated peripherals include a single 5-bit digital-to-analog converter (DAC), four 10-bit analog-to-digital converters (ADCs), and one analog comparator for precise signal monitoring.
For timing and control, the microcontroller offers two 8-bit timers (TMR0 and TMR2) and one 16-bit timer (TMR1), as well as two Configurable Logic Cell (CLC) modules enabling customized digital logic functions. Additional features include a Numerically Controlled Oscillator (NCO) and Complementary Waveform Generator (CWG) to aid in signal generation.
The microcontroller meets automotive quality standards (ISO/TS 16949) and is RoHS compliant, ensuring reliable performance and environmental responsibility. Manufactured in Thailand, it is ideal for a broad range of industrial, automotive, and consumer electronics applications.
This microcontroller features a 1.75 Kbyte program memory and 64 bytes of RAM. Operates at a voltage range from 2.3 V to 5.5 V for flexible power supply options. Equipped with 6 programmable I/O pins for versatile interfacing.
Includes a 5-bit DAC and four 10-bit ADC channels for analog signal processing. Supports 3 timers including two 8-bit and one 16-bit timers for precise timing applications. Incorporates 2 configurable logic cell modules for complex digital functions.
Enhanced mid-range RISC architecture delivering up to 5 MIPS processing speed. Compliant with RoHS standards and ISO/TS 16949 automotive quality standards. Compact dimensions of 3 mm length, 3 mm width, and 950 μm height fit small designs.
Explore the Electronics & Electricals semiconductor catalog at EnvMart for a wide selection of Microcontrollers including this Microchip PIC12F1501-I/MS for your embedded system needs.
