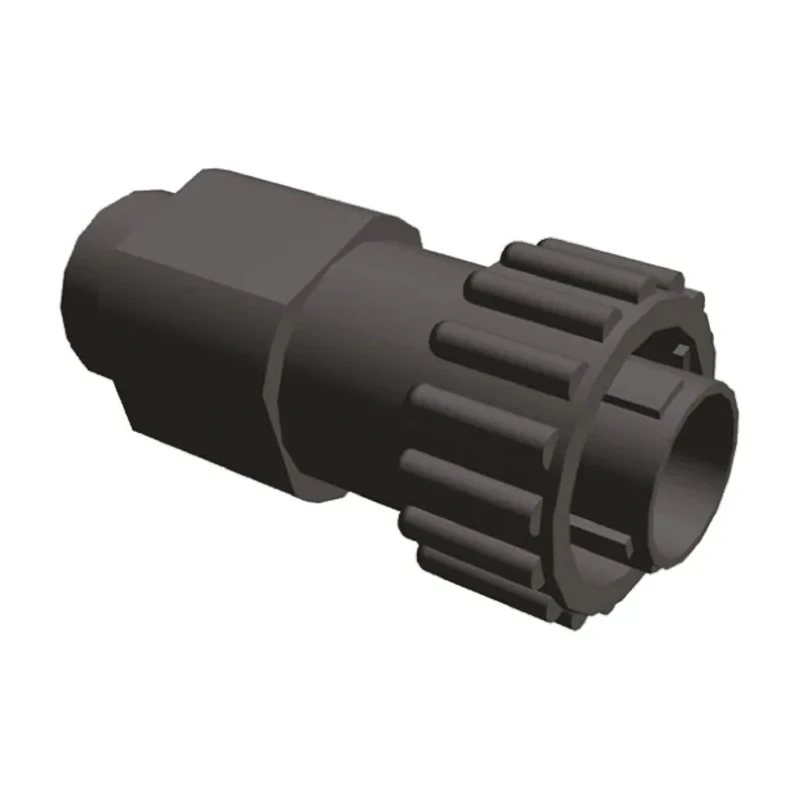

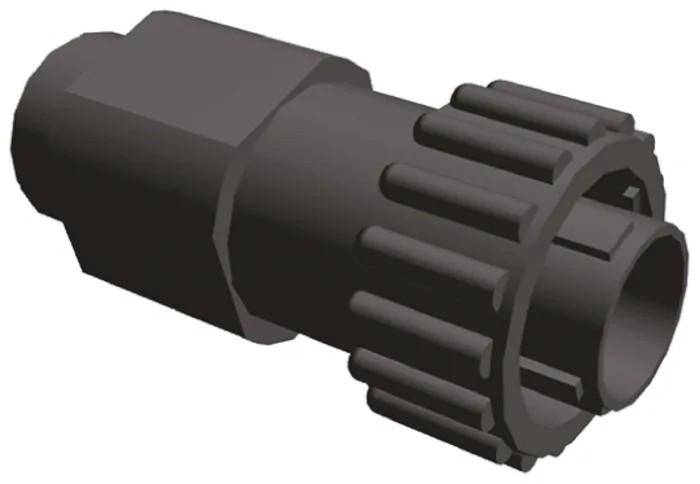

TE Connectivity Circular Connector 4 Contacts Panel Mount Plug Male IP65 600V 17A CPC Series 788153-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 17A |
| Model | 788153-2 |
| IP Rating | IP65 |
| Mount Type | Panel Mount |
| Housing Material | Thermoplastic |
| Contact Material | Copper |
| Series | CPC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 4 |
| Contact Plating | Nickel |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shell Size | 11 |
| Mating Type | Keyed |
| Connector Size | Standard |
| Plug/Socket | Plug |
| Coding | A |
Key Features
- The connector operates at 600 volts and supports a current of 17 amperes.
- It features a standard size shell size of 11 for compatibility.
- The connector is made of thermoplastic housing material for durability and UL 94V-0 flame resistance.
- Designed with nickel-plated copper contacts to ensure reliable conductivity and corrosion resistance.
- Suitable for temperature ranges from -55°C to 105°C, allowing broad operation environments.
- The connector uses keyed mating type and straight orientation, ensuring secure connections.
- Termination type is crimp, enabling efficient wire assembly.
- IP65 rating guarantees protection against dust ingress and low-pressure water jets.
Product Description
TE Connectivity 788153-2 Circular Connector is a panel mount, standard size plug designed for reliable industrial and electronic power applications. This 4 contact connector features male contacts and is part of the CPC Series known for sealed, high-performance connectors.
The connector is rated for operating voltages up to 600V and currents of 17A, suitable for various electrical systems requiring secure and durable connections. Its thermoplastic housing material meets UL 94V-0 standards, ensuring flame retardance and mechanical protection.
The nickel-plated copper contacts provide excellent electrical conductivity along with corrosion resistance, capable of operating in temperature extremes from -55°C to 105°C. Its crimp termination facilitates quick and reliable assembly, while the keyed mating type and straight orientation guarantee proper alignment and stable connections.
With an IP65 ingress protection rating, the connector is resistant to dust and water jets, making it suitable for harsh industrial environments, water treatment, manufacturing, and automation control systems. The CPC Series includes a bonded peripheral grey elastomer seal that enhances sealing and durability for demanding applications.
This connector is ideal for use in industrial circular connectors requiring panel mount configurations with reliable environmental protection and robust electrical performance. It integrates easily into machinery, control panels, and electronic power distributions.
The connector operates at 600 volts and supports a current of 17 amperes. It features a standard shell size 11 and a thermoplastic UL 94V-0 rated housing. Nickel-plated copper contacts ensure conductivity and corrosion resistance.
Operates across temperatures from -55°C to 105°C for versatile use. Panel mount with 4 contacts and male plug design for secure connections. IP65 rating provides dust and water protection for industrial environments. Crimp termination and keyed mating type enhance installation and reliability.
Part of CPC Series 1 sealed connectors with a bonded peripheral seal.
Explore the full range of Industrial Circular Connectors from TE Connectivity on EnvMart to find optimal solutions for electronic components, automation, and power distribution applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for operating voltages up to 600V.
It supports a current of 17 amperes.
This connector has an IP65 rating, providing protection against dust and low-pressure water jets.
The housing is made of thermoplastic material, and the contacts are nickel-plated copper for conductivity and corrosion resistance.
It operates within a temperature range from -55°C to 105°C.
This model features crimp termination for efficient wire assembly.
The connector features 4 contacts with a male plug design.
It has a standard shell size of 11 for compatibility.
It uses a keyed mating type to ensure secure connections.
This connector is suitable for industrial environments, water treatment, manufacturing, and automation control systems.
The connector is designed with a straight orientation.
The country of origin for this connector is India.
