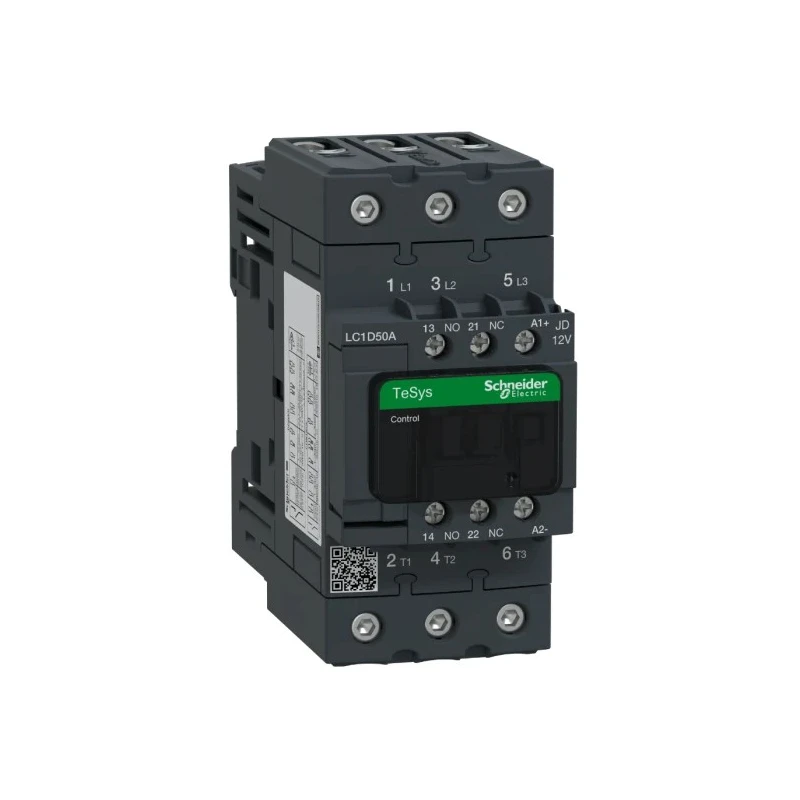

Schneider Electric LC1D Contactor, 12V DC Coil, 3-Pole, 50A, 33kW Power Rating, DIN Rail Mount LC1D50AJD

Schneider Electric LC1D50AJD is a robust and reliable 3-pole contactor designed for motor control and resistive load applications. Featuring a 12V DC coil with a transient suppressor module, this contactor is ideal for industrial, commercial, and manufacturing settings requiring dependable switching solutions.

The device supports motor loads up to 33kW at 690V AC/DC, ensuring it handles a wide range of applications efficiently. Its compact form factor (55mm width) and DIN rail mounting with additional screw fixing options make installation straightforward in control panels and automation setups.

The contactor is equipped with 3 normally open contacts and includes 2 auxiliary contacts configured as 1 normally open and 1 normally closed, the latter being mirror certified to guarantee precise switching. It supports operational current of 50A and is rated for use in environments with temperatures ranging from -5°C up to 60°C, making it suitable for various climates and industrial conditions.

Compliance with CSA, UL, IEC, CCC, EAC, and Marine standards ensures international reliability. The device also meets green product standards, being RoHS and REACh compliant, supporting sustainable and environmentally responsible operations.

The connection system employs EverLink BTR screw connectors for power and spring terminals for control circuits, enhancing electrical safety and ease of maintenance. Designed for high operational durability, the contactor supports up to 3600 switching cycles per hour and can be paired with circuit breakers rated up to 110A, achieving a short-circuit current rating (SCCR) up to 100kA, providing robust protection in demanding electrical systems.

Includes a 12V DC coil with transient suppressor module. 3 poles with 3 normally open contacts and 2 auxiliary contacts. Motor control applications up to 33kW, rated at 50A and 690V AC/DC. Compact 55mm wide housing for DIN rail mounting.

Operating temperature range: -5°C to 60°C for diverse environments. Certified to international standards: IEC, UL, CSA, CCC, EAC, and Marine. Green Premium compliant with RoHS and REACh standards. High reliability with 3600 cycles/hour operation rating.

Power connections via EverLink BTR screw connectors. SCCR up to 100kA with compatible circuit breakers or fuses.

Ideal for industrial automation, motor starters, HVAC systems, manufacturing processes, and electrical control panels, this Schneider Electric contactor delivers dependable performance and longevity. Explore more Schneider Electric products and Contactors to suit your engineering and automation requirements.
