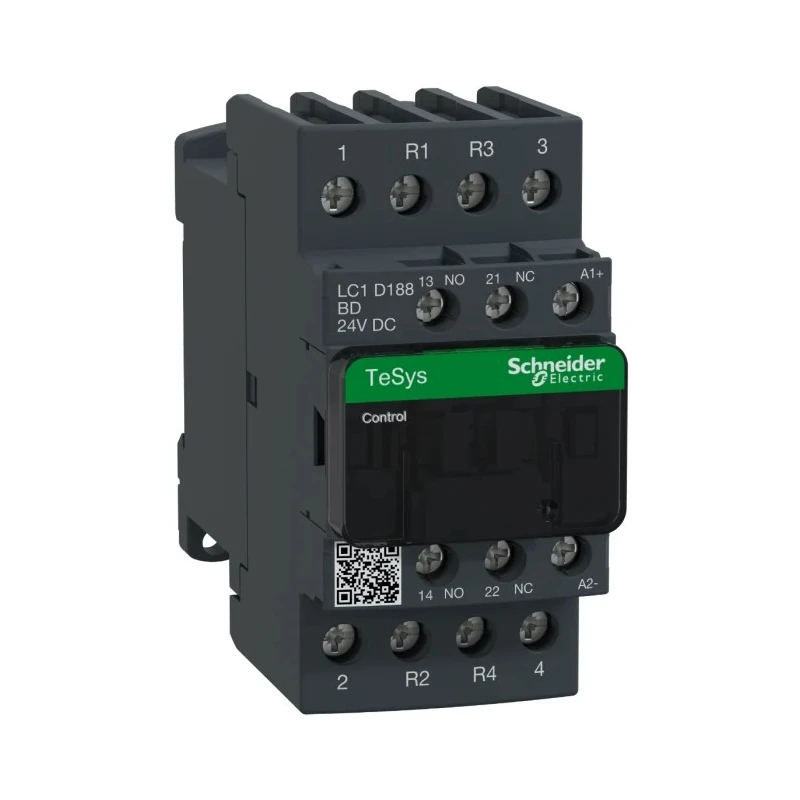

Schneider Electric LC1D Contactor, 24V DC Coil, 4-Pole, 32A, 2 NO/2 NC, 690V AC/DC LC1D188BD
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 91mm |
| Model | LC1D188BD |
| Depth | 107mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 24V dc |
| Normal State Configuration | 2 NO/2 NC |
| Better World Claim | Designed for Disassembly |
| Contact Current | 32A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 32A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Operates on a 24V DC coil voltage ensuring precise control.
- Designed with 4 poles supporting 32A contact current at 690V AC/DC.
- Equipped with 2 Normally Open and 2 Normally Closed contacts for versatile switching.
- Mountable on DIN rail for easy integration in control panels.
- Screw terminals with IP20 finger-safe protection enhance safety and reliability.
- Suitable for resistive loads and motor control applications.
- Designed to operate between -5°C and 60°C for diverse environments.
- Complies with CSA and UL standards ensuring quality and safety.
Product Description
Schneider Electric LC1D188BD is a high-performance TeSys D contactor featuring a 24V DC coil and a 4-pole design rated for 32A contact current at 690V AC/DC. This contactor is engineered for motor control and resistive load applications, offering long mechanical and electrical life for dependable operation.
Designed for easy integration with DIN rail mounting and screw terminal connections, the device ensures robust installation and maintenance. Its IP20 finger-safe terminals comply with international safety standards and support both North American and International terminal markings.
Operating efficiently within a temperature range of -5°C to 60°C, this contactor includes 2 auxiliary contacts (1 NO/1 NC) for versatile control circuit configurations. The contactor is designed with a bidirectional peak limiting diode suppressor to protect the coil and maintain operational reliability.
The TeSys D range provides double break pole contactors with linear translation movement for enhanced electrical performance. This model meets CSA and UL standards, suitable for industrial automation, manufacturing, HVAC, and other electrical control use cases.
Operates on 24V DC coil voltage providing precise control. 4-pole design rated for 32A contact current at 690V AC/DC. 2 NO/2 NC contact configuration for flexible switching. DIN rail mountable with screw terminals and IP20 finger-safe protection.
Auxiliary contacts: 2 (1 NO/1 NC) for extended control applications. Wide operational temperature of -5°C to 60°C. Meets CSA and UL safety and quality standards.
This Schneider Electric Contactor supports resistive and motor load applications in robust industrial environments. It is ideal for control panels and automation systems requiring reliable switching and enhanced safety features. Explore more Schneider Electric products and automation solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this contactor is 24V DC.
It is rated for a maximum contact current of 32A.
This contactor operates efficiently within a temperature range of -5°C to 60°C.
The contactor features a 4-pole design.
It is suitable for motor control and resistive load applications.
The LC1D188BD includes 2 auxiliary contacts configured as 1 Normally Open (NO) and 1 Normally Closed (NC).
The contactor measures 91mm in length, 107mm in depth, and 45mm in width.
It is designed for DIN rail mounting.
It features screw terminals with IP20 finger-safe protection.
This model complies with CSA and UL standards.
The contact voltage rating is 690V AC/DC.
The diode suppressor protects the coil and maintains operational reliability.
