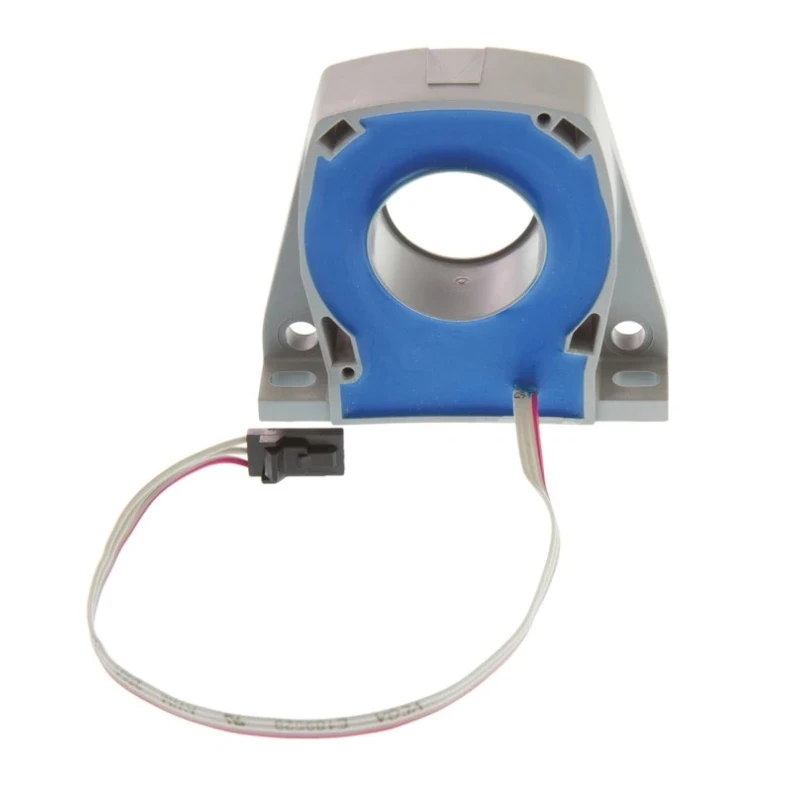

Honeywell Technologies CSN Series Current Sensor 600A 1:2000 Turns Ratio 15V Supply Voltage 26mm Bore CSNS300F
Specifications
| Country of Origin | India |
|---|---|
| Brand | Honeywell |
| Model | CSNS300F |
| Mount Type | Horizontal, Vertical |
| Series | CSN |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |

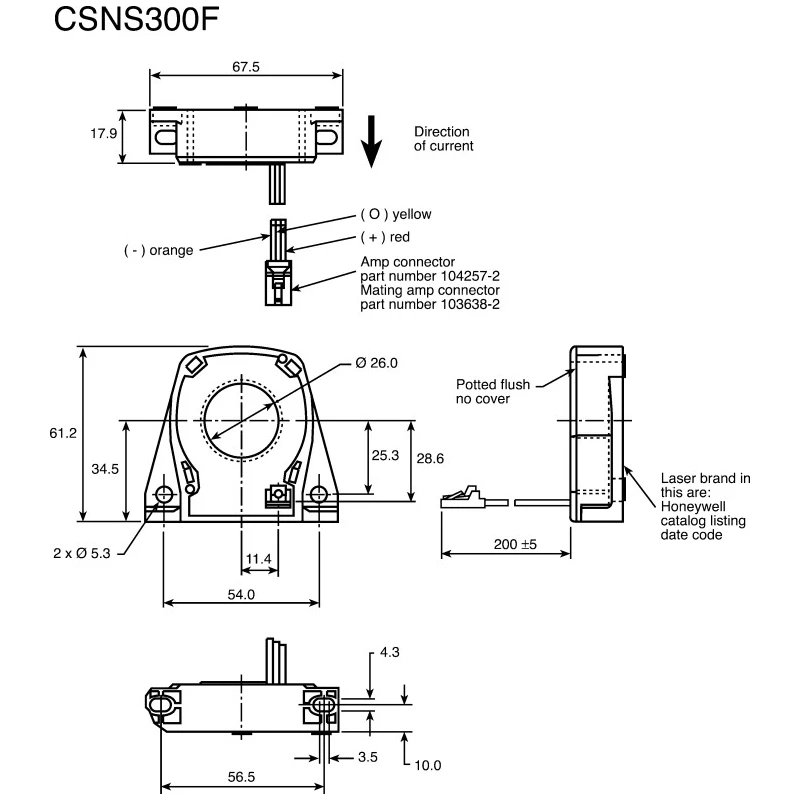

| Bore Diameter | 26mm |
| Secondary current | 150mA |
| Terminal type | Molex Type Connector or Flying Lead |
| Supply Voltage | 15V |
| Primary Current | 600A |
| Minimum Operating Frequency | 0Hz |
| Maximum Operating Frequency | 150kHz |
| Turns Ratio | 1:2000 |
| Secondary DC Resistance | 31Ω |
| Honeywell Technologies CSN Series Current Sensor 600 A 1 | 2000 15V 26mm BoreBrand: Honeywell |
Key Features
- Utilizes Hall effect and null balance method for accurate current measurement.
- Features a 26mm bore diameter for accommodating large primary conductors.
- Supports supply voltage of 15V for reliable sensor operation.
- Operates within temperature range from -40°C to 85°C.
- Designed for both horizontal and vertical mounting configurations.
- Maximum operating frequency of 150kHz enables handling of high-frequency signals.
- Includes Molex type connector or flying lead for terminal connections.
- Suitable for industrial applications like variable speed drives, overcurrent protection, UPS systems, and robotics.
Product Description
Honeywell CSNS300F is a high-performance Current Sensor from the CSN series designed for precise isolated measurement of AC and DC currents up to 600A. This sensor employs the Hall effect and null balance principle, allowing accurate current sensing in a compact footprint.
It features a 26mm diameter bore for accommodating large primary conductors, ensuring versatility in industrial and automation setups. The sensor requires a 15V supply voltage and maintains reliable operation across a temperature range of -40°C to 85°C. Its switching speeds up to 150kHz make it suitable for high-frequency current measurements.
The CSNS300F provides a turns ratio of 1:2000 and a secondary current rating of 150mA. Termination is through a Molex type connector or flying leads to facilitate easy installation. Its mounting flexibility includes both horizontal and vertical orientations, adapting to various equipment configurations.
Typical applications include integration in variable speed drives, overcurrent protection circuits, power supply monitoring, frequency converters, UPS systems, robotics, battery management systems, and welding equipment. The compact design supports installation in constrained spaces without compromising accuracy or durability.
Utilizes Hall effect and null balance method for accurate current measurement. Large 26mm bore diameter for accommodating primary conductors. Robust supply voltage of 15V ensures reliable sensor operation. Wide operating temperature range from -40°C to 85°C.
High maximum frequency of 150kHz supports rapid signal changes. Flexible mounting options: horizontal and vertical. Termination via Molex connector or flying lead for convenience. Ideal for a range of industrial and automation applications.
Compact footprint for installation in tight spaces. New product condition guaranteeing quality and reliability.
Explore EnvMart’s extensive Electronics & Electricals catalog for similar Honeywell current sensing solutions and other automation control gear products tailored for industrial and manufacturing systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a maximum current rating of 600A, allowing it to measure both AC and DC currents accurately.
The CSNS300F requires a supply voltage of 15V for reliable operation.
It features a turns ratio of 1:2000, which is designed for precise current measurement.
This sensor has a bore diameter of 26mm, accommodating large primary conductors.
The operating temperature range for this model is from -40°C to 85°C, making it suitable for various environments.
The CSNS300F can operate at a maximum frequency of 150kHz, enabling it to handle high-frequency signals.
It includes a Molex type connector or flying leads for terminal connections, facilitating easy installation.
Yes, this model supports both horizontal and vertical mounting configurations, providing flexibility for installation.
The secondary current rating for this current sensor is 150mA.
Typical applications include variable speed drives, overcurrent protection, UPS systems, and robotics.
The specific materials used in the construction of the CSNS300F are not detailed in the provided information.
The minimum operating frequency for this current sensor is 0Hz, allowing it to measure static currents as well.
