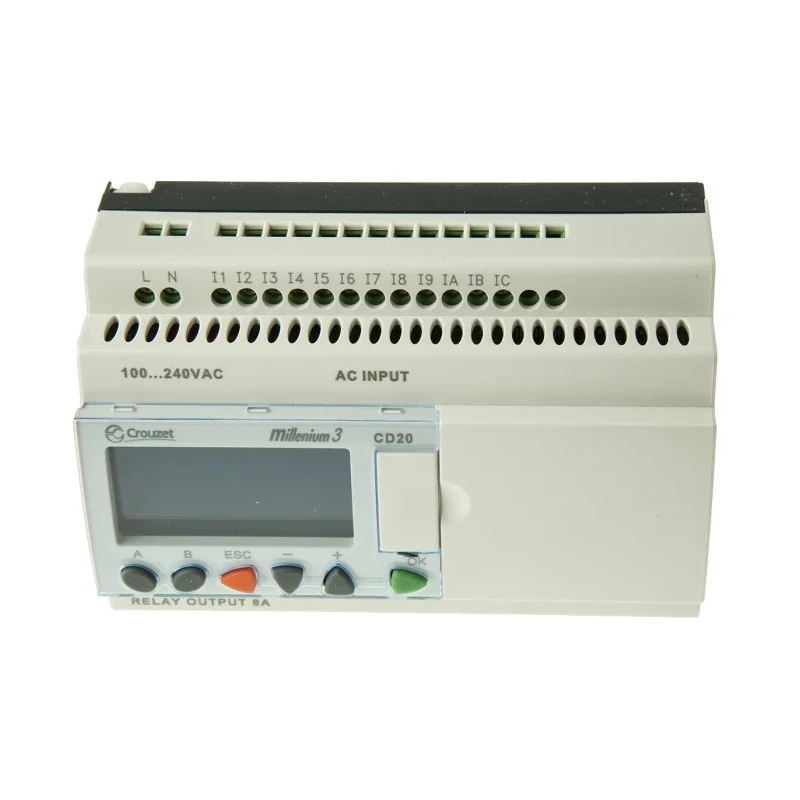

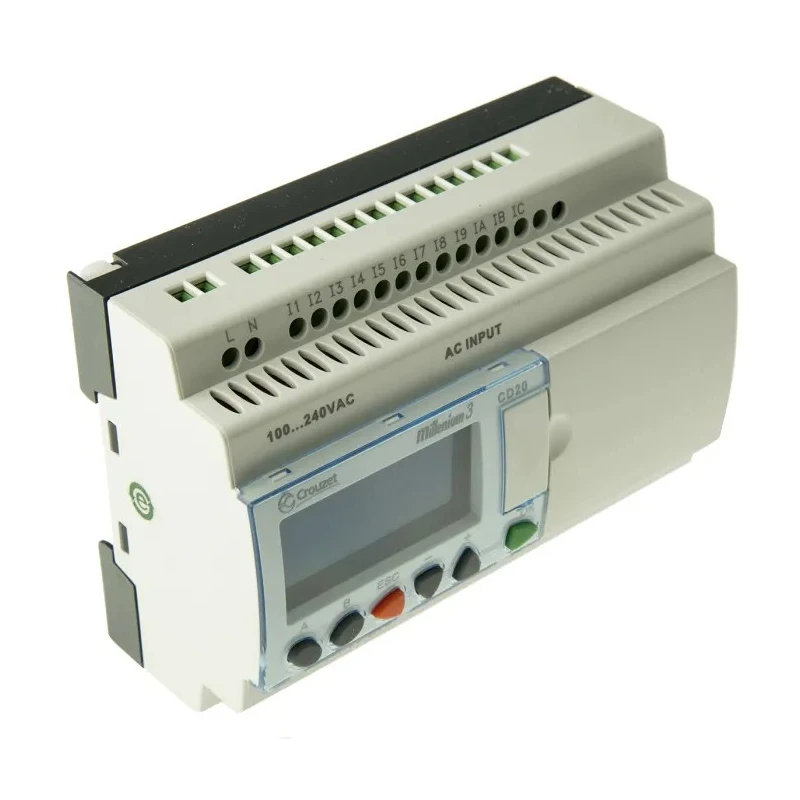

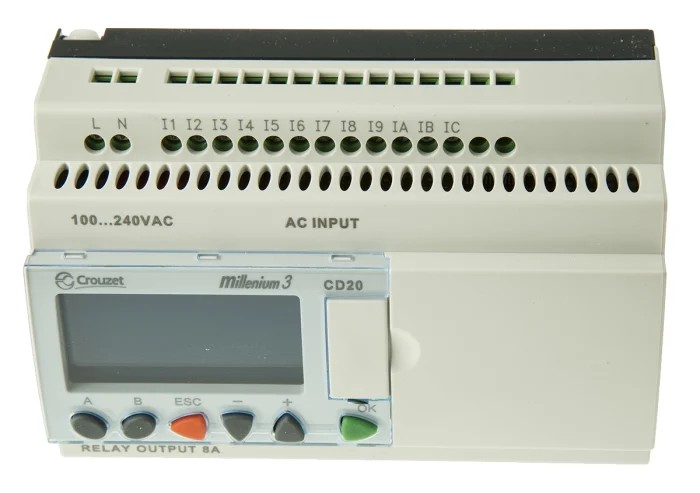

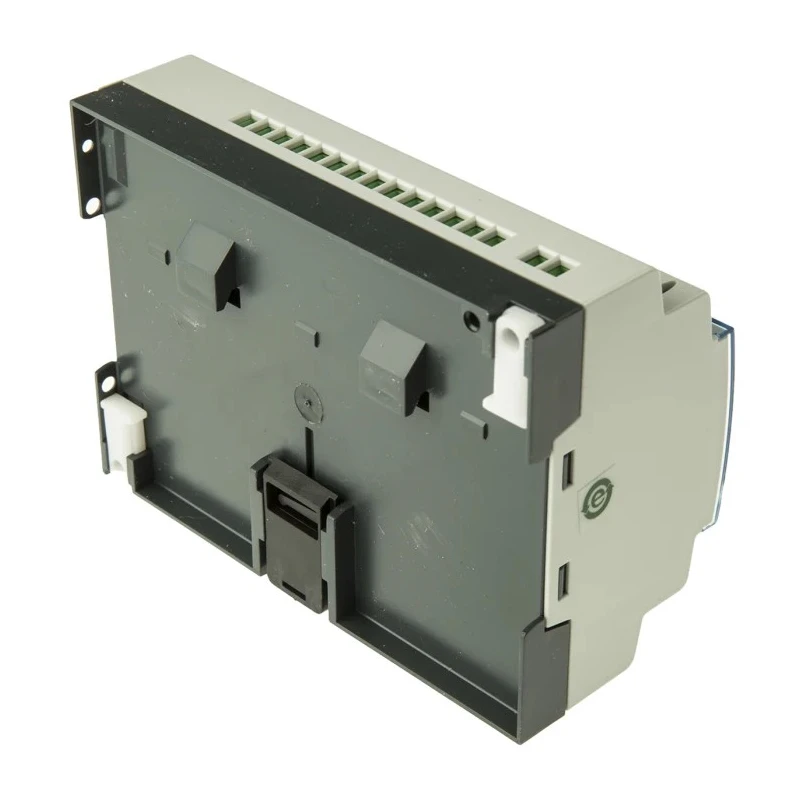

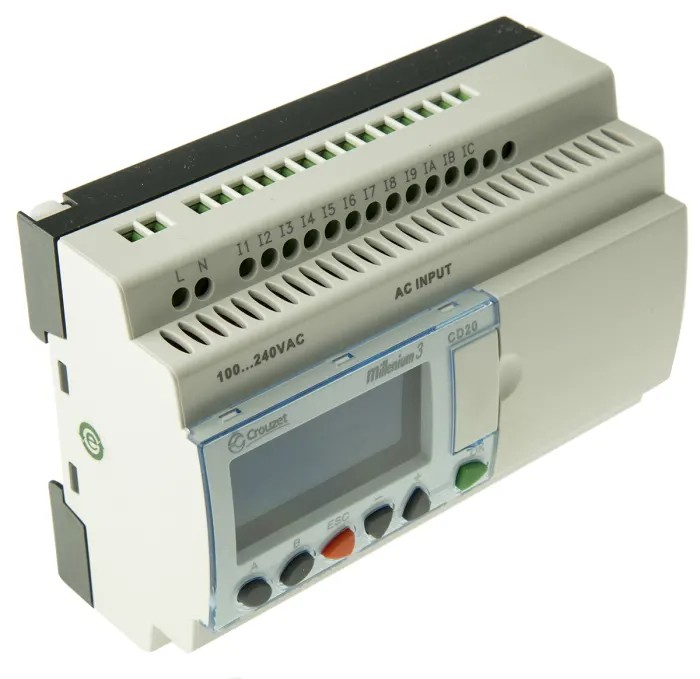

Crouzet Millenium 3 Series Logic Module 12-Input Digital Input 8 Outputs Relay Output 230V AC 8A 88974053
Specifications
| Country of Origin | France |
|---|---|
| Brand | Crouzet |
| Length | 100mm |
| Model | 88974053 |
| Depth | 68mm |
| Width | 71.2mm |
| Mount Type | DIN Rail |
| Number of inputs | 12 |
| Output type | Relay |
| Series | Millenium 3 |
| Output Current | 8A |
| Input Type | Digital |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 8 |
| Program Capacity | 368bit |
| Supply Voltage | 230V ac |
| Number of Communication Ports | 2 |
| Communication Port Type | Serial, USB |
| Programming Language Used | Ladder Logic |
Key Features
- Features a 4-line LCD display with configurable backlighting for ease of operation.
- Supports ladder logic programming compatible with various industrial applications.
- Equipped with battery backup to maintain operation during power interruptions.
- Designed for DIN rail mounting with compact dimensions (100x71.2x68 mm).
- Operates reliably within a temperature range of -20°C to 55°C.
- Complies with IEC standards including EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, and EN 61131-2.
- Accepts 230V AC supply voltage and provides an 8A output current.
Product Description
Crouzet 88974053 Millenium 3 Series Logic Module is an advanced programmable logic controller designed for industrial automation. It features 12 digital inputs and 8 relay outputs with an 8A output current rating, operating on a 230V AC supply. The integrated LCD display offers 4 lines of 18 characters with configurable backlighting, enhancing usability in industrial environments.
This logic module supports ladder logic programming, facilitating customization for application-specific control needs. It includes two communication ports, Serial and USB, enabling flexible communication and integration within automation systems. The module is mounted on a standard DIN rail, with compact dimensions (Length 100mm, Width 71.2mm, Depth 68mm) suitable for control panels with limited space.
Designed for robust operation, it functions reliably between -20°C and 55°C and complies with international IEC standards EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, and EN 61131-2, ensuring electromagnetic compatibility and performance in demanding industrial conditions. Battery backup is included to maintain critical data during power failures, improving system reliability.
4-line LCD with configurable backlighting enhances operator interaction. Ladder logic programming supports complex and flexible automation control. Serial and USB communication ports enable versatile system connectivity.
Battery backup preserves program and data integrity during outages. Compact DIN rail mounting design reduces control panel footprint. Wide operating temperature range suited for various industrial environments. Compliance with key IEC standards guarantees product reliability.
230V AC supply with 8A relay output supports varied application loads.
Crouzet Millenium 3 Logic Modules are ideal for industrial, manufacturing, HVAC, water treatment, and process control applications where reliable and configurable automation control is required. Explore additional Crouzet automation products in the EnvMart industrial automation category for enhanced system solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features 12 digital inputs and 8 relay outputs, with an output current rating of 8A.
It operates on a supply voltage of 230V AC.
It supports ladder logic programming, allowing for customizable automation control.
The dimensions are 100mm in length, 71.2mm in width, and 68mm in depth.
It functions reliably within a temperature range of -20°C to 55°C.
It includes battery backup to preserve program and data integrity during outages.
It is equipped with two communication ports: Serial and USB, enabling flexible system connectivity.
It complies with IEC standards including EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, and EN 61131-2.
This model is designed for DIN rail mounting, suitable for control panels with limited space.
It has two communication ports for enhanced connectivity.
It has a program capacity of 368 bits, allowing for complex automation tasks.
It is ideal for applications in industrial automation, manufacturing, HVAC, water treatment, and process control.
