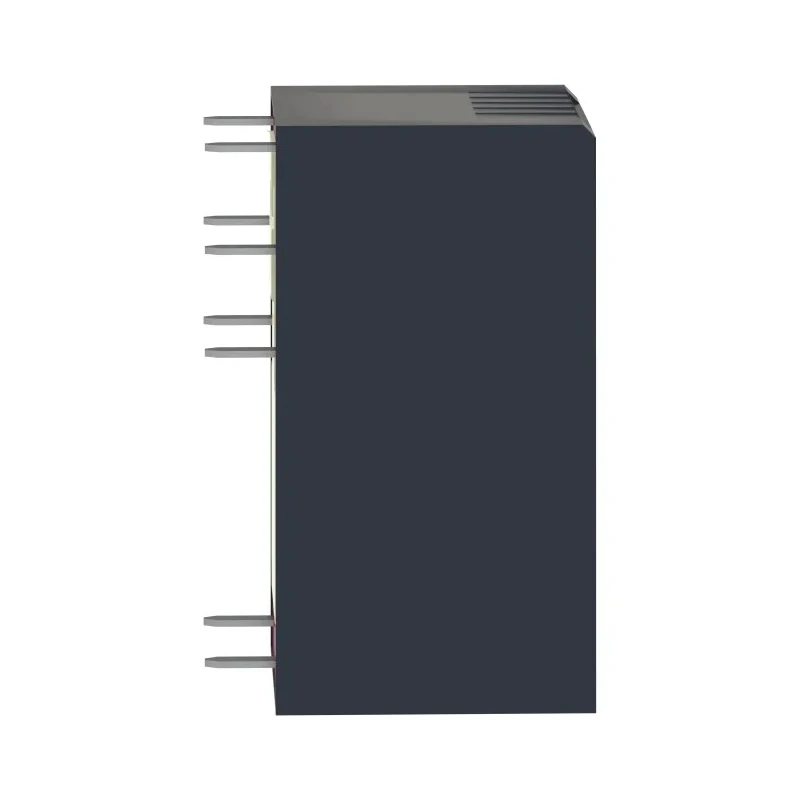

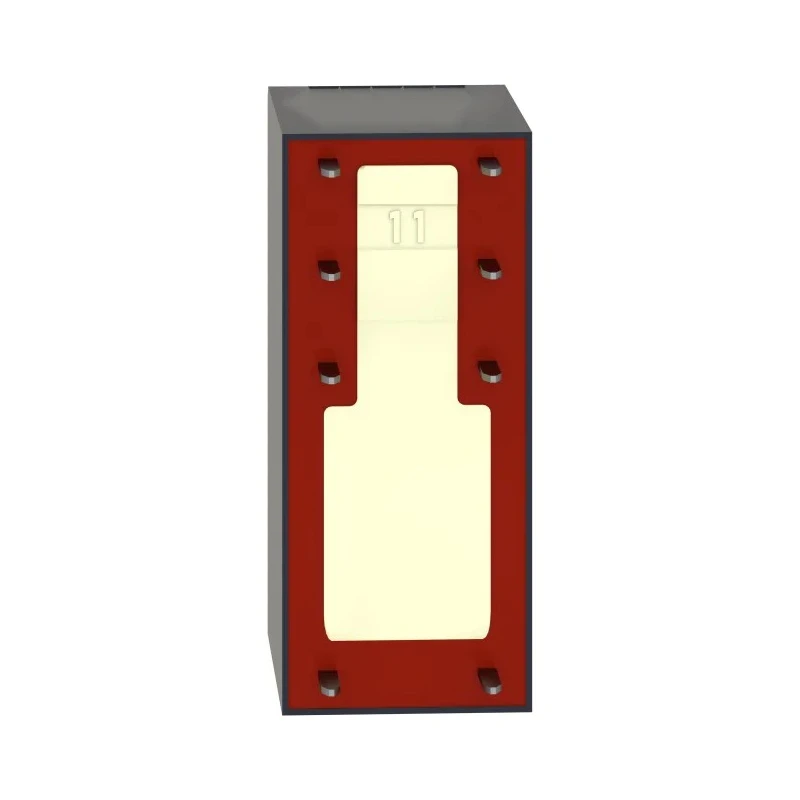

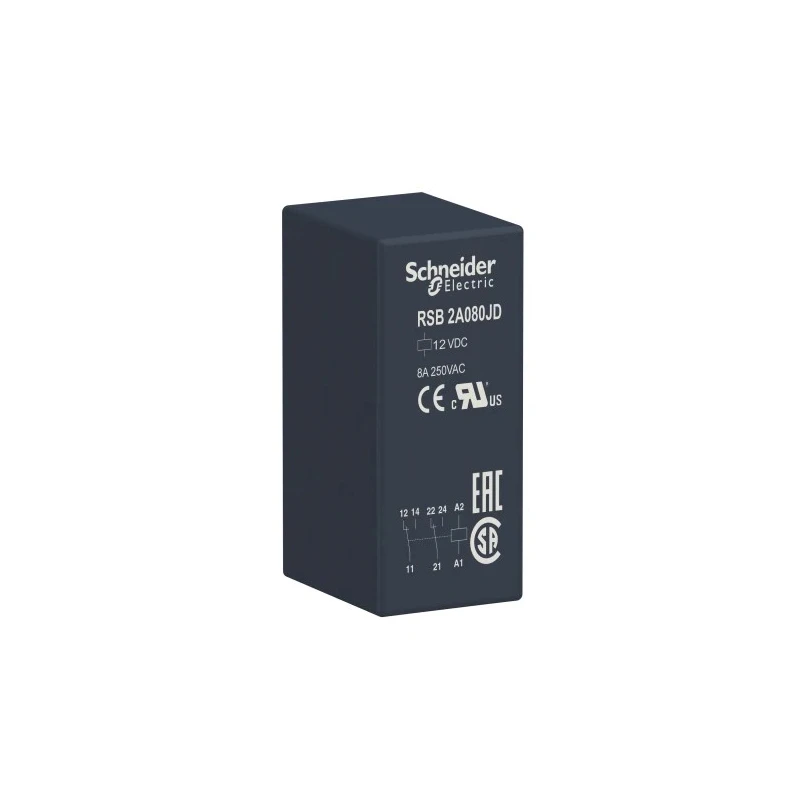

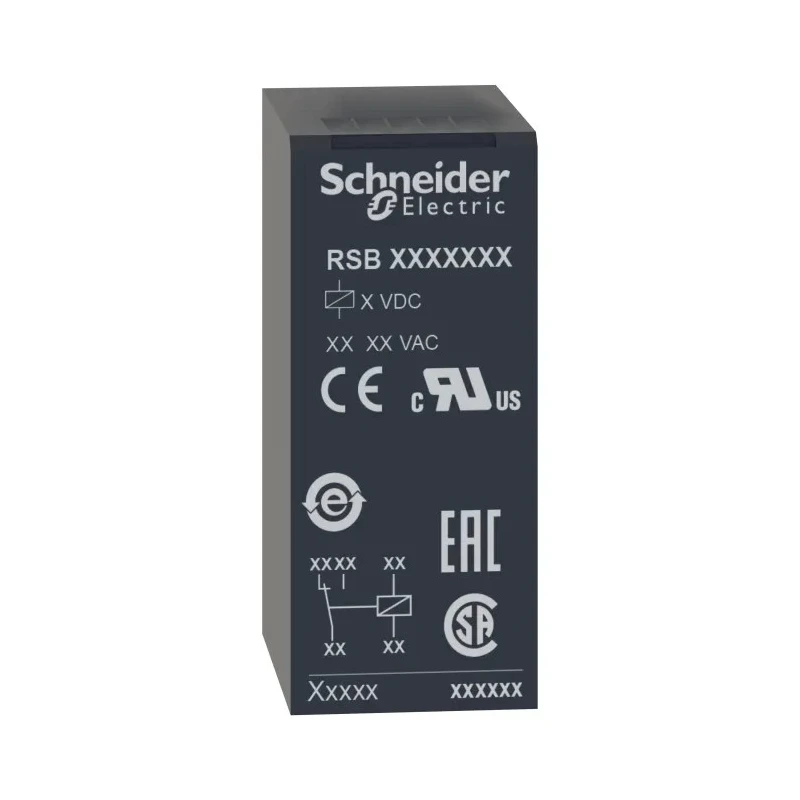

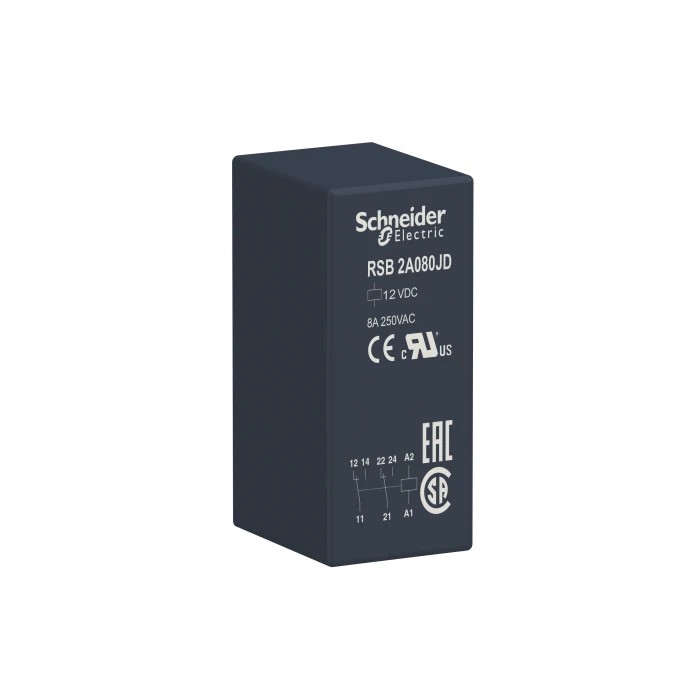

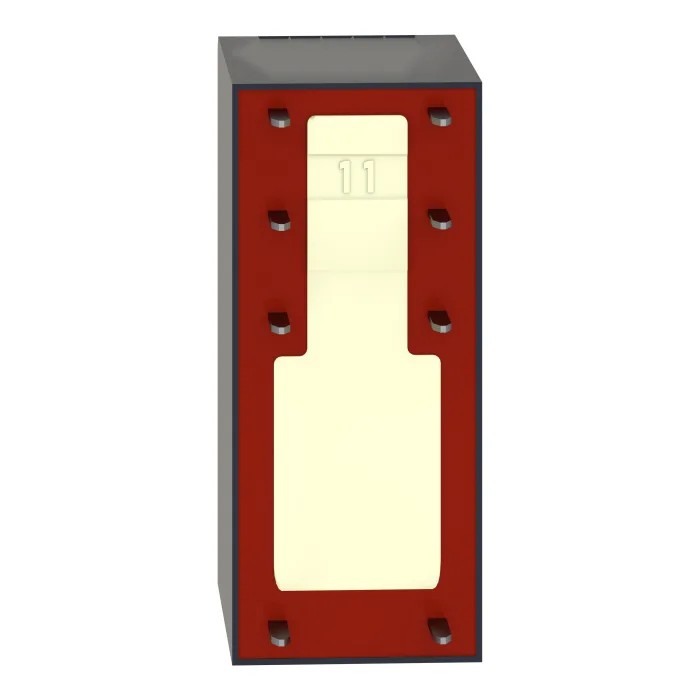

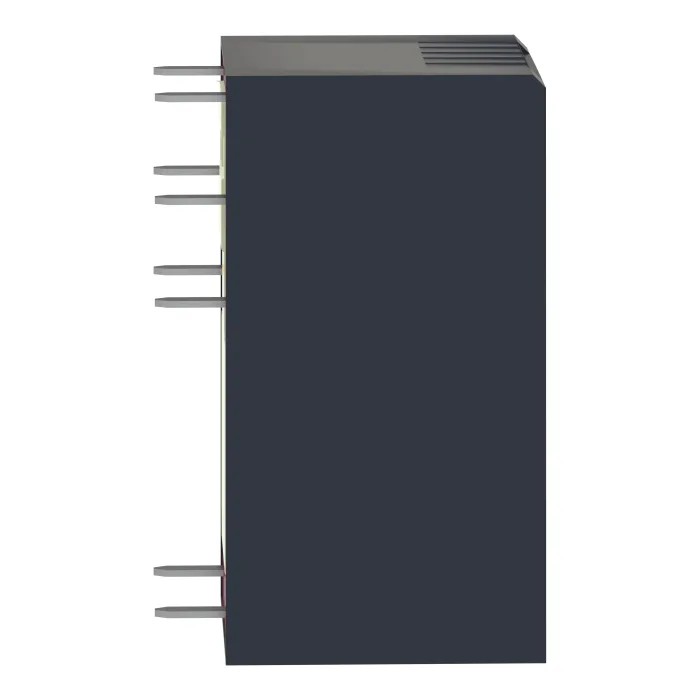

Schneider Electric PCB Power Relay 12V DC Coil, 8A Switching Current, DPDT RSB2A080JD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 15.7mm |
| Length | 29mm |
| Model | RSB2A080JD |
| Width | 12.5mm |
| Mount Type | PCB |
| Series | Harmony Relay RSB |
| Contact Configuration | DPDT |
| Switching Current | 8A |
| Terminal type | Through Hole |
| Standards/Approvals | EN, CSA, UL |
| Coil Voltage | 12V dc |
| Better World Claim | Designed for Disassembly |
Key Features
- Designed for PCB mounting with through-hole terminals.
- Part of the Harmony Relay RSB series with reliable performance.
- Transparent cover for visual contact status inspection.
- Operates between -40 to 70 °C ambient temperature.
- Complies with EN, CSA, and UL standards for safety.
- Silver alloy (Ag/Ni) contacts enhance conductivity and lifespan.
- Better World product designed for disassembly and sustainability.
- Features 2 changeover contacts (DPDT) for versatile switching.
Product Description
Schneider Electric RSB2A080JD PCB Power Relay is a high-quality interface relay from the Harmony RSB series, intended for industrial and electrical applications requiring reliable switching performance. It operates with a 12V direct current coil and supports a switching current of 8 amps. The double pole double throw (DPDT) contact configuration allows for versatile control circuit design, making it suitable for numerous automation and control uses.
This relay is designed for through-hole PCB mounting, which ensures easy installation and maintenance. The compact size of 29 mm length, 15.7 mm height, and 12.5 mm width makes it ideal for installation in small enclosures, helping to reduce equipment footprint and improve machine design efficiency.
It features a transparent cover that allows operators to visually inspect the contact status, improving troubleshooting and safety during operation. The relay contacts are made of silver alloy (Ag/Ni), providing excellent conductivity and durability over extended use.
Engineered for demanding environments, this relay supports an operating temperature range from -40 to 70 °C and complies with industry standards including EN, CSA, and UL. These approvals attest to its safety and reliability in various industrial, manufacturing, and electrical automation settings.
The product is part of Schneider Electric's Better World program and is designed for disassembly, promoting sustainability by facilitating recycling and reducing environmental impact.
Designed for PCB mounting with through-hole terminals. Double pole double throw contact configuration. 12V DC coil voltage for standard control circuits. Compact size and transparent cover enable easy inspection. Operating temperature range from -40 to 70 °C.
Compliant with EN, CSA, UL safety standards. Silver alloy contacts for reliable switching. Better World sustainable design for disassembly.
This relay is ideal for electrical, automation, and industrial applications requiring dependable switching mechanisms with compact size and clear visual status. Visit EnvMart categories to explore more Schneider Electric relays and Power Relay solutions designed for robust industrial use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage for this model is 12V DC.
This relay supports a maximum switching current of 8 amps.
It features a double pole double throw (DPDT) contact configuration.
The dimensions are 29 mm in length, 15.7 mm in height, and 12.5 mm in width.
It operates within an ambient temperature range of -40 to 70 °C.
This model is designed for PCB mounting with through-hole terminals.
The contacts are made of silver alloy (Ag/Ni), enhancing conductivity and lifespan.
It complies with EN, CSA, and UL standards for safety.
The transparent cover allows for visual inspection of the contact status, aiding in troubleshooting.
Yes, it is part of Schneider Electric's Better World program and is designed for disassembly to promote sustainability.
This relay is part of the Harmony Relay RSB series.
It is suitable for various industrial and electrical applications requiring reliable switching performance.
