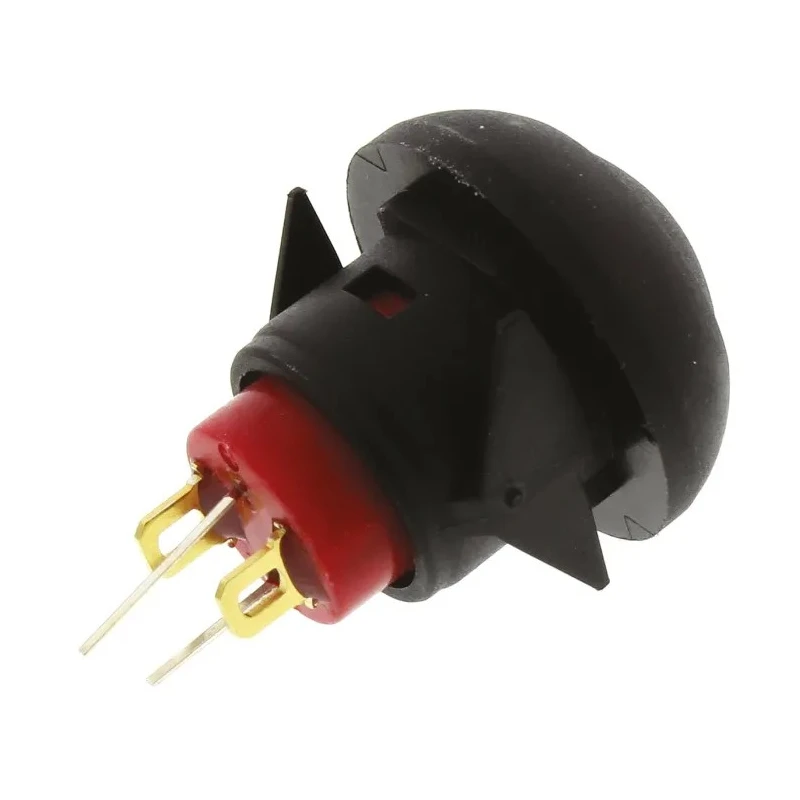

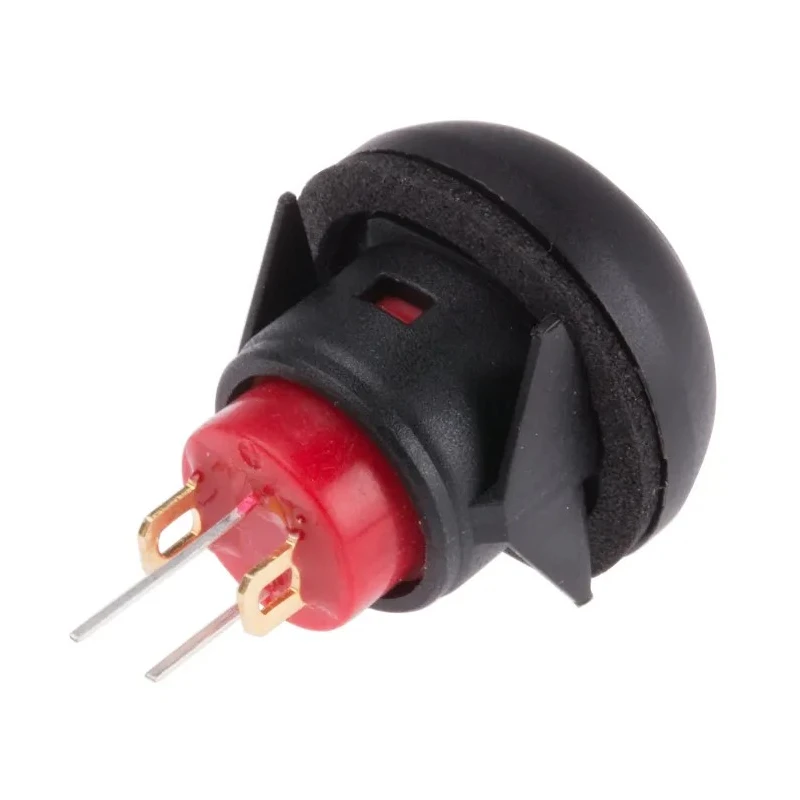

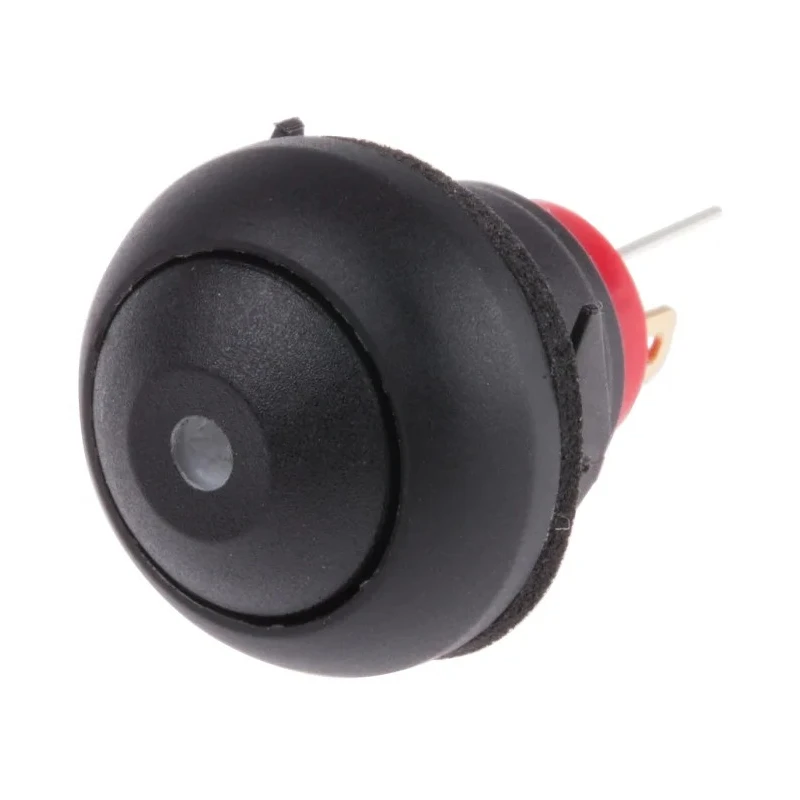

RS PRO Illuminated Miniature Push Button Switch Momentary Panel Mount SPST Yellow LED 13.6 mm Cutout IP67 50V DC 734-6707

Name: RS PRO Illuminated Miniature Push Button Switch Momentary Panel Mount SPST Yellow LED 13.6 mm Cutout IP67 50V DC 734-6707
Brand: RS PRO
SKU: 223048
Price: 611.22 INR
Availability: InStock



Category Push Button Switches Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Model	734-6707
IP Rating	IP67
Mount Type	Panel
Series	RS PRO
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	SPST
Panel Cutout Size	13.6 mm
Terminal type	Solder
Standards/Approvals	Lead-Free, RoHS
LED Colour	Yellow
Switch Operation	Momentary
Actuator Colour	Black
Contact DC Voltage	50V dc
Actuator Style	Cap
Switch Contact Current	400mA
Operating Force	2N - 5N
Mechanical Life	1000000 cycles
Contact AC Voltage	32V ac
Contact Bounce	10 ms
Soldering	350°C maximum for 5 seconds

Key Features

The switch is designed for panel mounting with a cap-style actuator in black color.
It features a single-pole single-throw (SPST) configuration with solder terminal type.
The yellow LED provides center spot illumination with an IP67 rating, ensuring protection against dust and water ingress.
Operates at 50 V DC and 32 V AC with a contact current rating of 400mA.
The switch offers an operating force range of 2N to 5N and mechanical life of 1,000,000 cycles.
It withstands a maximum operating temperature of 85°C and provides 10 ms contact bounce time.
Soldering tolerance is up to 350°C for a maximum of 5 seconds.
The product complies with lead-free and RoHS standards, ensuring environmental safety.

Product Description

RS PRO 734-6707 is a high-quality illuminated miniature push button switch designed for momentary operation in panel-mounted applications. It features a black cap-style actuator and yellow center spot LED illumination, providing clear and visible switch status indication.

This switch is engineered for durability with a mechanical life of one million cycles and an operating force between 2N and 5N, suitable for frequent use in industrial, electrical, automation, and control systems. Its robust construction ensures reliable performance at temperatures up to 85°C.

The switch supports a contact configuration of SPST, operating safely at 50 V DC and 32 V AC, with a contact current rating of 400mA. The IP67 rating guarantees protection against dust and water, making it ideal for demanding environments.

Solder terminals allow easy PCB or wiring connections, withstanding peak soldering temperatures of 350°C for up to 5 seconds. With compliance to lead-free and RoHS directives, this switch meets modern environmental standards.

The switch includes a black cap actuator designed for comfortable pressing. SPST contact configuration ensures simple on/off functionality. Yellow LED illumination enhances visibility under various lighting conditions. IP67 rating provides dust-tight and water-resistant sealing.

High mechanical life supports long-term industrial use. Operating force and contact bounce optimized for reliable switching. Soldering specifications safe for assembly processes. Compliance with environmental regulations.

This RS PRO push button switch is suitable for use in electronics and electrical manufacturing, automation panels, industrial controls, and instrumentation. Its panel mounting design simplifies installation and maintenance.
