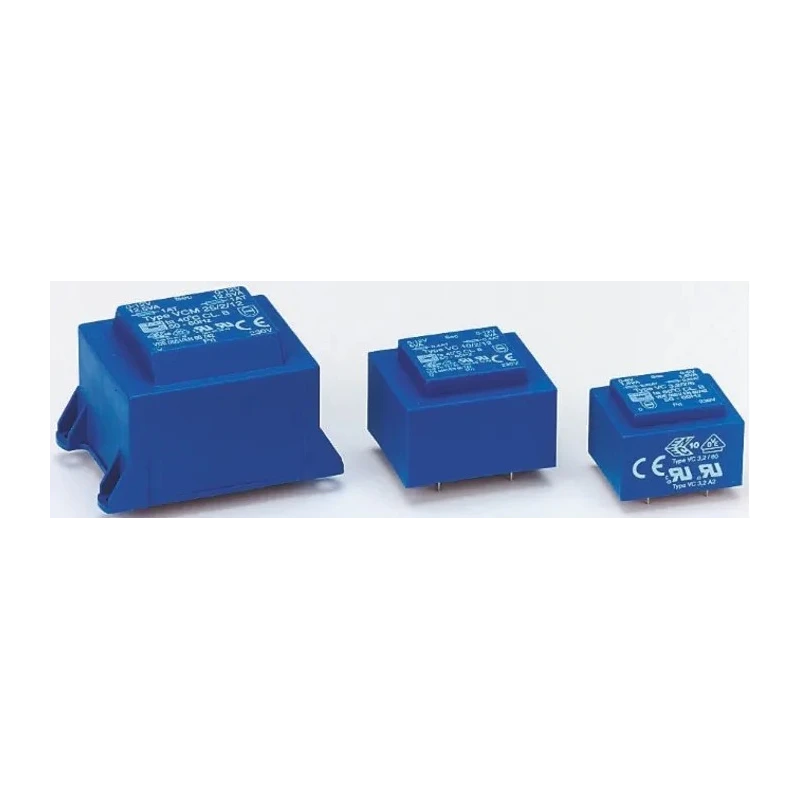

Block PCB Transformer 12 V ac Single Output 50 VA Bracket Mount VCM 50/1/12

Block VCM 50/1/12 is a high-quality PCB transformer designed for electronic applications requiring a single 12 V ac output with a power rating of 50 VA. This transformer is ideal for power supplies and industrial electronics where bracket mounting is preferred for secure installation.

The transformer operates at a standard primary voltage of 230 V ac and supports a frequency range from 50 Hz to 60 Hz. It delivers excellent efficiency at 87%, minimizing energy loss and heat generation while maintaining performance reliability up to an operating temperature of 40°C.

With isolation voltage rated at 5000 V, the transformer ensures user and equipment safety by providing effective electrical insulation. Its compact dimensions of 94mm length by 58.5mm width and depth allow for integration in dense PCB layouts or enclosures.

The VCM 50/1/12 series features vacuum resin molding rated to UL94-V0 flame retardant standards, reducing fire risk and enhancing durability in industrial environments. Its low inter-winding capacitance and reduced radiated noise make it suitable for sensitive electrical circuits.

The unit holds certifications including C-UL-US and ENEC 10 (VDE), ensuring compliance with international safety and performance requirements.

This transformer is manufactured in Germany, reflecting high manufacturing standards and quality assurance. It is widely used in industrial electronics, power supply units, automation control panels, laboratory instruments, and telecommunications equipment.

This PCB transformer features a primary voltage of 230 V ac suitable for standard mains supply. It provides isolation voltage up to 5000 V ensuring electrical safety and insulation. The unit has a compact size with dimensions 94mm (length) x 58.5mm (width) x 58.5mm (depth).

Efficient design offers 87% efficiency with low radiated noise for quiet operation. Maximum operating temperature is rated at 40°C for reliable performance in typical environments. Operating frequency range is 50 Hz minimum to 60 Hz maximum, compatible with common power systems.

Mount type is bracket for secure and easy PCB installation. Certified to C-UL-US and ENEC 10 (VDE) standards ensuring regulatory compliance. Vacuum resin moulded with UL94-V0 rating for flame retardance and durability. Manufactured in Germany highlighting quality craftsmanship and reliability.
