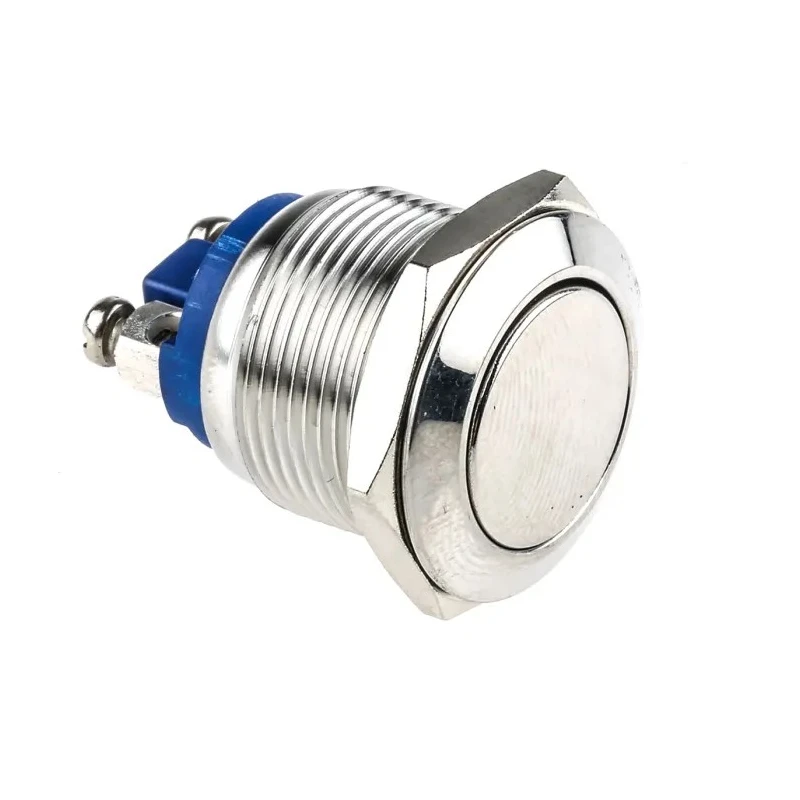

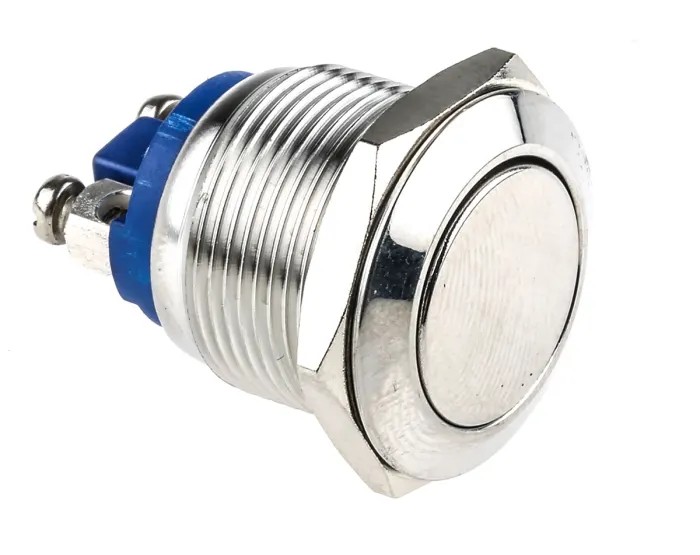

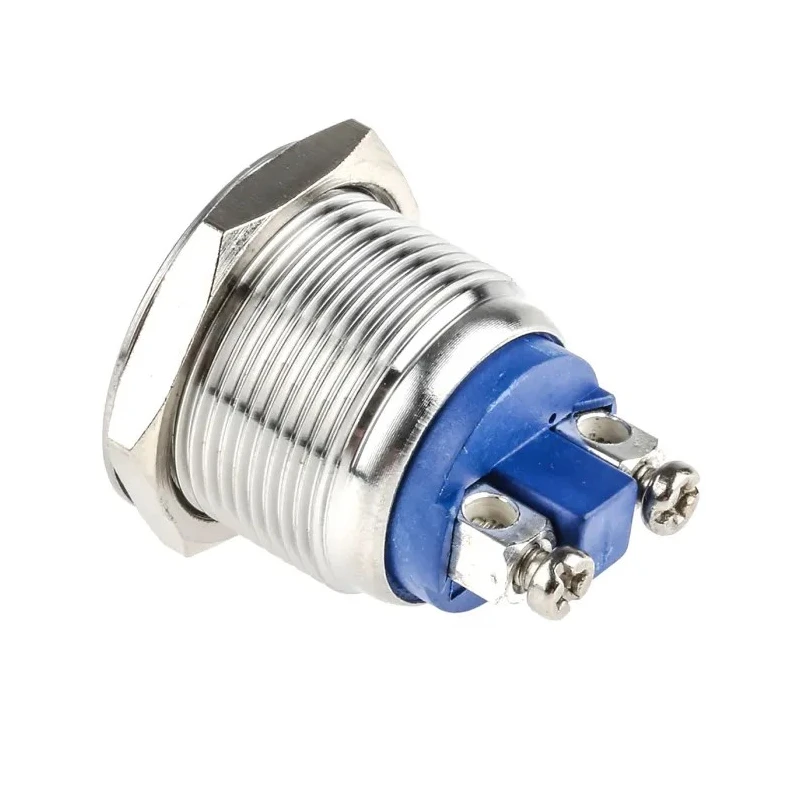

EOZ Push Button Switch Momentary Panel Mount 19.2 mm Cutout SPST IP65 36V dc 250V ac R19FFSSTAG

EOZ R19FFSSTAG is a high-quality push button momentary switch designed for panel mounting with a 19.2 mm cutout. It offers robust performance with a SPST contact configuration and durable silver actuator button. Rated IP65, this switch withstands dust ingress and water jets, making it ideal for industrial, factory, access control, and public applications where reliability and vandal resistance are essential.

The switch features a stainless steel construction that resists corrosion, heat, and chemical damage, making it highly durable for harsh environments. It is shock resistant to IK09 standards, equivalent to a 10-joule impact resistance, suitable for exposed areas like ticket machines, kiosks, and vending machines. Non-illuminated and momentary in operation, it makes electrical contact only while the button is pressed and returns to off when released.

With operating temperature range between -20°C to 55°C, this EOZ push button switch is suited for a variety of indoor and outdoor industrial applications. The screw terminals ensure secure and easy wiring installation. This product meets RoHS compliance, emphasizing its adherence to environmental regulations.

The actuator color is silver, enhancing visual identification and aesthetic integration. Momentary switch operation allows for applications requiring temporary contact engagement. Panel mount design accommodates a 19.2 mm cutout for standard industrial panels.

IP65 rating provides dust-tight and water jet protection for tough environments. Rated for 2A switch contact current with contact voltages of 36 V dc and 250 V ac. Shock resistant to IK09 to prevent damage from physical impacts.

Suitable for manufacturing, access control, machinery, and equipment control. Non-illuminated design ensures simplicity and reliability where lighting is not necessary.

This EOZ push button switch is ideal for industrial, manufacturing, automation, and public access control applications where durability and reliability are non-negotiable. Its robust design and high protection ratings make it an excellent choice in exposed and vandal-prone environments.
