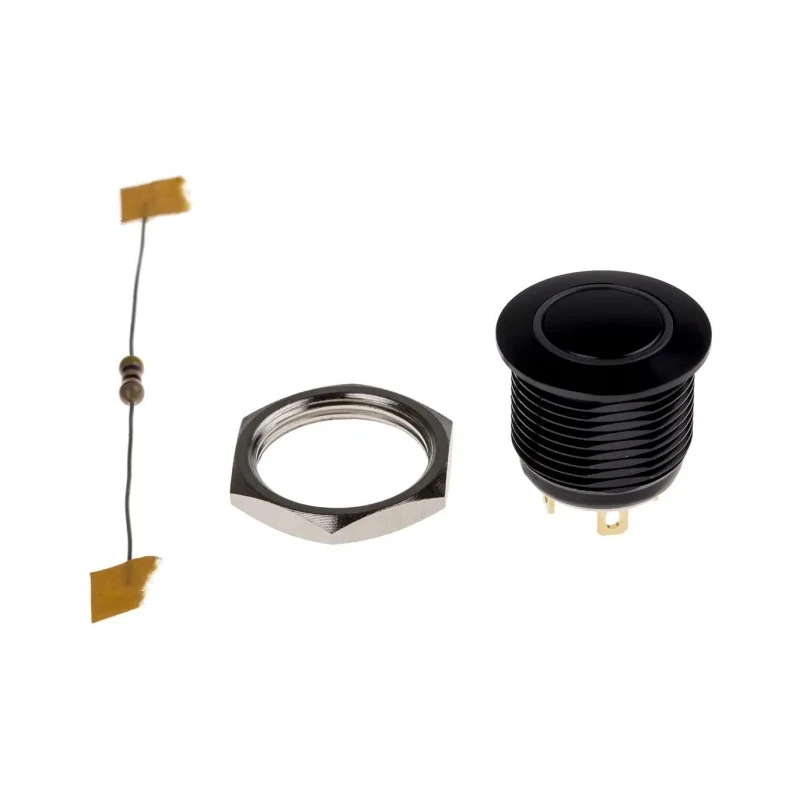

KNITTER-SWITCH MAV Series Illuminated Vandal Proof Momentary Push Button Switch, Panel Mount, 16 mm MAV16CBRE-6-JR-12V
Specifications
| Country of Origin | India |
|---|---|
| Brand | KNITTER-SWITCH |
| Model | MAV16CBRE-6-JR-12V |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | MAV |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | SPST |
| Switch Configuration | On-Off |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 16 mm |
| Terminal type | Solder Lug |
| Standards/Approvals | UL 94 V-0, UL 94 V-2 |
| LED Colour | Green |
| Switch Operation | Momentary |
| Contact DC Voltage | 36V dc |
| Actuator Style | Round |
| Switch Contact Current | 2A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch operates as momentary with SPST contact configuration.
- Equipped with IP67 protection rating for durability in harsh environments.
- Incorporates a round actuator style with solder lug terminals.
- Supports contact voltages of up to 36V DC and 250V AC with a 2A current rating.
- Features gold flash over silver contacts to ensure reliable performance.
- Operating temperature ranges from -20°C to 120°C, suitable for wide industrial applications.
- Panel mounting type ensures stable installation and functionality.
- Conforms to UL 94 V-0 and UL 94 V-2 safety standards for robustness and flame retardance.
Product Description
KNITTER-SWITCH MAV16CBRE-6-JR-12V is an illuminated vandal proof push button switch designed for momentary operation in panel mounting applications. Featuring a durable aluminium round button and a black case, this switch is suitable for harsh environments with an IP67 protection rating. The device includes a green LED operated at 12V DC with an inbuilt resistor, providing clear visual indication of switch status.
This switch supports a panel cutout diameter of 16 mm and offers a single pole single throw (SPST) on-off configuration. The contact ratings are specified at 36V DC and 250V AC with a current capacity of 2 amperes. Terminals employ solder lugs facilitating secure electrical connections.
The gold flash over silver contacts improve reliability and minimize contact resistance over extended use. The actuator's ring-shaped lens style enhances visibility and tactile feedback. Its rated operating temperature limits from -20°C to 120°C make it suitable for various industrial, electrical, automation, and control systems.
Conforming to UL 94 V-0 and V-2 standards ensures flame retardancy and enhanced safety. Typical applications include industrial control panels, machinery interface panels, automation systems, and other environments demanding robust vandal resistant controls.
The switch operates as momentary with SPST contact configuration. Incorporates a green LED with 12V DC resistor as illumination. Protected by IP67 rating for ingress protection against dust and water. Constructed with aluminium button and black casing for durability.
Gold flash over silver contact ensures reliable electrical performance. Operates within an ambient temperature range of -20°C to 120°C. Panel mount type design for easy installation in control panels. Meets UL 94 V-0, V-2 standards for flame retardance and safety.
This MAV Series push button switch from KNITTER-SWITCH is ideal for rigorous industrial and electrical applications requiring a reliable, illuminated, vandal resistant momentary switch with clear indication and robust construction. Explore more Push Button Switches and electrical components in the Electronics & Electricals category at EnvMart for diverse industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 120°C.
This switch has an IP67 rating, providing protection against dust and water ingress.
It features a single pole single throw (SPST) contact configuration for on-off operation.
The switch supports contact voltages of up to 36V DC and 250V AC.
This push button switch has a current rating of 2 amperes.
It employs solder lug terminals for secure electrical connections.
The required panel cutout size for installation is 16 mm.
The switch includes a green LED that operates at 12V DC with an inbuilt resistor for illumination.
The minimum operating temperature for this switch is -20°C.
It conforms to UL 94 V-0 and UL 94 V-2 safety standards for flame retardance.
The actuator style is round, providing a tactile feedback for operation.
This model is typically used in industrial control panels, machinery interface panels, and automation systems.
