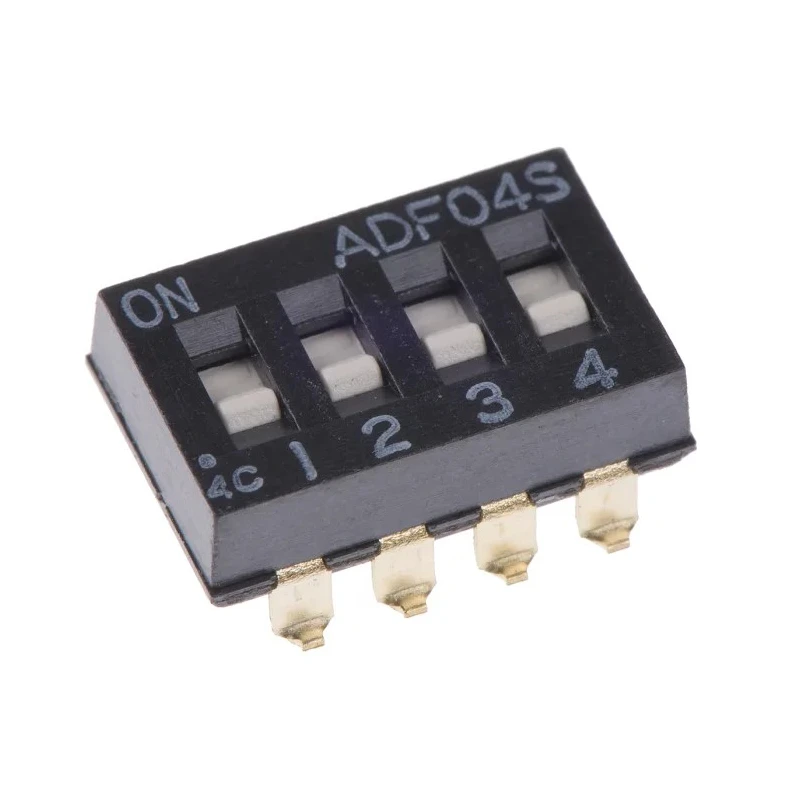

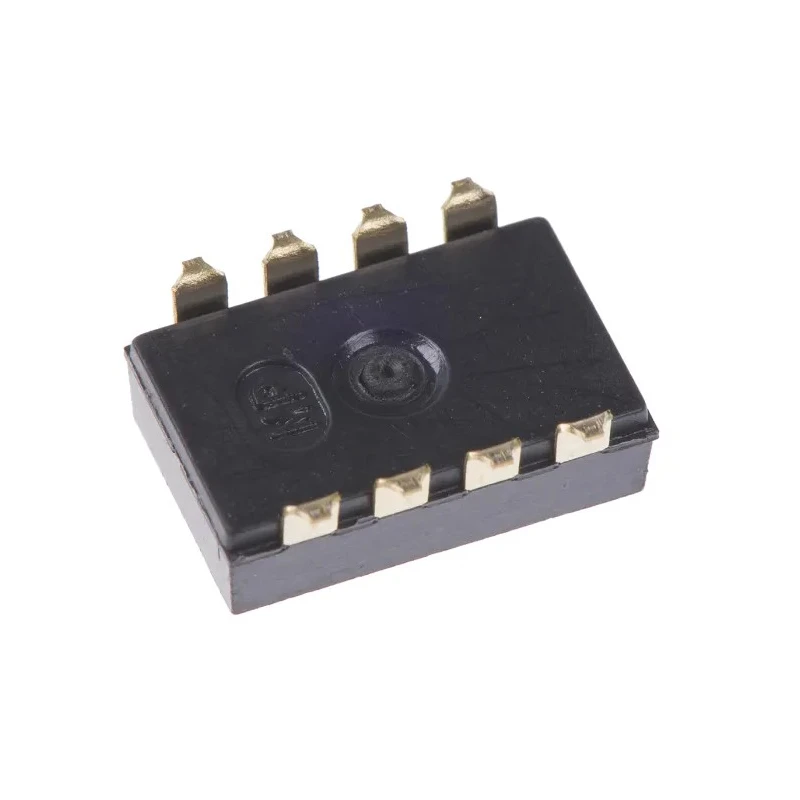

TE Connectivity Slide Rotary Coded DIP Switch Surface Mount ADF04S04
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | ADF04S04 |
| Mount Type | Surface Mount |
| Actuator Type | Slide |
| Insulation resistance | 1000 MΩ @100 Vdc |
| Contact Resistance | 50mΩ |
| Mechanical Life | 1000 cycles |
Key Features
- The switch features a flush actuator slide type for precise control.
- It is designed for surface mount applications with dual-in-line package.
- Contact resistance is low at 50 milliohms, ensuring reliable conductivity.
- Insulation resistance is high at 1000 megaohms at 100 Vdc for safety.
- The mechanical life of the switch supports up to 1000 cycles.
- The design withstands high pressure wiping contact suitable for aqueous or solvent cleaning without tape seal.
- The switch can endure vapor phase reflow and wave soldering conditions.
Product Description
TE Connectivity ADF04S04 Slide Rotary Coded DIP Switch Surface Mount provides robust and reliable switching performance in compact electronic applications. Featuring a flush actuator slide type, this switch allows precise user control in surface mount installations commonly used on PCBs and electronic assemblies.
The high pressure wiping contact design enables thorough cleaning with aqueous or solvent solutions without the need for a tape seal, increasing maintenance convenience in industrial settings. This DIP switch supports vapor phase reflow and wave soldering processes, ensuring durability during manufacturing.
Key technical properties include a low contact resistance of 50 milliohms for efficient electrical conduction and an insulation resistance rating of 1000 megaohms at 100 volts DC, contributing to safety and stability in electrical circuits. The mechanical life cycle rating of 1000 operations guarantees sustained switching reliability.
Ideal for use in industrial automation, electrical equipment, instrumentation, and control panels, this Rotary Coded DIP Switch is suited for industries demanding precise switching components with long-term durability. Its surface mount configuration simplifies integration into modern electronics manufacturing processes.
The switch features a flush actuator slide type for precise control. It is designed for surface mount applications with dual-in-line package. Contact resistance is low at 50 milliohms, ensuring reliable conductivity. Insulation resistance is high at 1000 megaohms at 100 Vdc for safety.
The mechanical life of the switch supports up to 1000 cycles. The design withstands high pressure wiping contact suitable for aqueous or solvent cleaning without tape seal. The switch can endure vapor phase reflow and wave soldering conditions.
Discover a wide range of electronic switches and components by browsing the Electronics & Electricals category at EnvMart for your specific application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The insulation resistance of the TE Connectivity ADF04S04 is rated at 1000 megaohms at 100 Vdc, ensuring safety in electrical circuits.
This model supports a mechanical life of up to 1000 cycles, providing sustained switching reliability.
The contact resistance is low at 50 milliohms, ensuring reliable conductivity in electrical applications.
It features a slide actuator type, allowing for precise control in surface mount applications.
Yes, the design of this switch withstands high pressure wiping contact, making it suitable for aqueous or solvent cleaning without the need for a tape seal.
The ADF04S04 is designed for surface mount applications, making it suitable for integration into PCBs and electronic assemblies.
Yes, it is designed to endure both vapor phase reflow and wave soldering conditions, ensuring durability during manufacturing processes.
The country of origin for the TE Connectivity ADF04S04 is India.
This switch is ideal for use in industrial automation, electrical equipment, instrumentation, and control panels.
Key features include a flush actuator slide type, low contact resistance, high insulation resistance, and a mechanical life of 1000 cycles.
The low contact resistance of 50 milliohms contributes to efficient electrical conduction, enhancing the overall performance of the switch.
The high pressure wiping contact design allows for thorough cleaning with aqueous or solvent solutions, increasing maintenance convenience in industrial settings.
