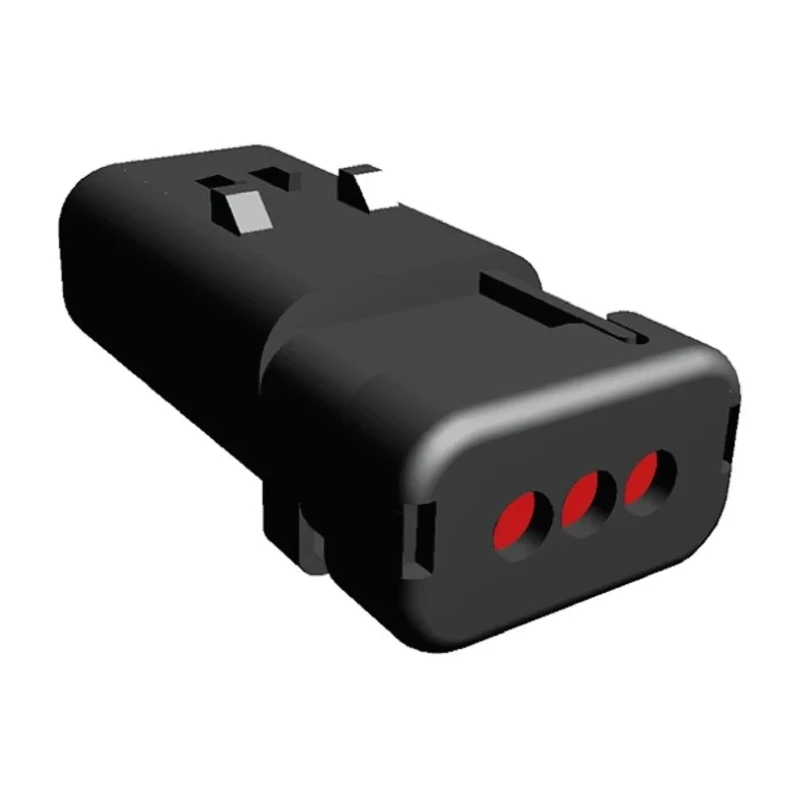

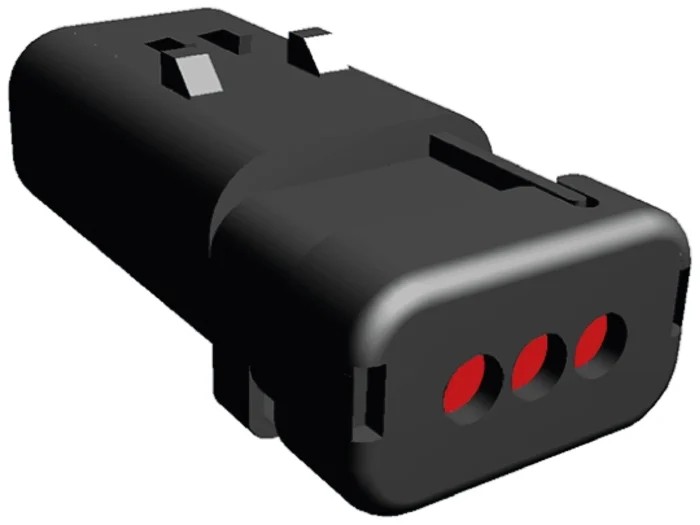

TE Connectivity AMPSEAL 16 Automotive Connector Male Red Clip 3 Way Crimp Termination 776535-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| Current | 13A |
| Height | 19.15mm |
| Model | 776535-1 |
| Depth | 47.55mm |
| IP Rating | IP67 |
| Width | 24.1mm |
| Gender | Male |
| Mount Type | Clip |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Series | AMPSEAL 16 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Sub Type | Automotive Connector Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Standards/Approvals | EU ELV, EU RoHS |
| Number of Contacts | 3 |
Key Features
- Male 3-way automotive connector designed for crimp termination.
- Red clip with AMPSEAL 16 series providing secure and sealed connection.
- Supports 13A current with fiberglass reinforced polybutylene terephthalate housing.
- Rated for -40°C to 125°C operating temperature with IP67 ingress protection.
- Features a clip mount type with 1 row and 3 contacts.
- Meets EU ELV and EU RoHS standards for quality and safety.
- Specifically engineered for automotive electrical applications requiring durability and sealing.
Product Description
TE Connectivity 776535-1 is a male automotive connector from the AMPSEAL 16 series, featuring a 3-way crimp termination and a red clip for positive locking. It provides reliable sealed electrical connections suitable for harsh automotive environments.
The connector housing is made from fiberglass reinforced polybutylene terephthalate, ensuring mechanical robustness and chemical resistance. It supports a current rating of 13A and operates within a temperature range of -40°C to 125°C, ensuring performance stability in extreme conditions.
Its IP67 certification guarantees protection against dust and immersion in water, ideal for automotive and industrial applications requiring secure environmental sealing.
The connector is designed with a clip mount type and includes 3 contacts arranged in a single row. The AMPSEAL 16 series employs colour coding and physical keying to prevent mismating, enhancing reliability in complex wiring assemblies.
It complies with European standards including EU ELV and EU RoHS, affirming its quality and environmental safety. Typical use cases include automotive electrical harnesses, industrial machinery interfaces, and other equipment requiring sealed multi-contact connectors for harsh environments.
Male 3-way automotive connector designed for crimp termination. Red clip with AMPSEAL 16 series providing secure and sealed connection. Supports 13A current with fiberglass reinforced polybutylene terephthalate housing. Rated for -40°C to 125°C operating temperature with IP67 ingress protection.
Features a clip mount type with 1 row and 3 contacts. Meets EU ELV and EU RoHS standards for quality and safety. Compact dimensions: 47.55mm depth, 24.1mm width, and 19.15mm height. Specifically engineered for automotive electrical applications requiring durability and sealing.
Explore our extensive range of Automotive Connectors and trusted brands at EnvMart for your industrial and commercial electrical projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 13A, making it suitable for various automotive electrical applications.
The connector operates within a temperature range of -40°C to 125°C, ensuring stability in extreme conditions.
It features a crimp termination type, which is designed for secure connections in automotive applications.
This model has an IP67 rating, providing protection against dust and immersion in water.
It includes 3 contacts arranged in a single row, facilitating multi-contact connections.
The housing is made from fiberglass reinforced polybutylene terephthalate, ensuring mechanical robustness and chemical resistance.
It features a clip mount type, allowing for easy installation and secure attachment.
It meets EU ELV and EU RoHS standards, affirming its quality and environmental safety.
The dimensions are 47.55mm in depth, 24.1mm in width, and 19.15mm in height.
Yes, it is specifically engineered for automotive electrical applications requiring durability and sealing in harsh environments.
The connector features a red clip, which is part of the AMPSEAL 16 series design for positive locking.
The country of origin for this connector is India.
