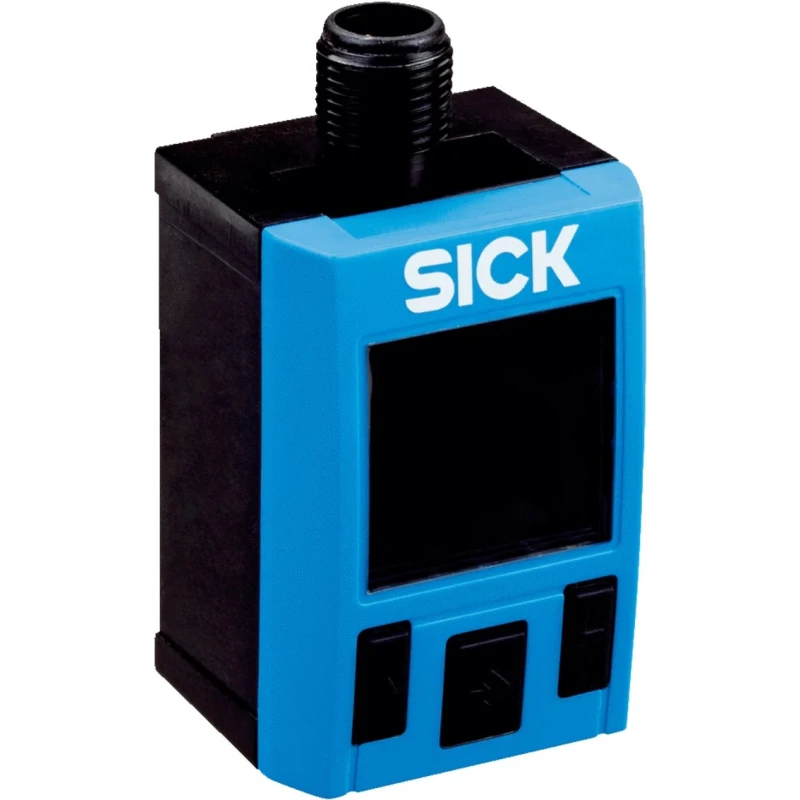

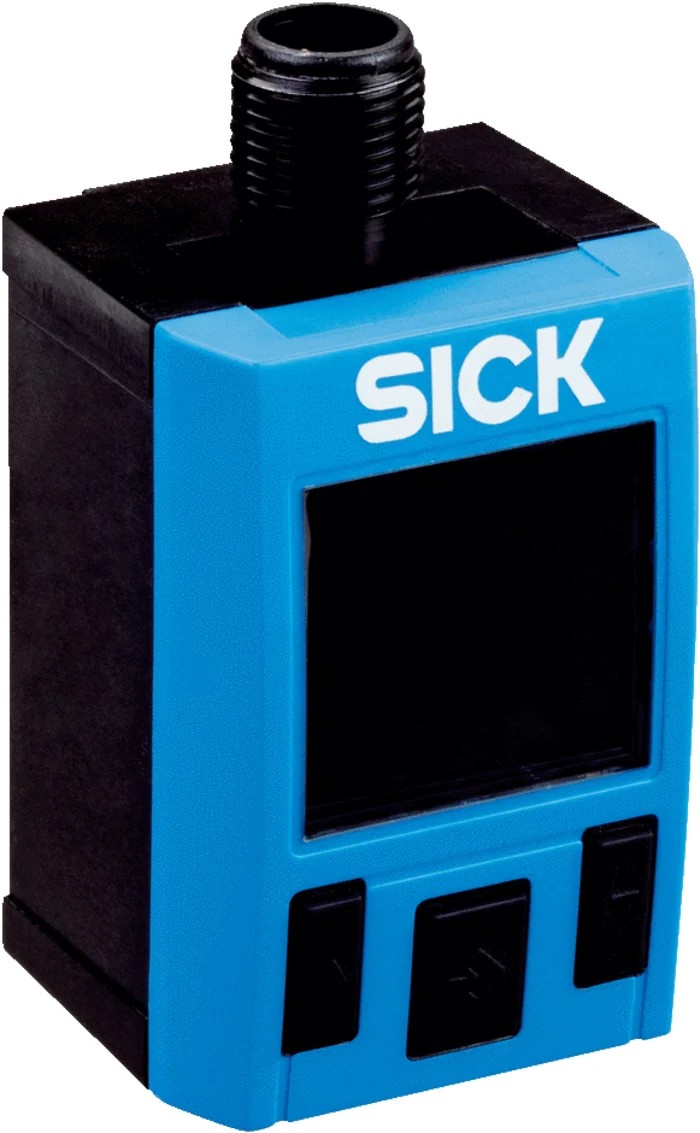

SICK Pressure Switch Gauge Pressure -1 bar to 1 bar, 30V DC, 40mA, IP65/IP67 PAC50-BCA PAC50-BCA / 1062964
Specifications
| Country of Origin | Thailand |
|---|---|
| Voltage | 30V dc |
| Brand | SICK |
| Maximum Operating Pressure | 1 bar |
| Current | 40mA |
| Height | 63mm |
| Model | PAC50-BCA / 1062964 |
| Depth | 35mm |
| IP Rating | IP65, IP67 |
| Width | 35mm |
| Mount Type | DIN Rail |
| Series | PAC50-BCA |
| Maximum Operating Temperature | 60°C |
| Pressure Type | Gauge Pressure |
| Switch output | NPN, 2 x PNP, Push Pull |
| Port Size | 4 mm |
| Minimum Operating Temperature | 0°C |
| Analogue Output | 4 to 20 mA, 0 to 10 V dc |
| Connection Thread Standard | DIN ISO 16030 |
| Minimum Operating Pressure | -1bar |
| Port Gender | Female |
| Suitable Medias | Air, Gas |
Key Features
- Large bi-color display indicates output status clearly.
- Supports two independently programmable switching outputs plus optional analog output.
- Durable DIN rail mounting with waterproof housing for industrial environments.
- Compatible with air and gas media under gauge pressure type.
- Advanced display and intuitive menu navigation ensure easy commissioning.
- Flexible installation with pressure connections on back and bottom.
- Optional IO-Link interface for fast parameter transfer and reduced downtime.
- Suitable for compressed-air monitoring, vacuum control, and leakage detection.
Product Description
SICK PAC50-BCA Pressure Switch is a high-precision instrument designed for gauge pressure measurement ranging from -1 bar (vacuum) up to 1 bar (overpressure). Operating at 30V DC with a maximum current of 40mA, it is engineered for reliable performance in industrial pneumatic and vacuum applications. The device supports air and gas media and features a rugged waterproof enclosure rated IP65 and IP67 for harsh environments.
The large bi-color display (green/red) provides immediate visual feedback on output signal status, enabling efficient system monitoring. Operation is simplified by three large function keys and an intuitive menu structure for quick commissioning. The PAC50-BCA is versatile, combining two independently programmable switching outputs (NPN and Push Pull type) along with optional analog outputs (4 to 20 mA or 0 to 10 V DC) to integrate smoothly with various control systems.
Mounting is flexible via DIN rail, wall, or switch panel installation. Pressure connections are available on both the back and bottom for installation convenience. The optional IO-Link capability permits rapid digital communication to transfer device parameters to controllers or PLCs, reducing downtime during sensor replacement or format changes.
The robust design fulfills numerous standards including CRUus certificate, EMC directive 2004/108/EC, EN 61326-2-3, and RoHS compliance, ensuring safety and quality. Typical industrial use cases include monitoring compressed air in machines and systems, pressure measurement in pneumatic circuits, vacuum monitoring in robotics and handling applications, and leakage detection in closed compressed air systems.
Compact dimensions measure 63mm in height, 35mm width, and 35mm depth, making the device compact yet highly functional. The device is manufactured in Thailand, providing reliable quality standards.
Large bi-color display with output status indication. Two programmable digital switching outputs and optional analog output. Durable IP65/IP67 waterproof housing for industrial use. Flexible mounting options including DIN rail and panel.
Supports air and gas media for gauge pressure. Optional IO-Link for easy integration and configuration. Complies with multiple international standards and certifications. Compact size for space-saving installation. Ideal for compressed air monitoring, vacuum applications, and leakage detection.
Explore more reliable industrial Pressure Switch solutions from SICK on EnvMart for superior pneumatic and hydraulic system control.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model measures gauge pressure from -1 bar (vacuum) to 1 bar (overpressure).
It is compatible with air and gas media under gauge pressure type.
It operates at 30V DC with a maximum current of 40mA.
The device has compact dimensions of 63mm in height, 35mm in width, and 35mm in depth.
It has an IP rating of IP65 and IP67, indicating its waterproof capabilities for industrial environments.
It can be mounted on DIN rail, wall, or switch panel, providing flexible installation options.
It supports two independently programmable switching outputs, including NPN and Push Pull types.
The PAC50-BCA offers optional analog outputs of 4 to 20 mA or 0 to 10 V DC.
The device operates within a temperature range of 0°C to 60°C.
It uses the DIN ISO 16030 connection thread standard.
This pressure switch is manufactured in Thailand.
It is suitable for applications such as compressed air monitoring, vacuum control, and leakage detection.
