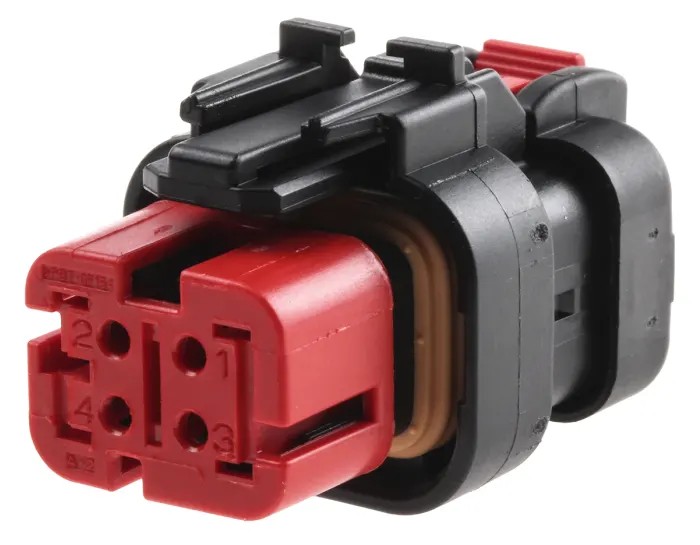

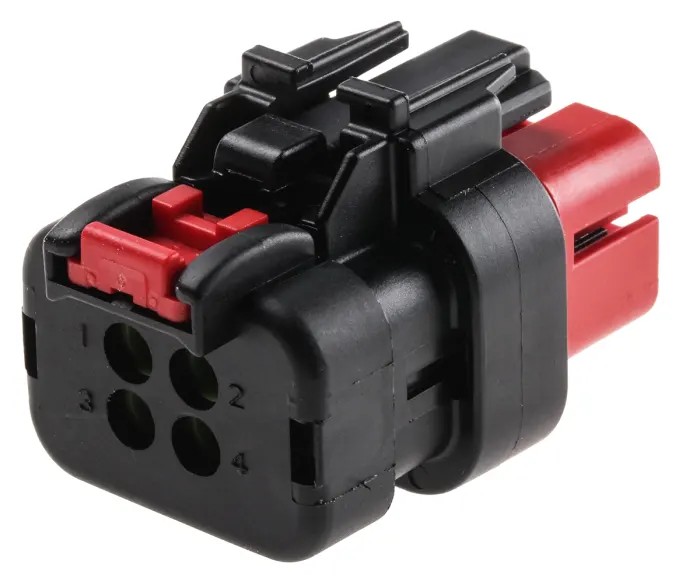

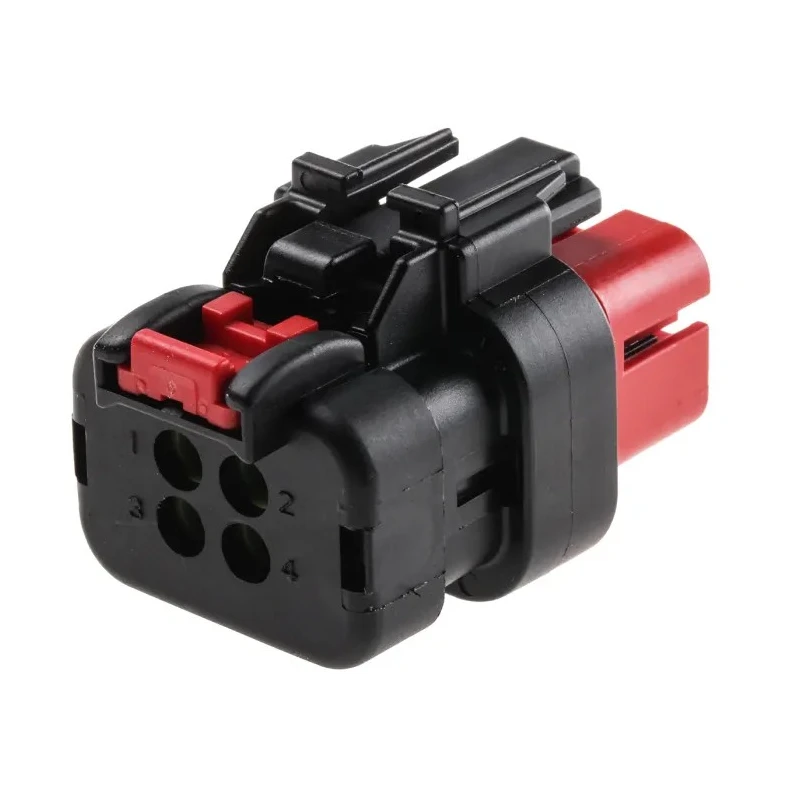

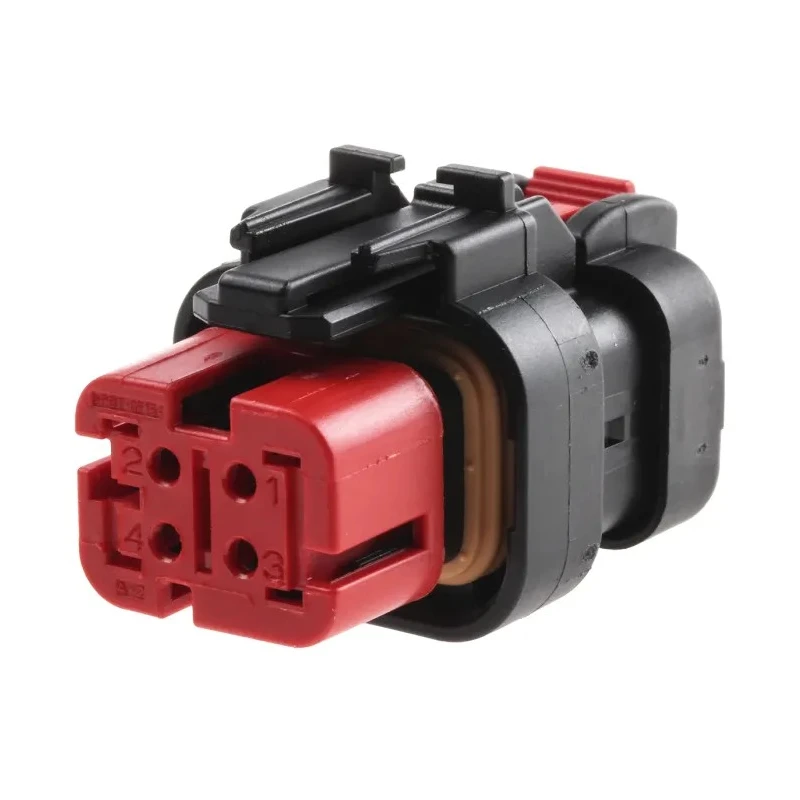

TE Connectivity AMPSEAL 16 Automotive Connector Female Red Cable 4 Way Crimp Termination 776487-1

TE Connectivity 776487-1 is a female automotive connector from the AMPSEAL 16 series, designed for cable-to-cable and wire-to-device connections in demanding environments. The connector features a 4-contact design with crimp termination, providing secure and reliable electrical connections rated for 13 amps per contact.

Constructed from fiberglass reinforced polybutylene terephthalate (PBT), this connector offers high resistance to mechanical stresses and environmental factors. It operates effectively in temperatures ranging from -40°C to 125°C, making it suitable for automotive, off-road, heavy duty industrial, agricultural, and recreational vehicle applications.

The housing is color-coded red and includes a standard diameter wire seal to prevent contamination and moisture ingress, achieving an IP67 protection rating. The design incorporates an integrated latch with a connector position assurance (CPA) mechanism for secure mating and prevention of accidental disconnections.

Dimensions are compact with a width of 25.33 mm, height of 26.8 mm, and depth of 39.95 mm, optimized for tight wire harnesses. The cable exit angle is 180°, enabling flexible installation in various configurations. This connector series is recognized for its robust performance and compliance with EU RoHS and ELV standards.

Features a 4-contact female design suitable for cable connections. Crimp termination provides a secure and durable electrical connection. Rated for a current capacity of up to 13 amps each contact. Constructed from fiberglass reinforced polybutylene terephthalate housing material.

Operating temperature range from -40°C to 125°C ensures high performance in harsh environments. IP67 rated housing provides excellent protection against dust and water ingress. Compact dimensions with 25.33mm width, 26.8mm height, and 39.95mm depth for space-efficient installations.

180° cable exit angle accommodates various wiring layouts. Designed as part of the AMPSEAL 16 series for heavy duty industrial and automotive use.

This automotive connector is ideal for use in industrial, automotive, agricultural, and heavy equipment manufacturing sectors requiring robust and sealed electrical connectors. Environmentally sealed wire-to-wire connectors like the TE Connectivity 776487-1 ensure reliable signal and power transmission under harsh operating conditions.
