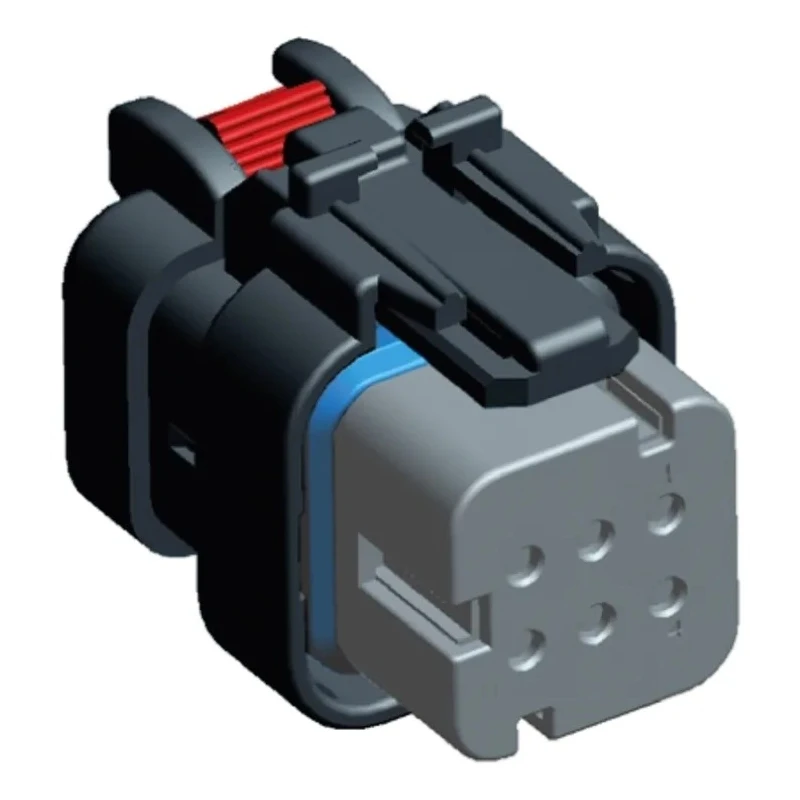

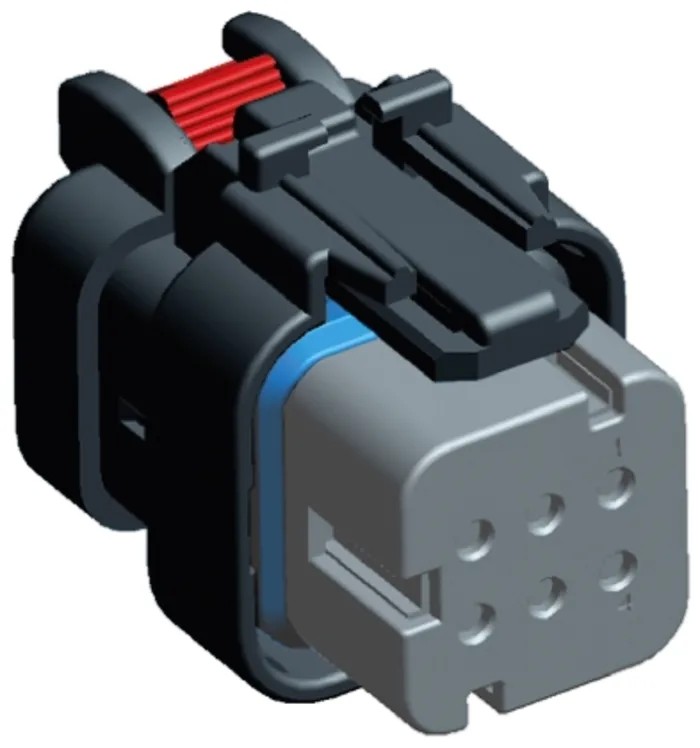

TE Connectivity AMPSEAL 16 Automotive Connector Female Grey Cable 6 Way Crimp Termination 776531-2

TE Connectivity AMPSEAL 16 Automotive Connector model 776531-2 is a female connector designed for wire-to-wire and wire-to-device applications in automotive, industrial, agricultural, and recreational vehicles. This grey connector features a durable fibreglass reinforced polybutylene terephthalate housing material and is engineered for reliability under harsh environmental conditions.

The AMPSEAL 16 series connectors provide secure locking with integral primary latch reinforcement and a connector position assurance (CPA) device. This 6-way connector has two rows of contacts and supports crimps as a termination method, facilitating superior connection quality and ease of installation.

Designed to handle current ratings up to 13 amps, the connector is rated IP67 for ingress protection, enabling use in environments subject to water and dust exposure. It operates efficiently within a broad temperature range from -40°C to 125°C, supporting demanding thermal conditions commonly encountered in off-road and heavy-duty equipment.

The connector’s design includes color coding and physical keying features, which reduce the risk of incorrect mating and enhance system reliability. A cable exit angle of 180 degrees offers versatile cabling arrangements, ideal for tight spaces and complex harness geometries.

This series is suitable for multiple contact configurations including 2, 3, 4, 6, 8, and 12 contacts, providing flexibility in design choices. The model 776531-2 specifically covers the 6-contact female grey cable mount variant with crimp termination.

The connector complies with EU ELV and RoHS standards, ensuring environmental and safety compliance for automotive and industrial applications. Its compact dimensions (Height: 30.97 mm, Width: 20.33 mm, Depth: 39.85 mm) allow integration into various assemblies without excessive space requirements.

Ideal applications include automotive wiring harnesses, agricultural machinery, construction equipment, heavy-duty industrial vehicles, and recreational vehicles requiring reliable, sealed electrical connections.

Supports 6 contact wire connections in a 2-row layout for compact, reliable wiring. Durable fibreglass reinforced PBT housing material ensures long-term mechanical and environmental protection. Crimp termination simplifies installation while maintaining electrical and mechanical integrity.

Rated for 13 amps current and IP67 ingress protection rating for high-performance usage. Operates within a wide temperature range from -40°C to +125°C for diverse environmental conditions. Features color coding and keying to prevent mis-mating and enhance system reliability.

Complies with EU ELV and RoHS directives supporting environmental safety. Discover more innovative connectors and solutions from TE Connectivity in the automotive and industrial electronics categories on EnvMart.
