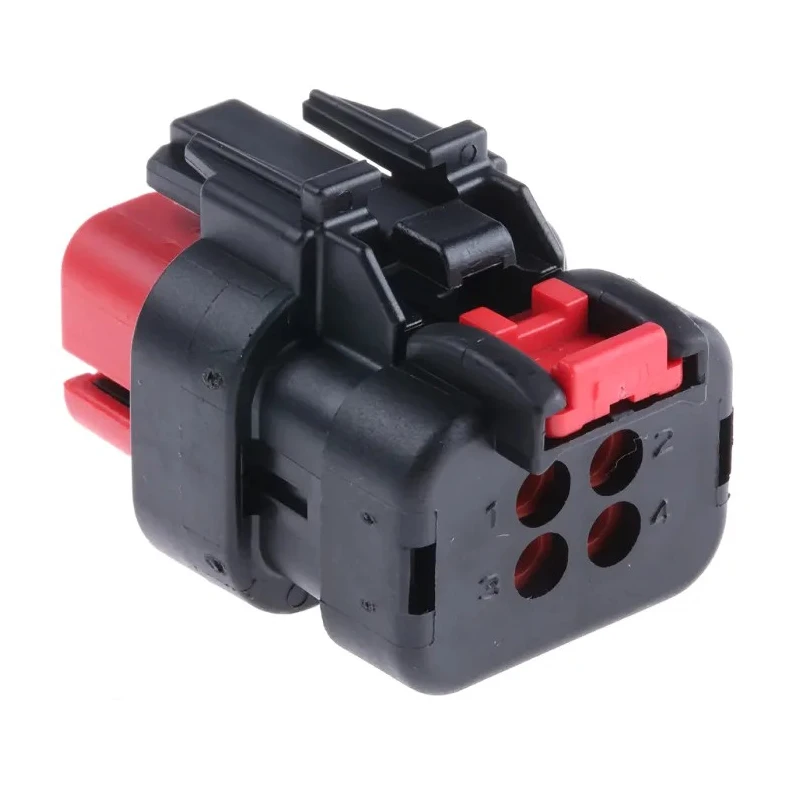

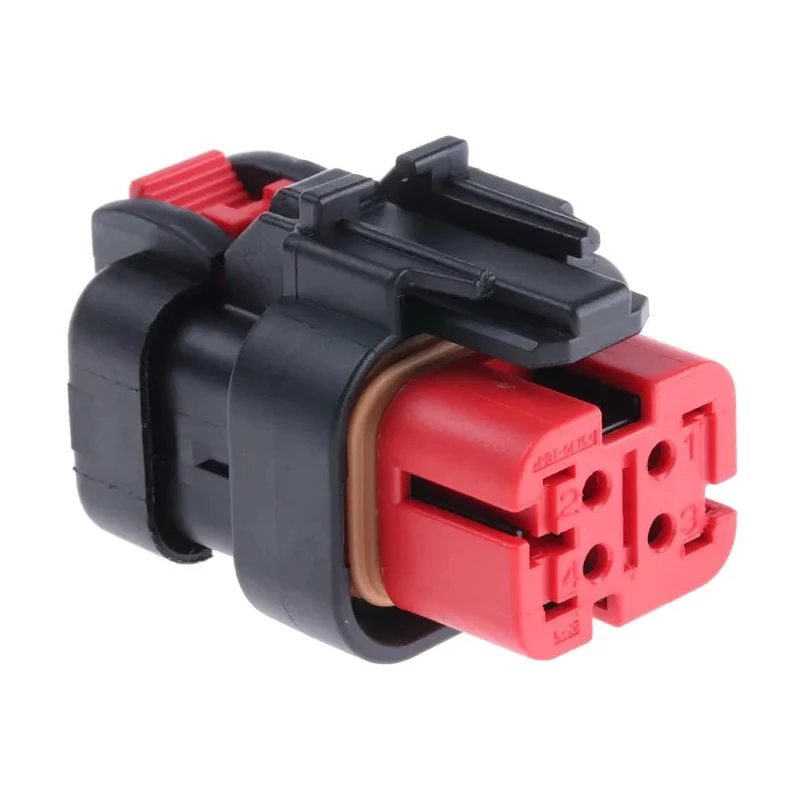

TE Connectivity AMPSEAL 16 Automotive Connector Female Red Cable 4 Way Crimp Termination 776524-1
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| Current | 13A |
| Height | 26.8mm |
| Model | 776524-1 |
| Depth | 39.95mm |
| IP Rating | IP67 |
| Width | 25.33mm |
| Gender | Female |
| Mount Type | Cable |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Series | AMPSEAL 16 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Sub Type | Automotive Connector Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Standards/Approvals | EU ELV, EU RoHS |
| Number of Contacts | 4 |
| • Operating Temperature range | -40°C to +125°C |
| • Cable exit angle | 180° |
Key Features
- Features 4 contacts arranged in 2 rows for secure wiring.
- Rated current capacity of up to 13 amps suitable for automotive applications.
- Cable mount type with crimp termination ensures robust and easy installation.
- Housing material is fibreglass reinforced polybutylene terephthalate for durability.
- Compliance with EU ELV and EU RoHS standards confirms environmental safety.
- IP67 rated for protection against dust and immersion in water.
- Operating temperature ranges from -40°C to 125°C for wide temperature resilience.
- Designed for off-road, heavy-duty industrial, agricultural, and recreational vehicle applications.
Product Description
TE Connectivity 776524-1 AMPSEAL 16 Automotive Connector Female is a 4-way cable-mounted connector designed for high-reliability sealed connections in automotive and industrial environments. Constructed with fibre glass reinforced polybutylene terephthalate housing, it ensures durability and environmental resistance.
This connector is specifically engineered to meet rigorous performance standards with an operating temperature range from -40°C to +125°C, and an IP67 rating providing dust-tightness and protection against temporary water immersion. The robust design includes integral primary latch reinforcement and a coupling position assurance (CPA) feature for secure locking in complex wiring systems.
The 4 contacts arranged in 2 rows deliver a current rating of up to 13A, making it well suited for wire-to-wire and wire-to-device connections in off-road, heavy-duty industrial, recreational, and agricultural vehicles. Its cable mount type and crimp termination method enhance ease of installation and connection quality.
Environmental compliance with EU ELV and RoHS regulations assures users of the connector's suitability for sustainable manufacturing and use. Its red colour coding and keyed design prevent incorrect mating during assembly or maintenance.
4 contacts, 2 rows wiring configuration. Current rating up to 13 amps. Operating temperature from -40°C to 125°C. IP67 rated sealing for harsh environments. Fibreglass reinforced polybutylene terephthalate housing material.
Cable mount with crimp termination type. Colour coded red to prevent mismatches. Compliant with EU ELV and RoHS standards. Compact housing dimensions: 26.8mm H × 25.33mm W × 39.95mm D.
This connector system is designed to support industrial, automotive, agricultural, and heavy-duty recreational vehicles, addressing the need for reliable, environmentally sealed electrical connectors in challenging operational conditions.
Browse the comprehensive selection of TE Connectivity Automotive Connectors at EnvMart for trusted connectivity solutions in demanding applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of up to 13 amps, suitable for various automotive applications.
It has an IP67 rating, providing protection against dust and immersion in water.
The operating temperature range is from -40°C to +125°C, allowing it to function in extreme conditions.
The housing is constructed from fibreglass reinforced polybutylene terephthalate, ensuring durability and environmental resistance.
This connector features 4 contacts arranged in 2 rows for secure wiring.
It uses a crimp termination method, which enhances ease of installation and connection quality.
Yes, it complies with EU ELV and EU RoHS standards, confirming its suitability for sustainable manufacturing and use.
The connector is color coded red to prevent mismatches during assembly or maintenance.
The compact housing dimensions are 26.8mm in height, 25.33mm in width, and 39.95mm in depth.
It is designed for off-road, heavy-duty industrial, agricultural, and recreational vehicle applications.
The cable exit angle is 180°, allowing for flexible installation options.
The country of origin for this connector is Mexico.
