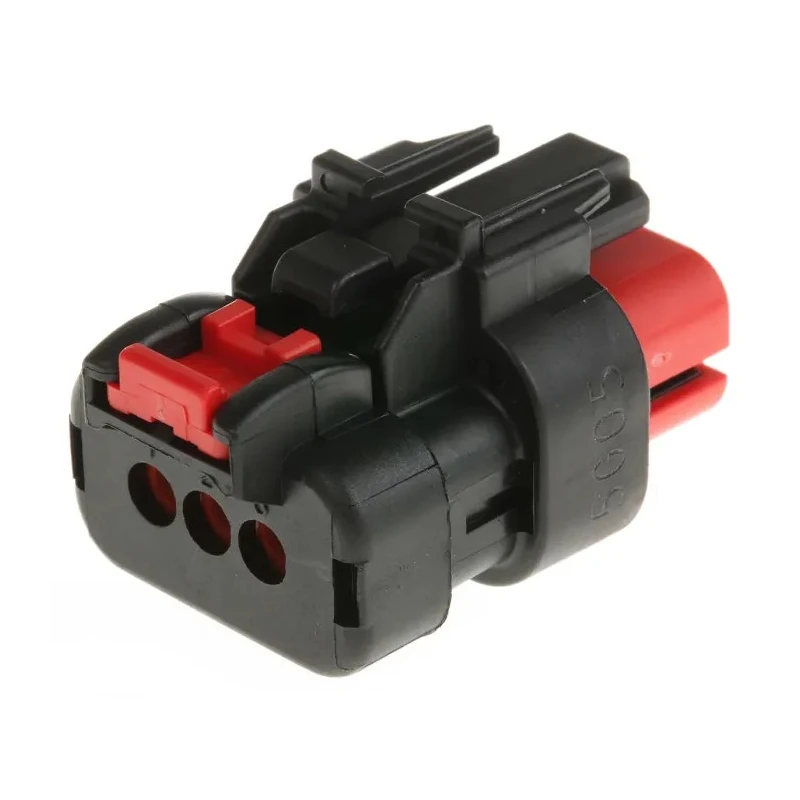

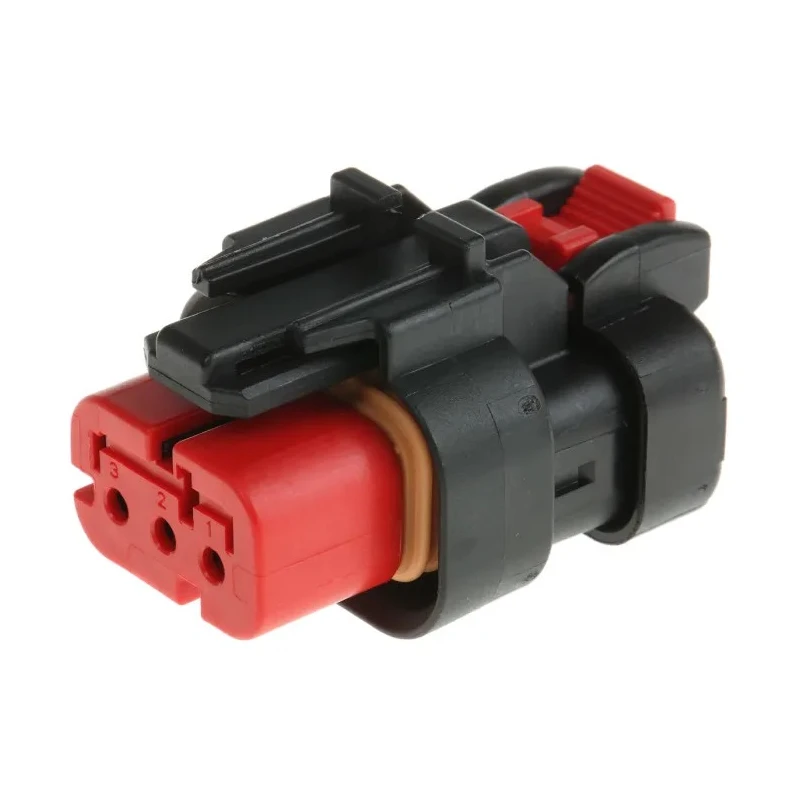

TE Connectivity AMPSEAL 16 Automotive Connector Female Red Cable 3 Way Crimp Termination 776523-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| Current | 13A |
| Height | 23.47mm |
| Model | 776523-1 |
| Depth | 39.95mm |
| IP Rating | IP67 |
| Width | 24.83mm |
| Gender | Female |
| Mount Type | Cable |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Series | AMPSEAL 16 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Sub Type | Automotive Connector Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Standards/Approvals | EU RoHS, EU ELV |
| Number of Contacts | 3 |
| • Operating Temperature range | -40°C to +125°C |
| • Cable exit angle | 180° |
Key Features
- Offers up to 13A current rating suitable for heavy duty uses.
- Features IP67 rated sealing for reliable environmental protection.
- Operates reliably from -40°C to +125°C temperature range.
- Constructed with fibreglass reinforced polybutylene terephthalate housing for durability.
- Colour coded and keyed to prevent mis-mating and ensure proper connection.
- 3 contacts arranged in a single row with cable mount type and crimp termination.
- Compact dimensions of 24.83mm width, 23.47mm height, and 39.95mm depth.
- Complies with EU RoHS and EU ELV standards for environmental safety.
Product Description
TE Connectivity 776523-1 AMPSEAL 16 Automotive Connector is a high-performance female connector designed for automotive, industrial, recreational, and agricultural applications requiring robust and reliable electrical connections.
This connector features a red cable housing with 3 way crimp terminations, providing secure wire-to-wire or wire-to-device connections. It supports a current rating of up to 13 amps and ensures environmental protection with an IP67 rating, making it suitable for harsh conditions.
The product is engineered with fibreglass reinforced polybutylene terephthalate for durable housing, maintaining operational integrity in temperature ranges from -40°C to +125°C. Its 180° cable exit angle and color-coded design reduce installation errors and improve serviceability on-site.
This connector series is part of the AMPSEAL 16 system, which offers various configurations including 2, 3, 4, 6, 8, and 12 way versions to suit diverse wiring requirements. The single row, female gender connector ensures compatibility with mating male connectors, featuring integral primary latch reinforcement and a connector position assurance (CPA) locking mechanism for secure mating.
Compliant with EU RoHS and EU ELV standards, this connector meets environmental safety regulations, enhancing its suitability for global automotive and industrial markets. Up to 13 amp current capacity for demanding applications.
Rated IP67 for water and dust resistance in harsh environments. Wide operating temperature range from -40°C to +125°C. Manufactured from fibreglass reinforced polybutylene terephthalate for strength. Designed with color coding and physical keying to prevent incorrect connections.
Cable mount type with 180° cable exit angle for convenient wiring. Secure locking with CPA and integral latch reinforcement. Available in 2 to 12 way configurations within the AMPSEAL 16 series. Compliant with EU RoHS and ELV environmental directives.
Ideal for automotive, heavy equipment, agricultural machinery, and industrial control applications. Browse more Automotive Connectors and related electronic components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of up to 13A, making it suitable for heavy-duty applications.
This model has an IP67 rating, providing protection against dust and water ingress.
It operates reliably within a temperature range of -40°C to +125°C.
The housing is constructed from fibreglass reinforced polybutylene terephthalate, providing strength and durability.
This connector features 3 contacts arranged in a single row.
It utilizes crimp termination for secure wire connections.
The connector is color-coded red to help prevent mis-mating during installation.
It has a 180° cable exit angle, facilitating convenient wiring.
Yes, it complies with EU RoHS and EU ELV standards for environmental safety.
It is designed for automotive, industrial, recreational, and agricultural applications requiring robust electrical connections.
The dimensions are 24.83mm in width, 23.47mm in height, and 39.95mm in depth.
This connector is part of the AMPSEAL 16 series, which offers various configurations.
