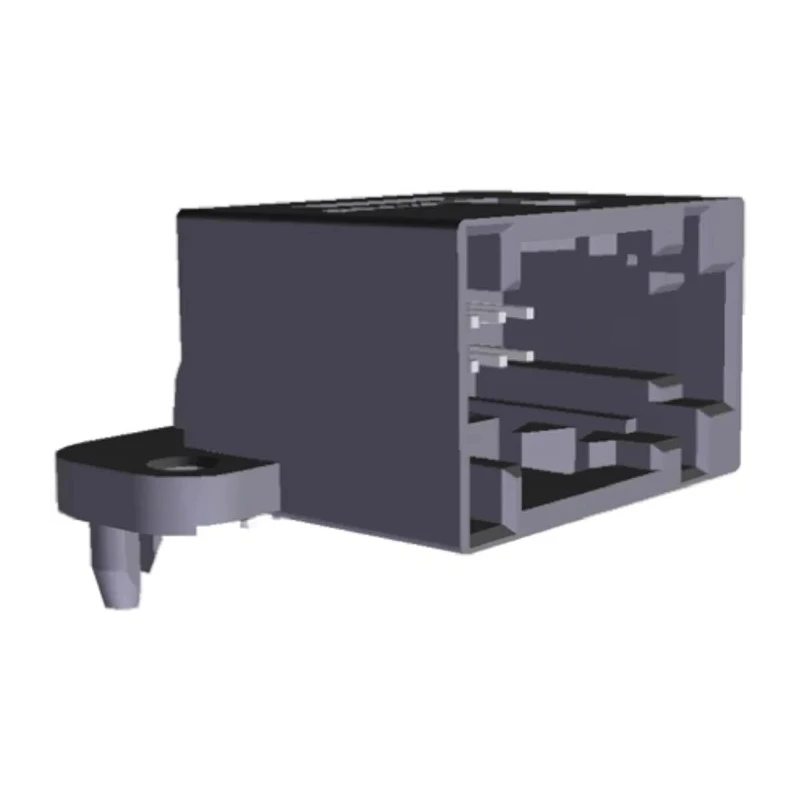

TE Connectivity Micro Quadlok System Automotive Connector Male 12 Way Black Through Hole Solder Termination 1355505-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Height | 15.9mm |
| Depth | 25.27mm |
| Width | 38.4mm |
| Gender | Male |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Bronze Powder |
| Series | Micro Quadlok System |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | Micro Quadlok Interconnection |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Standards/Approvals | EU ELV, EU RoHS |
| Contact Plating | Tin |
| Number of Contacts | 12 |
Key Features
- Includes 12 contacts arranged in 2 rows for reliable signal transmission.
- Features a micro Quadlok interconnection system designed for automotive applications.
- Termination type is solder for secure electrical connections.
- Durable black nylon housing resistant to temperatures from -40°C to 80°C.
- Contacts made of bronze powder with tin plating to ensure conductivity and corrosion resistance.
- Complies with EU ELV and EU RoHS standards for environmental safety.
- Mount type is through hole for stable PCB attachment.
- Suitable for automotive electrical connector needs in industrial and manufacturing environments.
Product Description
TE Connectivity 1355505-1 Micro Quadlok System Automotive Connector is a male connector designed for automotive use. It features a 12-contact configuration arranged in two rows to support complex wiring and signal needs. Termination is via solder types offering reliable and durable connections for critical automotive applications.
The black nylon housing offers robust protection withstanding temperatures from -40°C up to 80°C. The contacts, constructed from bronze powder and coated with tin plating, deliver reliable conductivity and corrosion resistance essential for automotive environments.
This connector uses the Micro Quadlok System series, known for its compact and efficient design tailored for automotive interconnections. Its through-hole mounting ensures secure PCB attachment for manufacturing stability.
Typical industrial applications include automotive electrical systems, manufacturing assembly lines, and repair environments where reliable, high-quality connectors are mandatory. The connector meets the EU ELV and RoHS standards, ensuring environmental compliance.
Includes 12 contacts arranged in 2 rows. Micro Quadlok interconnection system optimized for automotive use. Solder termination providing secure electrical contacts. Black nylon housing resistant to wide temperature range (-40°C to 80°C).
Compact size with width 38.4mm, height 15.9mm, and depth 25.27mm. Bronze powder contact material with tin plating for durability. Through-hole mount type for PCB stability. Compliant with EU ELV and EU RoHS standards. Ideal for automotive industrial applications.
EnvMart offers a wide range of Automotive Connectors from trusted brands like TE Connectivity, providing components vital for electrical reliability in automotive manufacturing and maintenance sectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this connector is 80°C.
This connector features 12 contacts arranged in 2 rows.
It uses solder termination for secure electrical connections.
The contacts are made of bronze powder and are coated with tin plating to ensure conductivity and corrosion resistance.
The dimensions of this connector are 38.4mm in width, 15.9mm in height, and 25.27mm in depth.
The housing is made of black nylon, which is resistant to temperatures from -40°C to 80°C.
It complies with EU ELV and EU RoHS standards for environmental safety.
This model utilizes through-hole mounting for stable PCB attachment.
It belongs to the Micro Quadlok System series, designed specifically for automotive applications.
Typical applications include automotive electrical systems, manufacturing assembly lines, and repair environments.
The minimum operating temperature for this connector is -40°C.
This connector is male.
