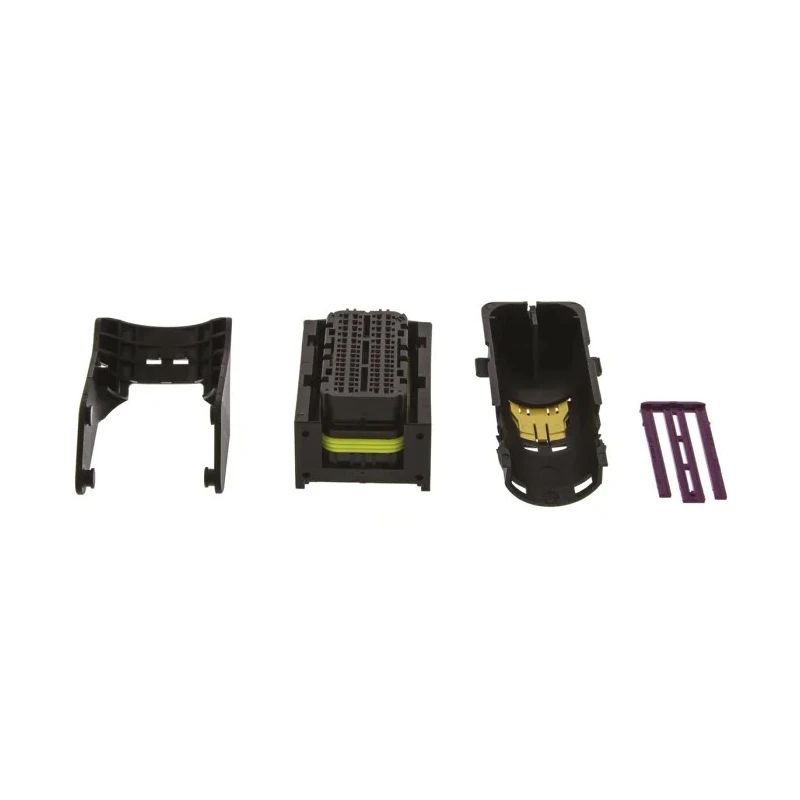

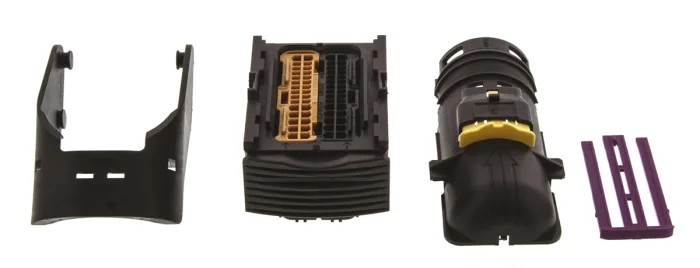

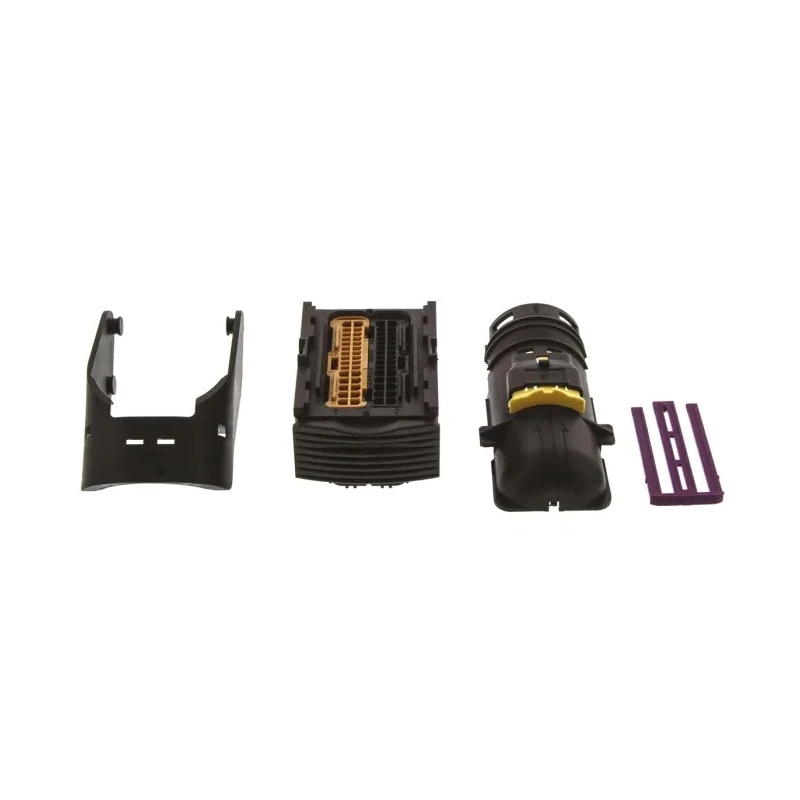

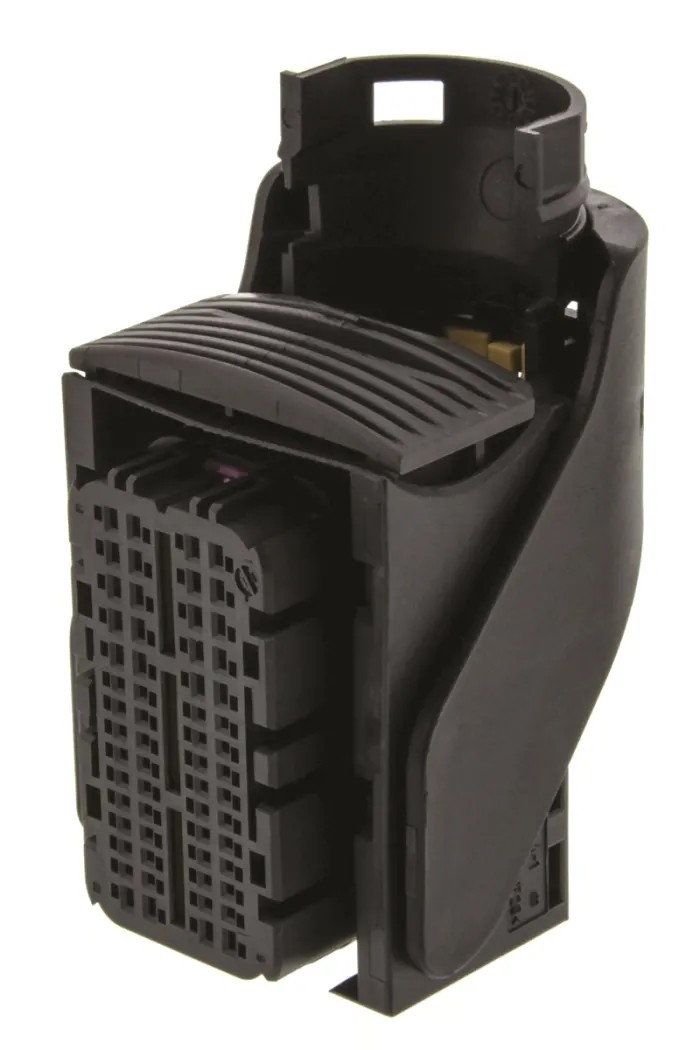

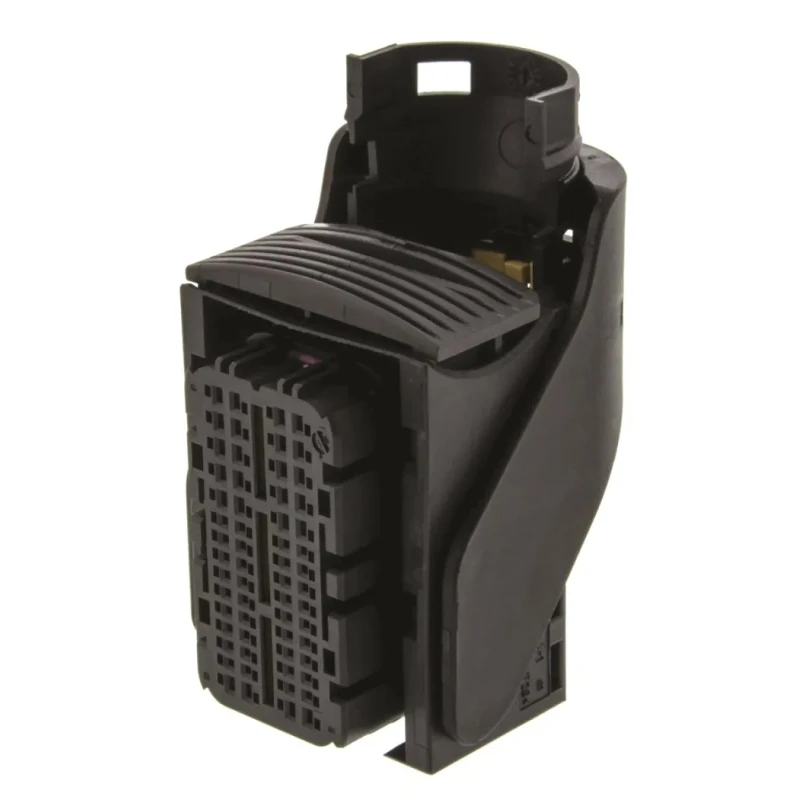

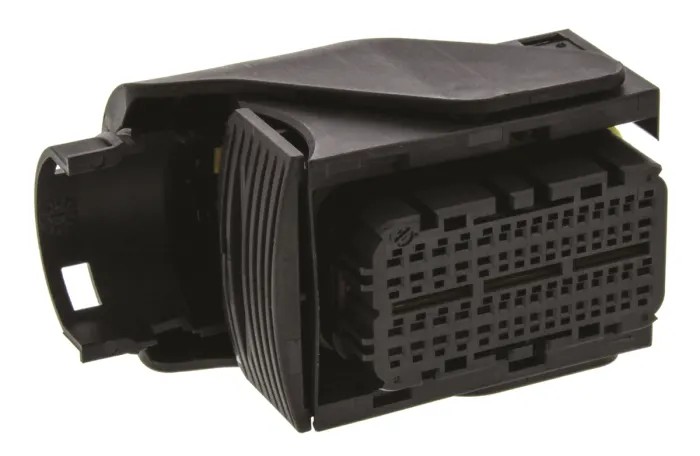

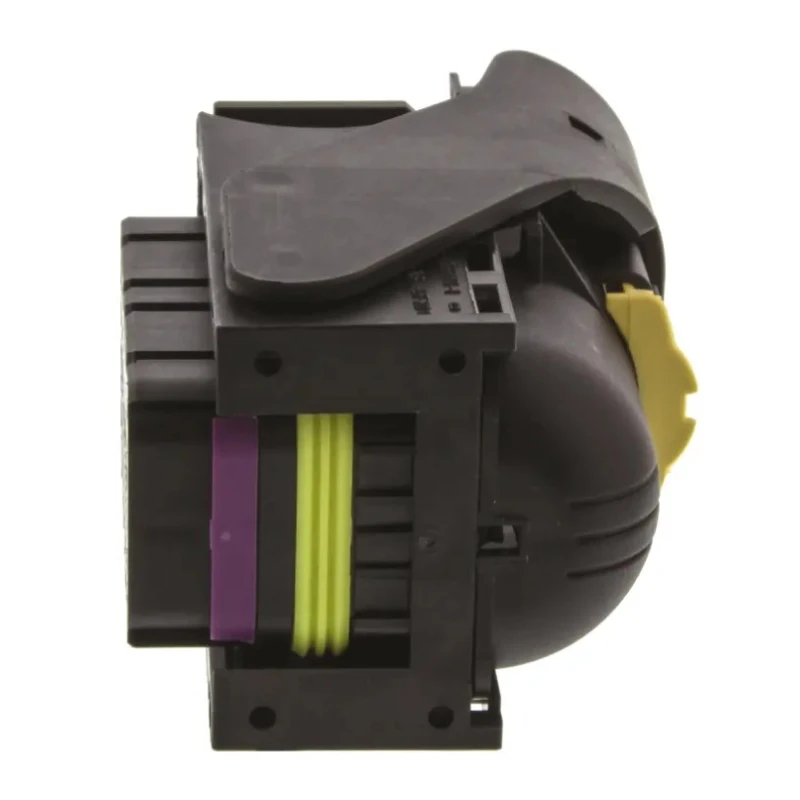

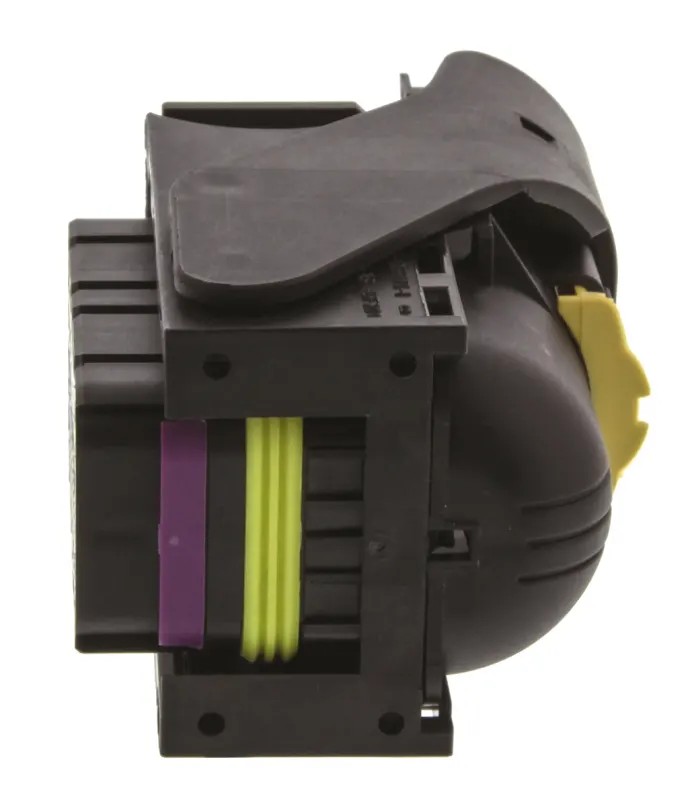

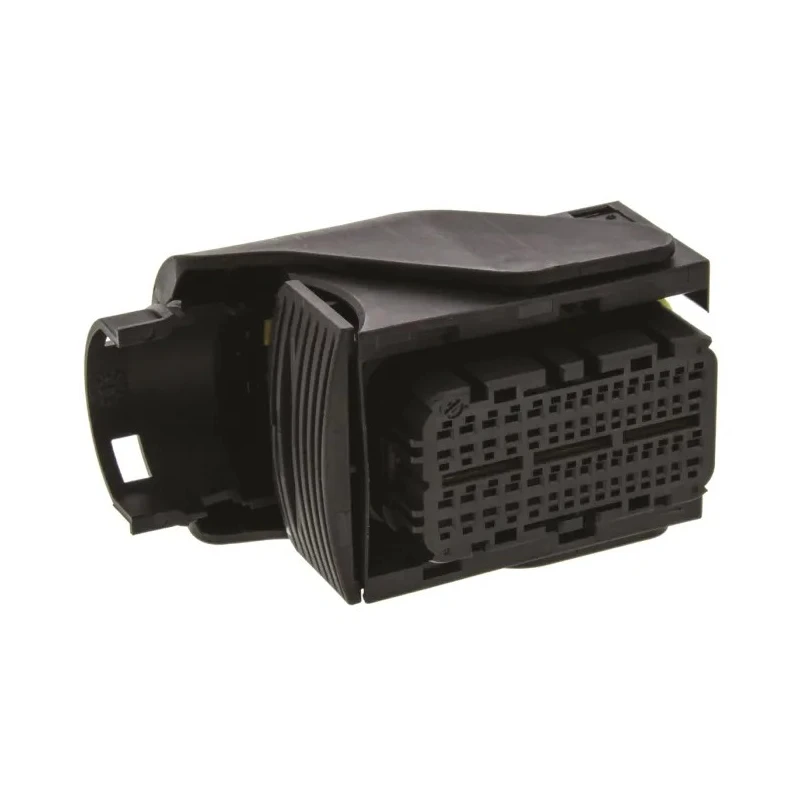

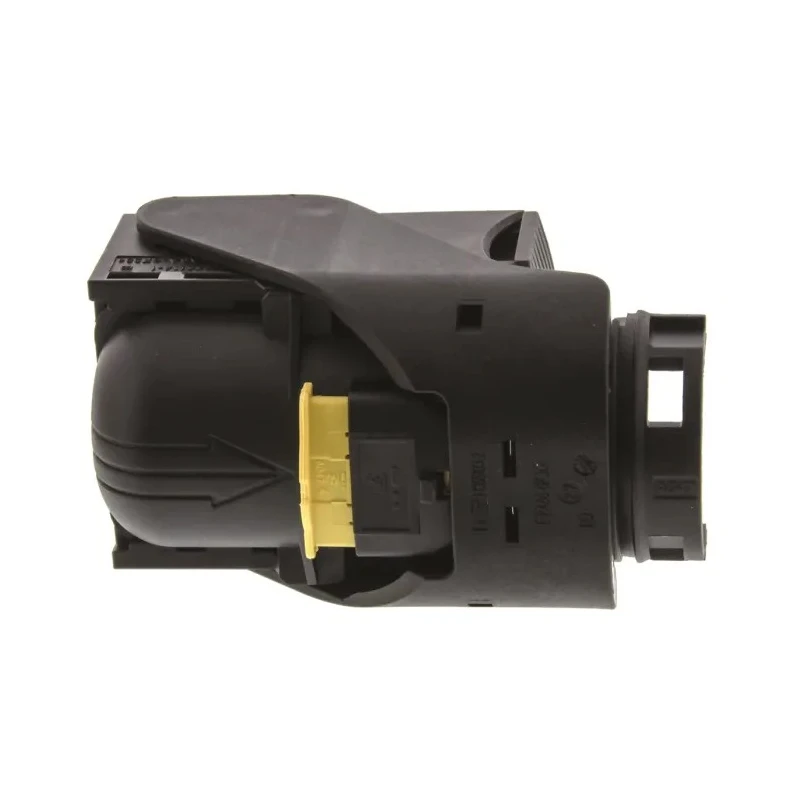

TE Connectivity Micro Quadlok System Automotive Connector Female Brown Black Cable 60 Way Crimp Termination 284742-1

TE Connectivity 284742-1 Micro Quadlok System Automotive Connector female, featuring a 60 way crimp termination, is engineered for demanding automotive electrical applications requiring a compact, high-density connector solution.

This connector housing, with a 2.54 mm pitch, employs stainless steel locking lances that provide a high primary terminal locking force, securing contacts firmly in place. The brown and black nylon housing offers excellent robustness and durability while meeting rigorous automotive standards including RoHS compliance and IPX4 waterproof rating.

Designed to operate effectively within a temperature range from -40°C up to 125°C, the connector ensures reliable electrical performance in harsh environments. The 4-row configuration allows for 60 contacts supporting up to 14A current, making it ideal for powertrain systems, safety and security modules, driver information units, as well as body and chassis control systems.

Polarization and keying options minimize risks of mismating, enhancing assembly accuracy and serviceability. The cable mount type simplifies installation with crimp termination compatibility. Additional accessories such as covers, levers, and retainer housings can be sourced separately to further tailor protection and functionality.

This product is made in Hungary and conforms to automotive electrical connector standards, ensuring high quality and dependable operation for professional industrial, automotive, and manufacturing uses.

Designed for high density with a 2.54 mm pitch connector system. Features polarization and keying to prevent mismating during installation. Includes an integral primary terminal locking to ensure secure contact retention.

Sealed version available offering waterproof protection with IPX4 rating. Operates reliably between -40°C and 125°C temperature range. Constructed with durable nylon housing in brown and black colors for easy identification.

Compatible with cable mount type and supports crimp termination. Suitable for powertrain, safety, security, and body systems in automotive industries. Comprises 4 rows and supports current rating up to 14A. Designed and manufactured in Hungary ensuring quality and performance.
