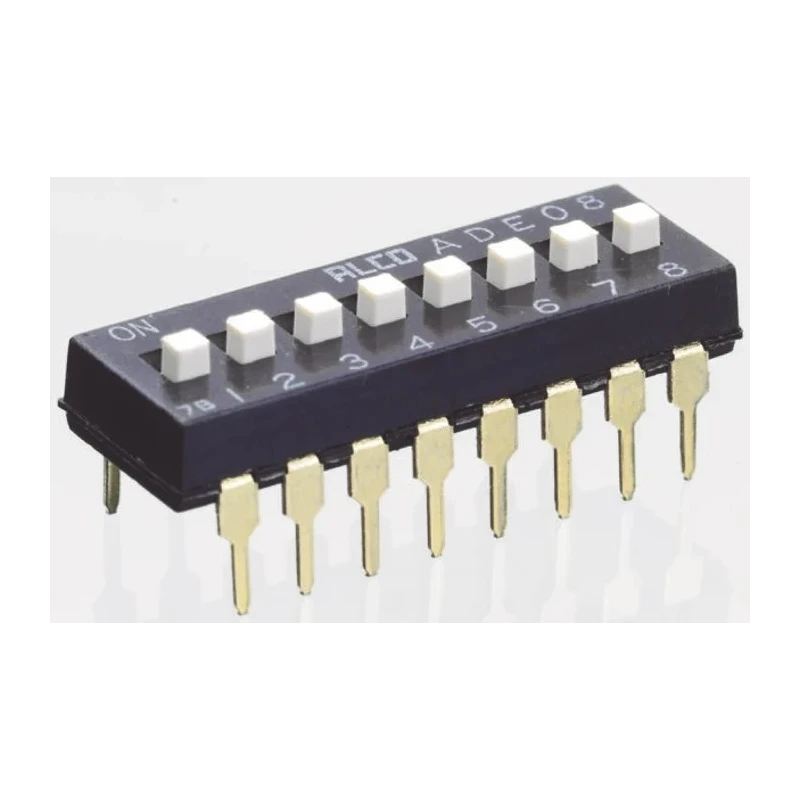

TE Connectivity Slide Rotary Coded DIP Switch Through Hole Mount 50mΩ Contact Resistance 1825057-6
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Mount Type | Through Hole |
| Actuator Type | Slide |
| Contact Resistance | 50mΩ |
Key Features
- Through hole mounting with a 7.5 x 3.5mm footprint and 2.54mm centerline spacing.
- Gold flash plated contacts ensure reliable electrical performance.
- Black PPS housing provides durability and chemical resistance.
- High pressure contact system supports aqueous and solvent cleaning without tape seal.
- Suitable for vapour phase reflow and wave soldering manufacturing processes.
- Available with flush or extended slide actuators in ADE and ADF series.
- Designed for applications requiring precise rotary code switching on PCBs.
- Manufactured in China under TE Connectivity standards.
Product Description
TE Connectivity 1825057-6 Slide Rotary Coded DIP Switch is a high-quality through hole mounted switch designed for electronic applications requiring reliable rotary code selection. Featuring gold flash plated contacts and black PPS housing, this switch exhibits superior contact resistance of 50mΩ and a robust high pressure contact system.
The switch measures 7.5 x 3.5mm with 2.54mm centerline pins and is available in the ADE series with extended slide actuators or the ADF series with flush slide actuators. Both series support aqueous and solvent cleaning without tape seal, making them suitable for demanding manufacturing environments.
Its design allows for vapour phase reflow and wave soldering, ensuring compatibility with modern PCB assembly processes. The switch is ideal for industrial, electronics manufacturing, automation, and control systems where precise and durable rotary coding is essential.
The package contains the slide rotary coded DIP switch supplied in tube packaging for easy insertion into machinery to enhance production efficiency. Through hole mounting with 7.5 x 3.5mm size and 2.54mm pitch. Gold flash plated contacts for enhanced electrical conductivity.
Black PPS housing resistant to solvents and high temperatures. High pressure contacts support cleaning processes without damage. Compatible with vapour phase reflow and wave soldering. ADE and ADF series provide choice of actuator style.
Manufactured according to TE Connectivity quality standards.
This Rotary Coded DIP Switch is suited for use in industrial automation, control panels, electronic devices, and other applications requiring compact, reliable rotary switching mechanisms. For further options explore related rotary encoded DIP switches and slide switches in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact resistance of the TE Connectivity Slide Rotary Coded DIP Switch is 50mΩ.
This rotary coded DIP switch has a footprint of 7.5 x 3.5mm with a 2.54mm centerline spacing.
It uses through hole mounting, which is suitable for PCB applications.
The switch features gold flash plated contacts for electrical performance and a black PPS housing that provides chemical resistance.
This model is available with either flush or extended slide actuators in the ADE and ADF series.
Yes, it is compatible with vapour phase reflow and wave soldering manufacturing processes.
It is designed for use in industrial automation, control panels, electronic devices, and other applications requiring reliable rotary code switching.
Yes, it supports aqueous and solvent cleaning without damage, thanks to its high pressure contact system.
This rotary coded DIP switch is manufactured in China.
The switch is supplied in tube packaging for easy insertion into machinery, enhancing production efficiency.
The brand of this switch is TE Connectivity.
The gold flash plated contacts enhance the electrical conductivity of the switch.
