TE Connectivity Z-PACK HM Series Straight Through Hole PCB Socket, 5-Contact, 1 Row, 1.5 mm Pitch, 250V, 16A 120953-2

Free Delivery in India | Lowest Global Shipping Charges

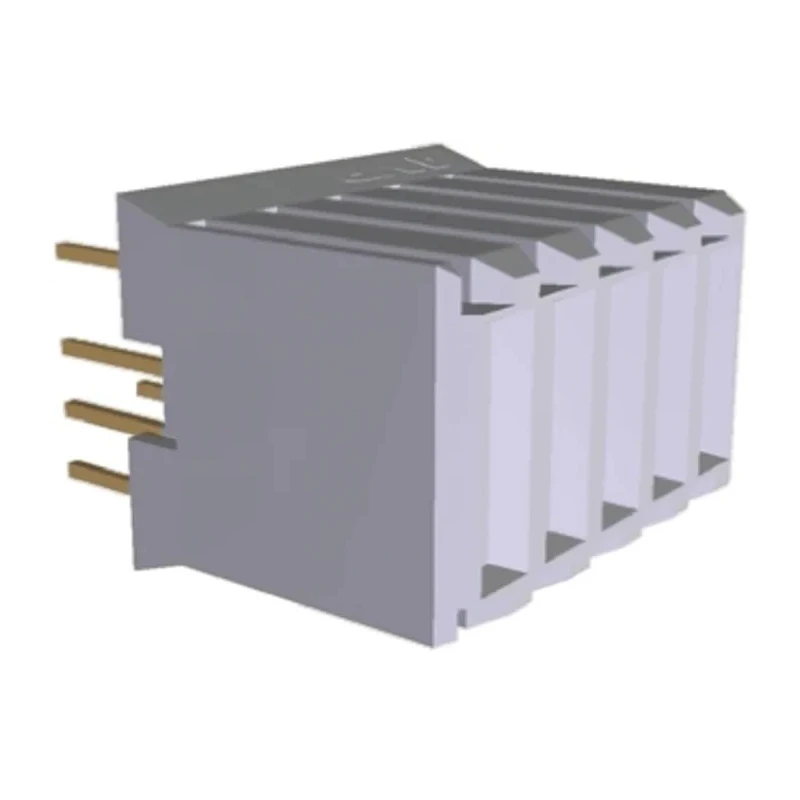

TE Connectivity Z-PACK HM Series Straight Through Hole PCB Socket, 5-Contact, 1 Row, 1.5 mm Pitch, 250V, 16A 120953-2

Name: TE Connectivity Z-PACK HM Series Straight Through Hole PCB Socket, 5-Contact, 1 Row, 1.5 mm Pitch, 250V, 16A 120953-2
Brand: TE Connectivity
SKU: 219849
Price: 9.68 USD
Availability: InStock



Category PCB Socket Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	TE Connectivity
Orientation	Straight
Current	16A
Model	120953-2
Mount Type	Through Hole
Housing Material	Polyester
Contact Material	Copper
Series	Z-PACK HM
Termination Type	Solder
Maximum Operating Temperature	110°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-65°C
Number of Rows	1
Pitch	1.5mm
Contact Plating	Tin
Number of Contacts	5
Contact Gender	Female
Connector System	Board-to-Board

Key Features

Designed for board-to-board connections with solder termination.
Constructed with a durable polyester housing for reliability.
Features copper contacts plated with tin for optimal conductivity.
Operates within a temperature range of -65°C to 110°C ensuring stability in varied environments.
Single-row 5-contact configuration suits compact PCB layouts.
Compatible with Z-PACK HM series for versatile application.
Mount type is through hole, facilitating strong mechanical connection.
Orientation is straight to ensure precise alignment in assemblies.

Product Description

TE Connectivity 120953-2 Z-PACK HM Series Straight Through Hole PCB Socket is engineered for high-performance board-to-board connections. It provides a reliable electrical interface with a 5-contact layout arranged in a single row and a precise 1.5 mm pitch.

This PCB socket supports current up to 16A and voltage up to 250V, making it suitable for demanding electronic assemblies needing robust power transmission capabilities.

The housing is made of high-quality polyester material that offers excellent durability and thermal resistance. Its through hole mount and straight orientation enable secure and stable soldered connections on printed circuit boards.

The contacts are manufactured from copper with a tin plating to ensure excellent electrical conductivity and resistance to corrosion over prolonged use. The socket is rated to operate within a temperature range of -65°C to 110°C, supporting industrial and commercial applications requiring temperature resilience.

The Z-PACK HM series design offers compatibility with various modular connector types, supporting versatile configurations in electronic assemblies including industrial controls, communications equipment, and computing devices.

Designed for board-to-board connections with solder termination. Durable polyester housing ensures mechanical strength and electrical insulation. Copper contacts with tin plating offer low resistance and corrosion protection.

Wide operating temperature range from -65°C to 110°C for diverse environmental conditions. Compact 5-contact, single-row construction optimizes space on PCBs. Through hole mounting type assures strong physical attachment to boards.

Straight connector orientation facilitates precise PCB alignments.

This Z-PACK HM Series PCB Socket by TE Connectivity is ideal for high-reliability industrial, commercial, and electronic manufacturing applications. It enhances production efficiency with ready-to-use packaging, making it suitable for automated insertion and assembly.
