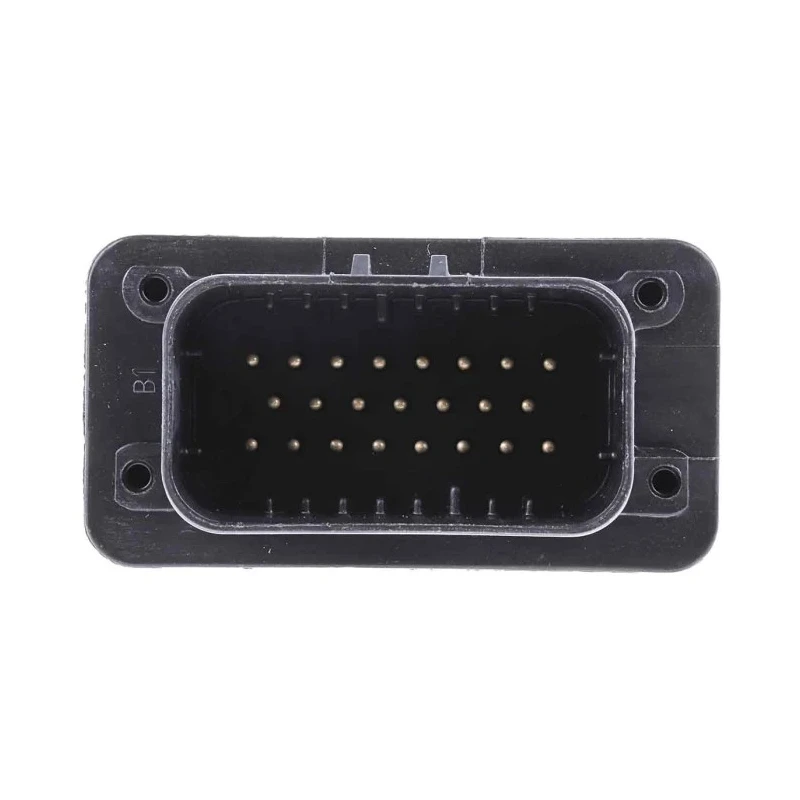

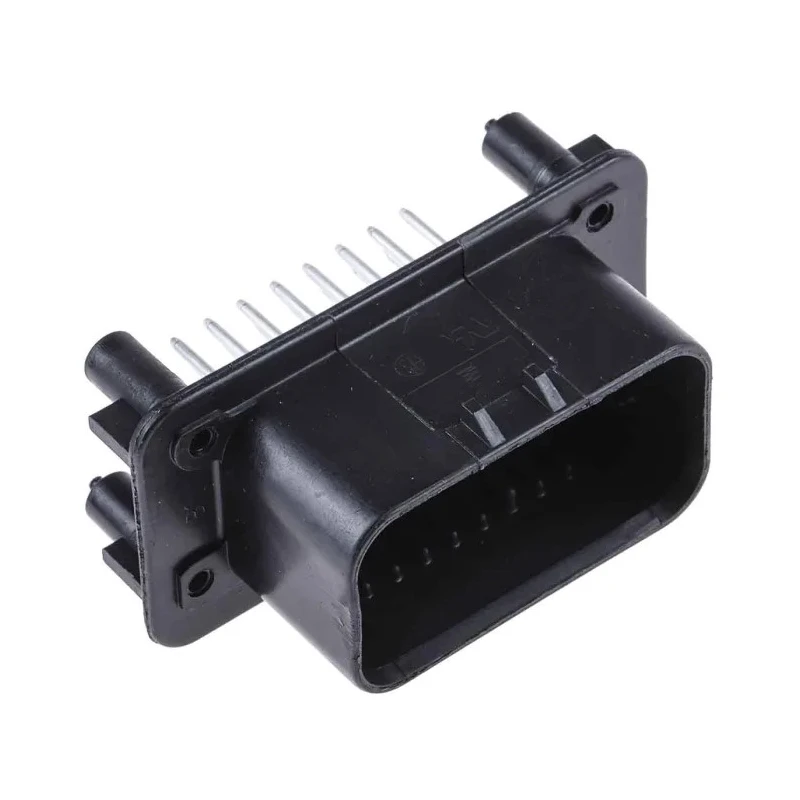

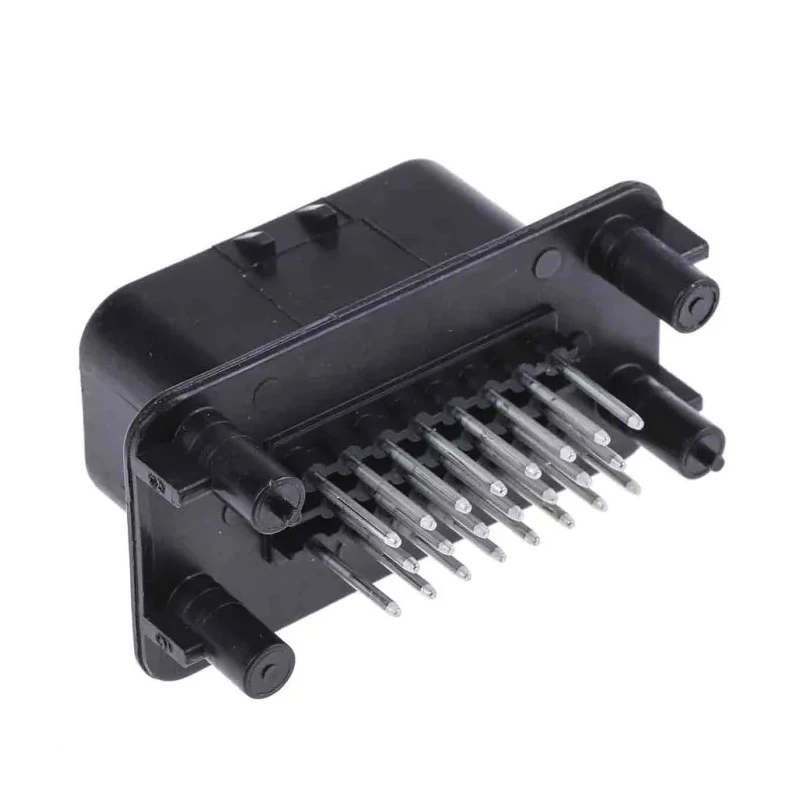

TE Connectivity Ampseal Automotive Connector Male 23 Way Grey Through Hole Solder Termination 776228-1
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 1.3mm |
| Brand | TE Connectivity |
| Colour | Grey |
| Current | 8A |
| Height | 34.25mm |
| Model | 776228-1 |
| Depth | 32.1mm |
| IP Rating | IP67, IP69K |
| Width | 60.8mm |
| Gender | Male |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Series | Ampseal |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Power Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 3 |
| Contact Plating | Tin |
| Number of Contacts | 23 |
Key Features
- The connector is rated IP67 and IP69K for superior environmental sealing.
- It supports operating temperatures from -40°C to 105°C, suitable for harsh conditions.
- 23 contacts arranged in 3 rows provide robust electrical connections with 8A current rating.
- Constructed with thermoplastic housing and tin-plated contacts for durability and corrosion resistance.
- Through hole mounting ensures secure PCB installation and strong mechanical connection.
- Suitable for automotive, off-road, marine, and emergency vehicle applications.
- Sealed with silicone rubber for excellent vibration and shock resistance.
- Designed series Ampseal connector delivers consistent performance under high temperature and high vibration.
Product Description
TE Connectivity 776228-1 is a high-quality Ampseal automotive connector designed for male power connections with 23 contacts. The connector features a grey thermoplastic housing with tin-plated contacts and solder termination via through hole mount. This product excels in durability and environmental protection with IP67 and IP69K ratings, ensuring it is dust-tight and can withstand high-pressure, high-temperature water jets.
Operating temperatures range from -40°C minimum to 105°C maximum, making this connector ideal for harsh automotive and industrial environments. It carries a current rating of 8A per contact and provides 3 rows of contacts with a 1.3mm diameter pin for reliable electrical connections.
The robust construction and silicone rubber sealing deliver superior vibration and shock resistance, perfect for applications such as trucks, buses, construction machinery, agriculture equipment, marine vessels, and emergency vehicles.
TE Connectivity's Ampseal series is known for exceptional ruggedness and high-temperature tolerance, making this model suitable for challenging scenarios where reliability and environmental resilience are crucial.
The connector supports solder termination with through hole mounting for secure PCB integration. The grey thermoplastic housing provides mechanical strength and electrical insulation. Tin-plated contacts assure corrosion resistance and optimal conductivity.
Sealing ensures excellent protection against dust, moisture, and mechanical shocks. Temperature range and IP ratings confirm suitability for demanding automotive and industrial conditions. Multi-row contact layout supports complex wiring requirements.
Compatible with various industrial and automotive electrical systems. Backed by TE Connectivity quality and performance standards.
This product is a reliable choice for designers and engineers seeking a rugged Automotive Connector solution. Explore more connectors in the TE Connectivity Ampseal series or related automotive electrical connectors categories at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This automotive connector has a current rating of 8A per contact, making it suitable for various electrical applications.
The connector is rated IP67 and IP69K, ensuring it is dust-tight and can withstand high-pressure, high-temperature water jets.
It supports operating temperatures from -40°C to 105°C, which is suitable for harsh automotive and industrial environments.
This model features 23 contacts arranged in 3 rows, providing robust electrical connections.
It is constructed with a grey thermoplastic housing and tin-plated contacts, offering durability and corrosion resistance.
This connector uses solder termination with through hole mounting for secure PCB integration.
The contacts have a diameter of 1.3mm, which is standard for reliable electrical connections.
The dimensions are 60.8mm in width, 32.1mm in depth, and 34.25mm in height.
It is suitable for automotive, off-road, marine, and emergency vehicle applications due to its rugged design and environmental ratings.
The connector is sealed with silicone rubber, providing excellent vibration and shock resistance, which is crucial for demanding environments.
This connector is a male type, designed for power connections in various applications.
The connector is manufactured in India, ensuring compliance with quality standards.
