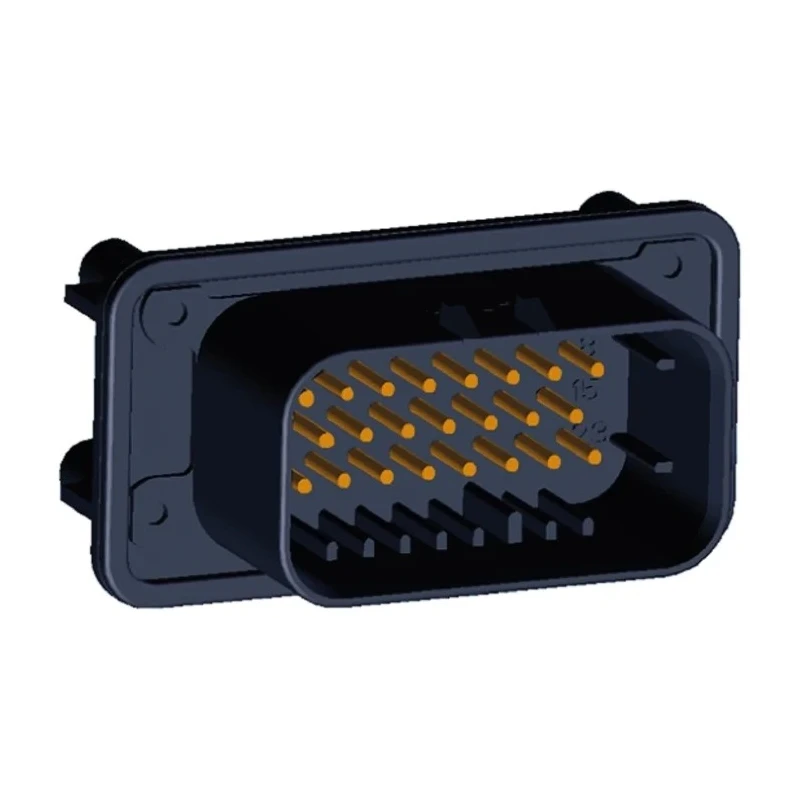

TE Connectivity Ampseal Automotive Connector Male Black Panel Mount 23 Way Solder Termination 1-776228-1
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 1.3mm |
| Brand | TE Connectivity |
| Colour | Black |
| Current | 17A |
| Height | 32.1mm |
| Depth | 34.3mm |
| IP Rating | IP6K9K |
| Width | 60.8mm |
| Gender | Male |
| Mount Type | Panel Mount |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | Ampseal |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | PCB Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 3 |
| Contact Plating | Gold |
| Number of Contacts | 23 |
Key Features
- Operates reliably between -40°C and 125°C.
- IP69K rated sealing for dust tight and high pressure washdown protection when mated.
- Constructed with fibreglass reinforced polybutylene terephthalate housing for rugged durability.
- 23-way contact configuration ensuring reliable connectivity for automotive systems.
- Gold-plated brass contacts deliver superior electrical conductivity and corrosion resistance.
- Supports a current rating of up to 17A for high power automotive applications.
- Designed for high vibration and shock environments such as trucks, buses, and construction vehicles.
- Panel mount type ensuring secure installation and accessibility.
Product Description
TE Connectivity 1-776228-1 Ampseal Automotive Connector Male is a high-quality 23-way connector designed for robust automotive electrical applications. It features a panel mount construction with solder termination type, providing secure and reliable connections in harsh environments.
This connector operates efficiently across a wide temperature range from -40°C to 125°C, ensuring performance in extreme operating conditions. It is IP69K rated when mated with the corresponding connector, which guarantees complete dust tight sealing and resistance to high-pressure, high-temperature water jets.
The housing is made from fibreglass reinforced polybutylene terephthalate, offering exceptional mechanical strength and chemical resistance. The contacts are brass with gold plating to ensure excellent electrical conductivity and protection against corrosion.
With a current capacity of 17A and a 23-contact configuration arranged in 3 rows, the connector supports high-current automotive and industrial electrical systems. Its design includes a 1.3 mm contact diameter, with overall dimensions of 60.8 mm width, 32.1 mm height, and 34.3 mm depth, fitting panel mount applications securely.
This rugged connector series is widely used in trucks, buses, construction machinery, agricultural equipment, marine vehicles, and emergency services due to its superior durability, vibration resistance, and sealed protection rating. It is ideal for commercial and industrial automotive environments requiring reliable connections under challenging conditions.
Operates reliably between -40°C and 125°C. IP69K rated sealing for dust and water ingress protection. Fibreglass reinforced polybutylene terephthalate housing. Gold-plated brass contacts for durability and conductivity. 23 contacts arranged in 3 rows for complex circuit connections.
Supports 17A current load for high power applications. Panel mount type with solder termination. Designed for use in off-road, marine, agricultural, and emergency vehicles. Robust performance in high vibration and shock environments.
Explore more high-quality Automotive Connectors at EnvMart for demanding industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This automotive connector supports a current rating of up to 17A, making it suitable for high power applications.
It operates reliably between -40°C and 125°C, ensuring performance in extreme conditions.
It is IP69K rated when mated, providing complete dust tight sealing and resistance to high-pressure water jets.
The housing is constructed from fibreglass reinforced polybutylene terephthalate, offering mechanical strength and chemical resistance.
This model features a 23-way contact configuration arranged in 3 rows for reliable connectivity.
It utilizes a solder termination type, ensuring secure and reliable connections.
The contact diameter is 1.3 mm, which is suitable for various electrical connections.
The dimensions are 60.8 mm in width, 32.1 mm in height, and 34.3 mm in depth.
It is designed for high vibration and shock environments, such as trucks, buses, and construction vehicles.
This connector is ideal for automotive systems and is widely used in off-road, marine, agricultural, and emergency vehicles.
The contacts are made of brass and are gold-plated to ensure excellent electrical conductivity and corrosion resistance.
The country of origin for this connector is India.
