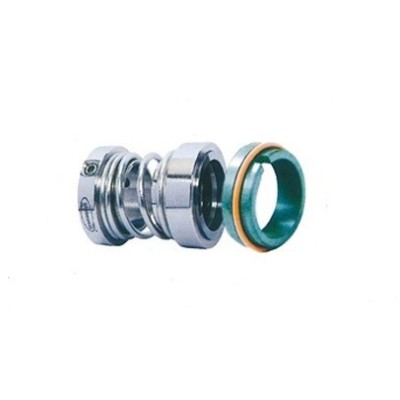

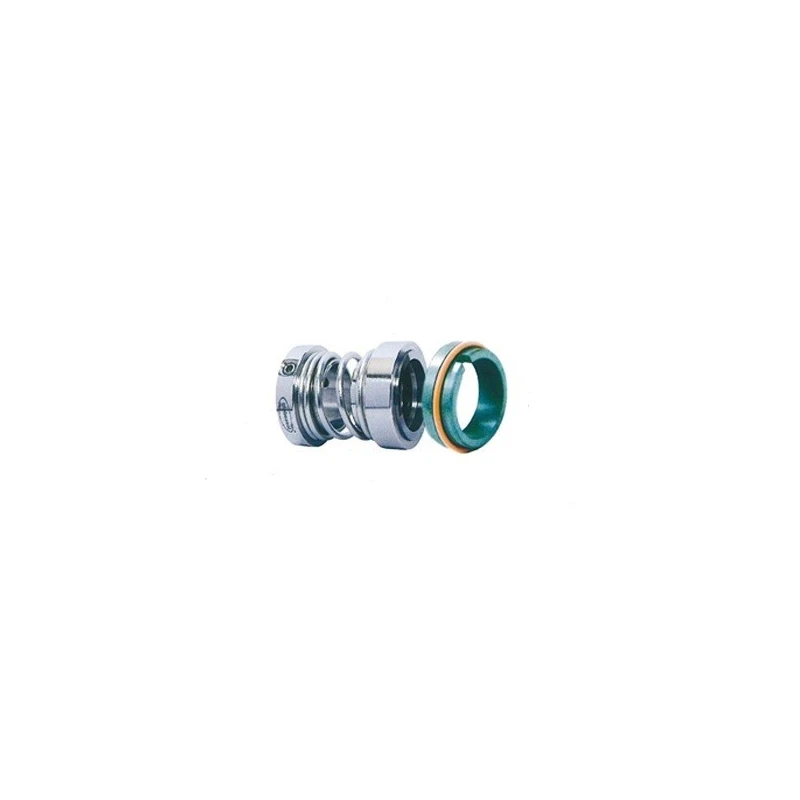

Single Spring Unbalance Seal Series GSS-156
Specifications
| Pressure | 10 Bar (kg/cm 2) |
|---|---|
| Temperature | -45c To 200c |
| Shaft Diameter | 10 mm To 100 mm |
| Shaft Speed | Upto 6000 RPM According To Shaft Size & Pressure. |
| Hardware | SS-316 SS-304 Has!-C Menol Alloy-20 |
| Face Material | Carbon Ceramic (99.5%) SIC T.C. |
| Secondary Seal | GFT PTFE TCV FEP |
Key Features
- High Durability
- High performance
Product Description

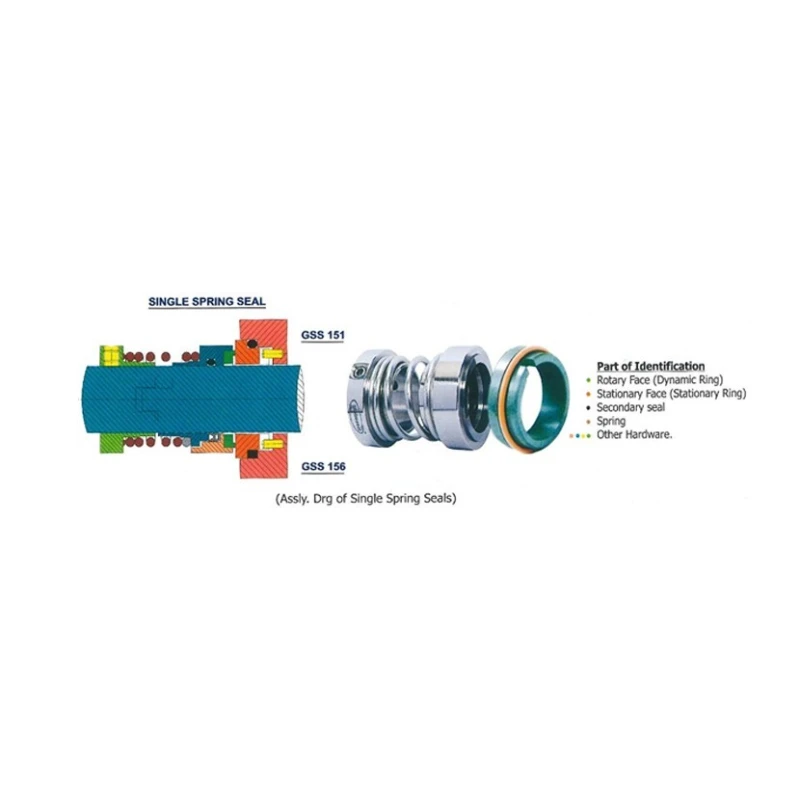

Single Coil Spring Seals: custom design single coil spring seals. We are a prime manufacturer & supplier of single coil spring seals in India.We provide specially designed GSS 156 series of seals for various industrial applications. It is an internally mounted unbalanced single coil spring seal, driven by the clutch. The seal contains a drive ring and a drive collar. If the spring is clogged, the rotary will be driven reliably. The motion transmits by the shaft to springs, driven by the rotary. The seals are mounted internally.All parts of the single coil springs are interchangeable. We can convert the series GSS 151 to GSS 156 by changing the secondary seal and dynamic ring. It is an ideal principle for stock rationalization.The seal has wide applications in various industries. It is used in petrochemicals, general chemicals, dirty water and slurry, and petroleum refineries.Seal Characteristics Inside Mounted Single Acting unbalanced Independent Of Direction Of RotationApplication High Hydrocarbon Petrochemicals General Chemicals Dirty Water & Slurry Petroleum Refinery.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The GSS-156 seal has a pressure rating of 10 Bar (kg/cm²).
It can operate within a temperature range of -45°C to 200°C.
The compatible shaft diameter for this seal ranges from 10 mm to 100 mm.
The maximum shaft speed supported is up to 6000 RPM, depending on the shaft size and pressure.
The hardware is made from materials such as SS-316, SS-304, and Hastelloy C-276, while the face material consists of carbon ceramic (99.5%) and SIC T.C.
The secondary seal used in this model is made from GFT PTFE TCV FEP.
This seal is designed to be mounted internally and operates as a single acting unbalanced seal.
Yes, the GSS-156 series can be converted from GSS 151 by changing the secondary seal and dynamic ring.
The seal is used in various industries including petrochemicals, general chemicals, dirty water and slurry, and petroleum refineries.
The design principle allows for stock rationalization, as all parts of the single coil springs are interchangeable.
It features a drive ring and a drive collar, with the rotary motion transmitted by the shaft to the springs.
No, it operates independently of the direction of rotation.
