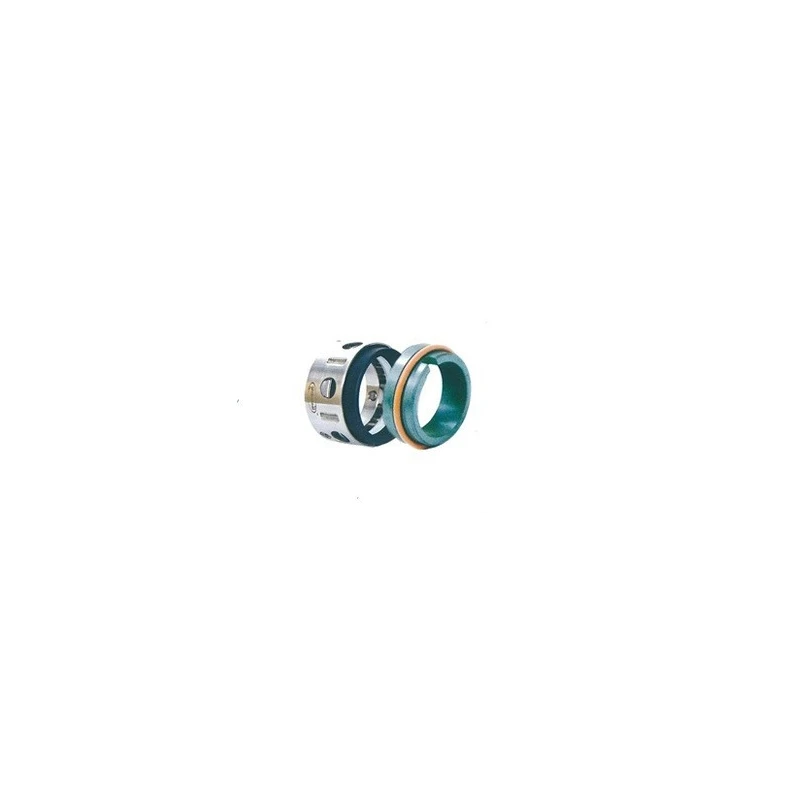

Multi Spring Seal B86 Series

Name: Multi Spring Seal B86 Series
Brand: ESPL
SKU: ABGOO
Price: 11.59 USD
Availability: InStock



SKU ABGOO Category Spring Seals Brand ESPL Condition New

Specifications

Pressure	Unbalance 10 Bar (kg/cm 2) & Balance upto 35 bar (kg/cm 2)
Temperature	-60 C to 260 C
Shaft Diameter	12 mm To 100 mm
Shaft Speed	Upto 6000 RPM According To Shaft Size & Pressure.
Hardware	SS 316 SS 304 Hast - C Monel Alloy -20
Face Material	(Dynamic Ring & Stationary Ring ) Carbon Ceramic (99.5%). Silicon Carbide Tungsten Carbide Chrome Cast Steel & Which Are Suitable For Fluid.
Secondary Seal	GFT PTFE FEP Grafoil.

Key Features

Easy to install and easy to remove
Dimensionally accurate
Long-lasting

Product Description

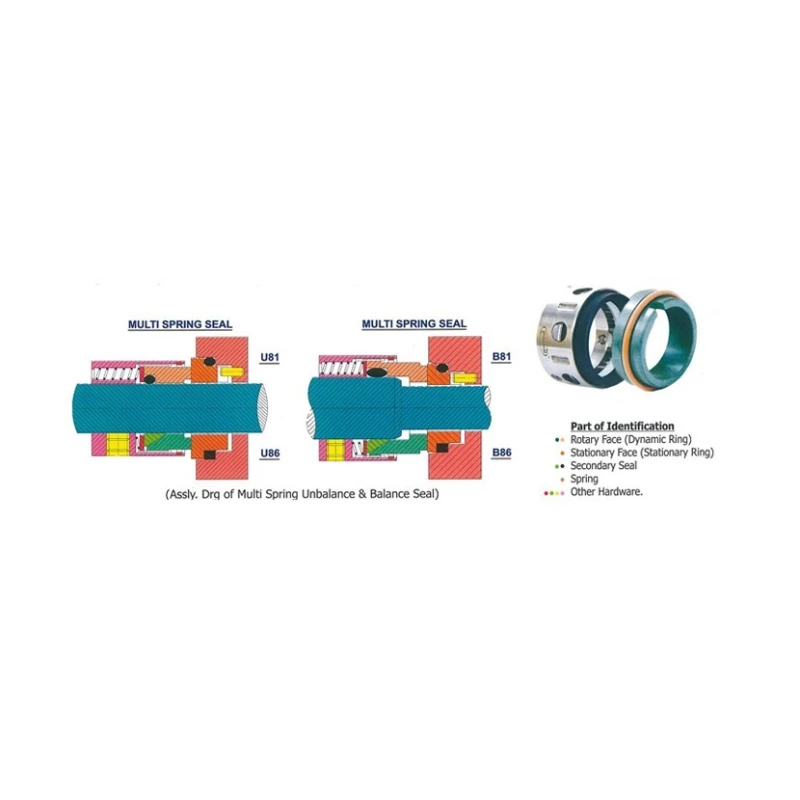

Multi Spring Seal B86 Series: we are top leading multi-spring seals supplier in India. We offer compact design multi-spring seals built with high-grade raw materials.We offer the high-quality multi-spring seal mainly used in the chemical and petrochemical industries. Our expert team is enabling us to fabricate customized multi-spring seals for various industrial applications. The multi-spring seal is a uniform face-loading seal. Under all operating conditions, the pressure on the seal face remains uniform. The multi-spring seal is independent of the direction of rotation. All parts are interchangeable. It is ideal for stock rationalization.We have designed the U81 and U86, B81 and B86 series for the high-pressure application. Its compact design makes it ideal for all types of centrifugal pumps. A snap ring holds together all components, lead easy installation and removal of the components.Seal CharacteristicsInside MountedSingle ActingUnbalanced & BalancedIndependent Of the Direction Of RotationApplication Petrochemicals Petroleum Refinery General Chemicals

Located inside
Balanced/ unbalanced

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The pressure rating for the unbalanced configuration is up to 10 Bar (kg/cm²), while the balanced configuration can handle up to 35 Bar (kg/cm²).

It can operate in a temperature range from -60°C to 260°C.

The maximum shaft speed is up to 6000 RPM, depending on the shaft size and pressure.

The face materials for the dynamic and stationary rings include Carbon Ceramic (99.5%), Silicon Carbide, Tungsten Carbide, and Chrome Cast Steel, suitable for fluid applications.

The secondary seals are made of GFT, PTFE, FEP, and Grafoil.

Yes, it is designed for high-pressure applications, particularly in the petrochemical and chemical industries.

A snap ring holds together all components, facilitating easy installation and removal.

Yes, it can be configured as either balanced or unbalanced, depending on the application requirements.

It is particularly ideal for all types of centrifugal pumps due to its compact design.

The multi-spring design ensures that the pressure on the seal face remains uniform under all operating conditions.

This model is mainly used in the chemical and petrochemical industries, particularly in petroleum refining and general chemicals.
