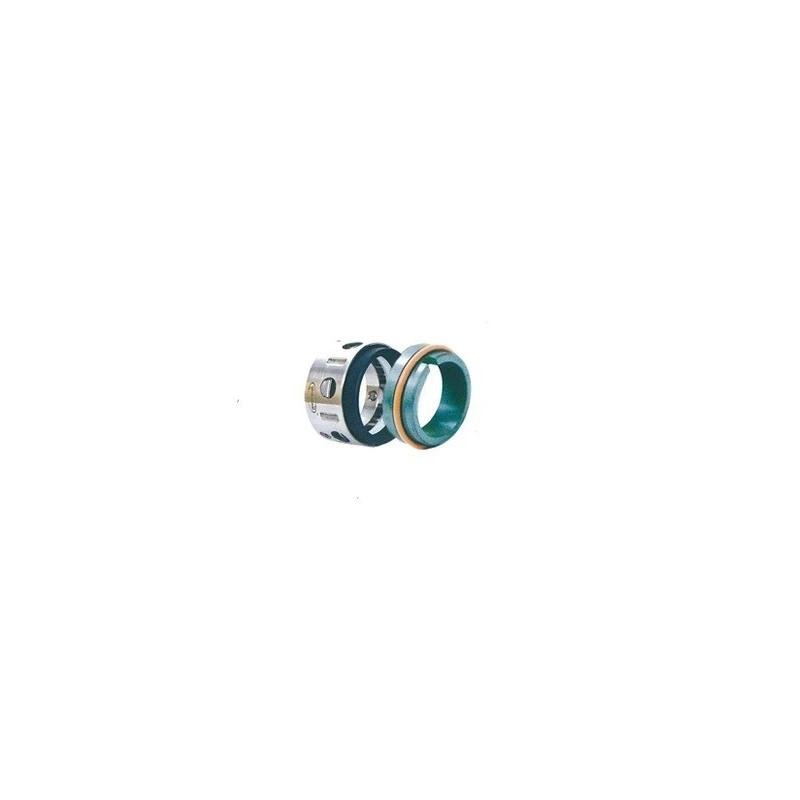

Multi Spring Seal U81 Series
Specifications
| Pressure | Unbalance 10 Bar (kg/cm 2) & Balance upto 35 bar (kg/cm 2) |
|---|---|
| Temperature | -60 C to 260 C |
| Shaft Diameter | 12 mm To 100 mm |
| Shaft Speed | Upto 6000 RPM According To Shaft Size & Pressure. |
| Hardware | SS 316 SS 304 Hast - C Monel Alloy -20 |
| Face Material | (Dynamic Ring & Stationary Ring ) Carbon Ceramic (99.5%). Silicon Carbide Tungsten Carbide Chrome Cast Steel & Which Are Suitable For Fluid. |
| Secondary Seal | Viton EPDM Silicon Aflas EPR Kalrez TCV |
Key Features
- Easy to install and easy to remove
- Dimensionally accurate
- Long-lasting
Product Description

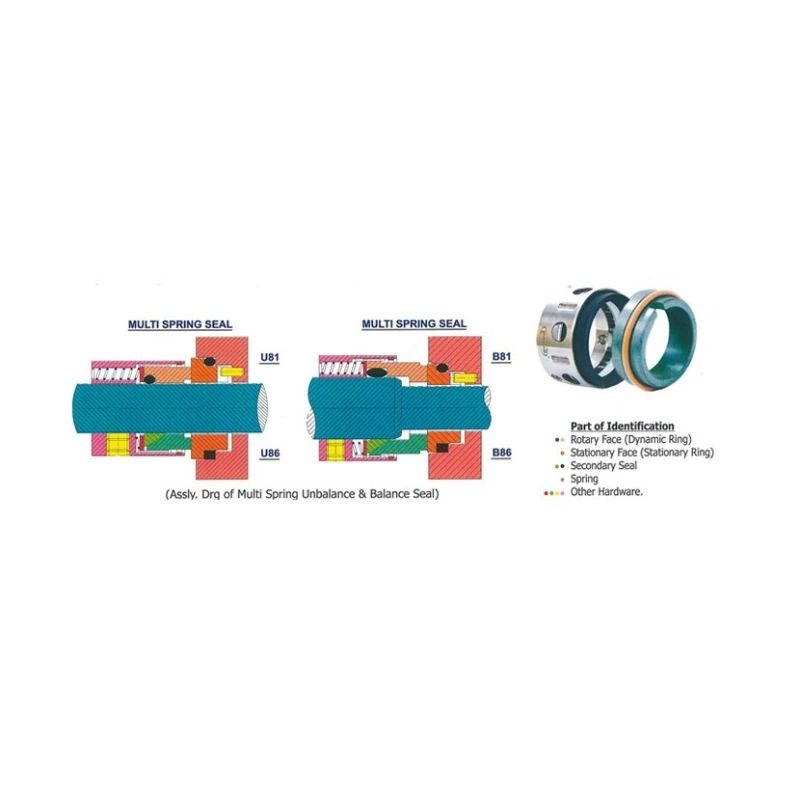

Multi Spring Seal U81 Series: we are top leading multi-spring seals supplier in India. We offer compact design multi-spring seals built with high-grade raw materials.We offer the high-quality multi-spring seal mainly used in the chemical and petrochemical industries. Our expert team is enabling us to fabricate customized multi-spring seals for various industrial applications. The multi-spring seal is a uniform face-loading seal. Under all operating conditions, the pressure on the seal face remains uniform. The multi-spring seal is independent of the direction of rotation. All parts are interchangeable. It is ideal for stock rationalization.We have designed the U81 and U86, B81 and B86 series for the high-pressure application. Its compact design makes it ideal for all types of centrifugal pumps. A snap ring holds together all components, lead easy installation and removal of the components.Seal CharacteristicsInside MountedSingle ActingUnbalanced & BalancedIndependent Of the Direction Of RotationApplication Petrochemicals Petroleum Refinery General Chemicals
- Located inside
- Balanced/ unbalanced
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pressure rating for the unbalanced configuration is 10 Bar (kg/cm²), while the balanced configuration can handle up to 35 Bar (kg/cm²).
This model operates within a temperature range of -60°C to 260°C.
The maximum shaft speed is up to 6000 RPM, depending on the shaft size and pressure.
The face materials include Carbon Ceramic (99.5%), Silicon Carbide, Tungsten Carbide, and Chrome Cast Steel, which are suitable for fluid applications.
The secondary seals can be made from Viton, EPDM, Silicon, Aflas, EPR, Kalrez, and TCV materials.
Yes, it is designed for high-pressure applications, particularly in the petrochemical and petroleum refinery industries.
The design includes a snap ring that holds all components together, allowing for easy installation and removal.
This seal is mainly used in chemical and petrochemical industries, particularly in centrifugal pumps.
Yes, it can be configured as both balanced and unbalanced, depending on the application requirements.
The hardware is made from materials such as SS 316, SS 304, Hastelloy, C, Monel Alloy -20.
