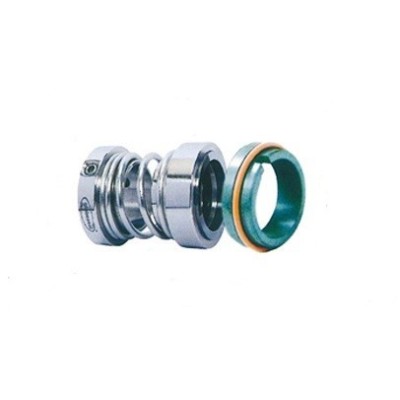

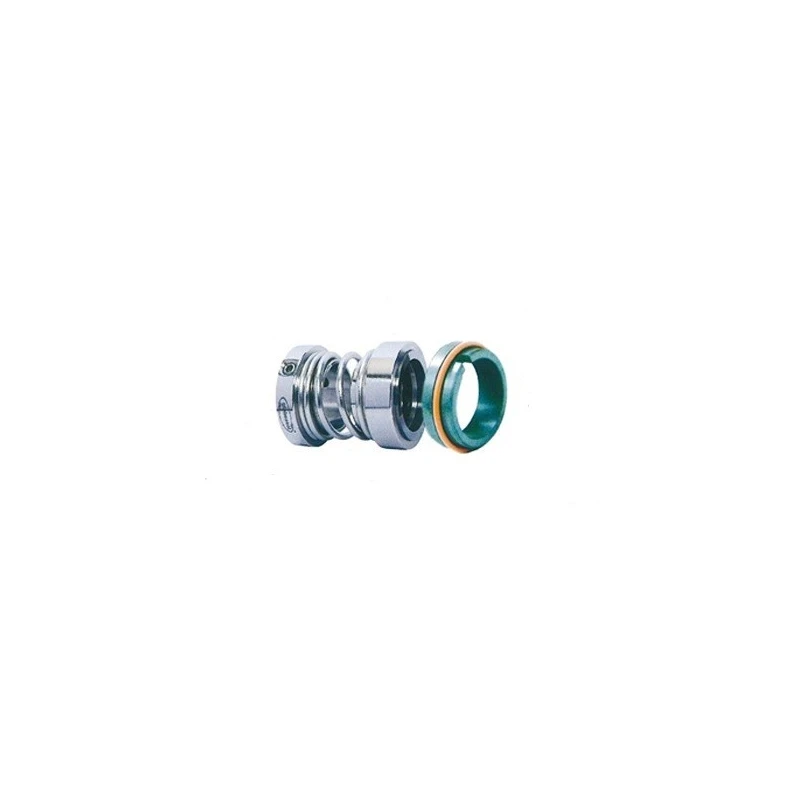

Single Spring Unbalance Seal Series GSS-151
Specifications
| Pressure | 10 Bar (kg/cm 2) |
|---|---|
| Temperature | -45c To 200c |
| Shaft Diameter | 10 mm To 100 mm |
| Shaft Speed | Upto 6000 RPM According To Shaft Size & Pressure. |
| Hardware | SS-316 SS-304 Has!-C Menol Alloy-20 |
| Face Material | Carbon Ceramic (99.5%) SIC T.C. |
| Secondary Seal | Viton EPDM Silicon EPR. Kalrez |
Key Features
- High Durability
- High performance
Product Description

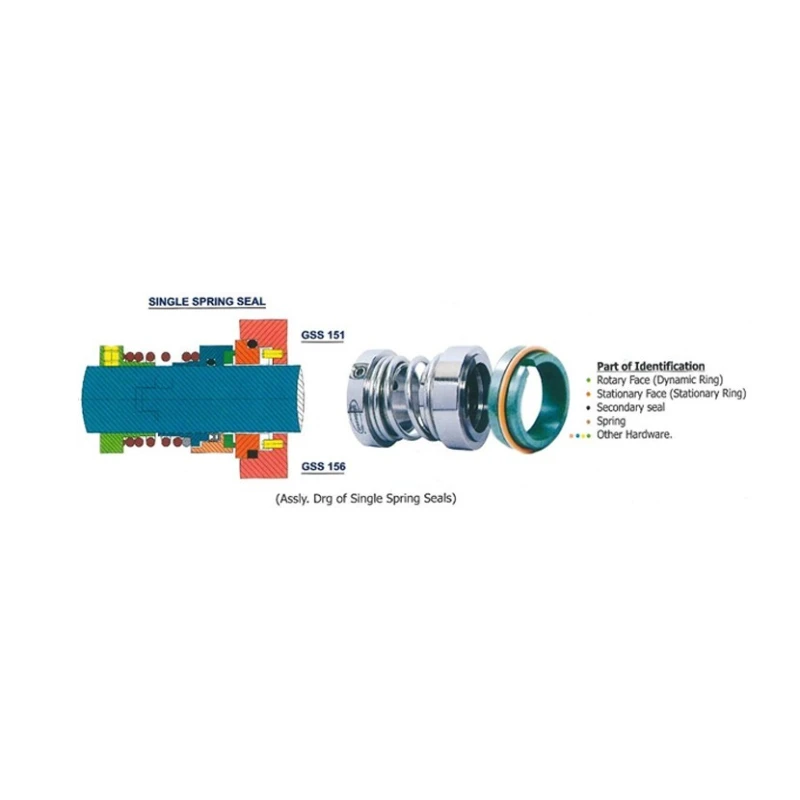

Single Spring Unbalance Seal Series (GSS-151): custom design single coil spring seals. We are a prime manufacturer & supplier of single coil spring seals in India.We provide specially designed GSS 151 series of seals for various industrial applications. It is an internally mounted unbalanced single coil spring seal, driven by the clutch. The seal contains a drive ring and drives collar. If the spring is clogged, the rotary will be driven reliably. The motion transmits by the shaft to springs, driven by the rotary. The seals are mounted internally.All parts of the single coil springs are interchangeable. We can convert the series GSS 151 to GSS 156 by changing the secondary seal and dynamic ring. It is an ideal principle for stock rationalization.The seal has wide applications in various industries. It is used in petrochemicals, general chemicals, dirty water and slurry, and petroleum refineries.Seal CharacteristicsInside Mounted Single Acting unbalanced Independent Of Direction Of RotationApplication High Hydrocarbon Petrochemicals General Chemicals Dirty Water & Slurry Petroleum Refinery.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The GSS-151 seal has a pressure rating of 10 Bar (kg/cm²).
This seal can operate in a temperature range from -45°C to 200°C.
The maximum shaft speed for this seal is up to 6000 RPM, depending on the shaft size and pressure.
The hardware of the GSS-151 seal is made from SS-316, SS-304, Hastelloy C, and Alloy-20.
The face material of this seal consists of Carbon Ceramic (99.5%) and Silicon Carbide (SIC) with Tungsten Carbide (T.C.).
Compatible secondary seals for the GSS-151 include Viton, EPDM, Silicon, EPR, and Kalrez.
This model is designed for internal mounting and is a single acting unbalanced seal that operates independently of the direction of rotation.
Yes, the GSS-151 seal can be converted to the GSS-156 by changing the secondary seal and dynamic ring.
This seal is suitable for various industries, including petrochemicals, general chemicals, dirty water and slurry, and petroleum refineries.
The GSS-151 features a custom design with single coil springs that are interchangeable, allowing for stock rationalization.
The GSS-151 seal operates by having the rotary motion transmitted by the shaft to the springs, which are driven by the rotary action.
