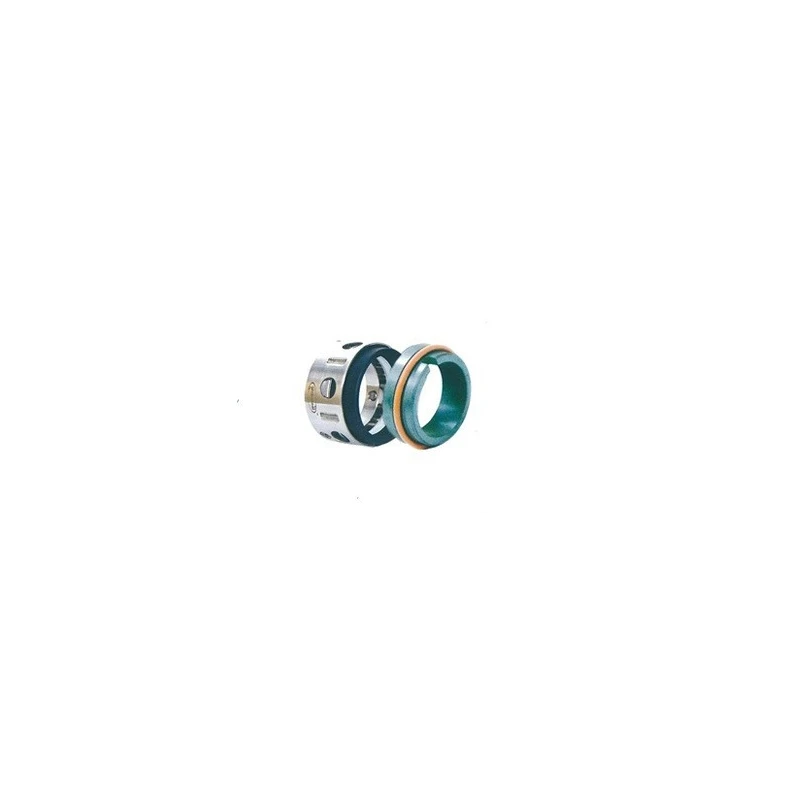

Multi Spring Seal U86 Series
Specifications
| Pressure | Unbalance 10 Bar (kg/cm 2) & Balance upto 35 bar (kg/cm 2) |
|---|---|
| Temperature | -60 C to 260 C |
| Shaft Diameter | 12 mm To 100 mm |
| Shaft Speed | Upto 6000 RPM According To Shaft Size & Pressure. |
| Hardware | SS 316 SS 304 Hast - C Monel Alloy -20 |
| Face Material | (Dynamic Ring & Stationary Ring ) Carbon Ceramic (99.5%). Silicon Carbide Tungsten Carbide Chrome Cast Steel & Which Are Suitable For Fluid. |
| Secondary Seal | GFT PTFE FEP Grafoil. |
Key Features
- Easy to install and easy to remove
- Dimensionally accurate
- Long-lasting
Product Description

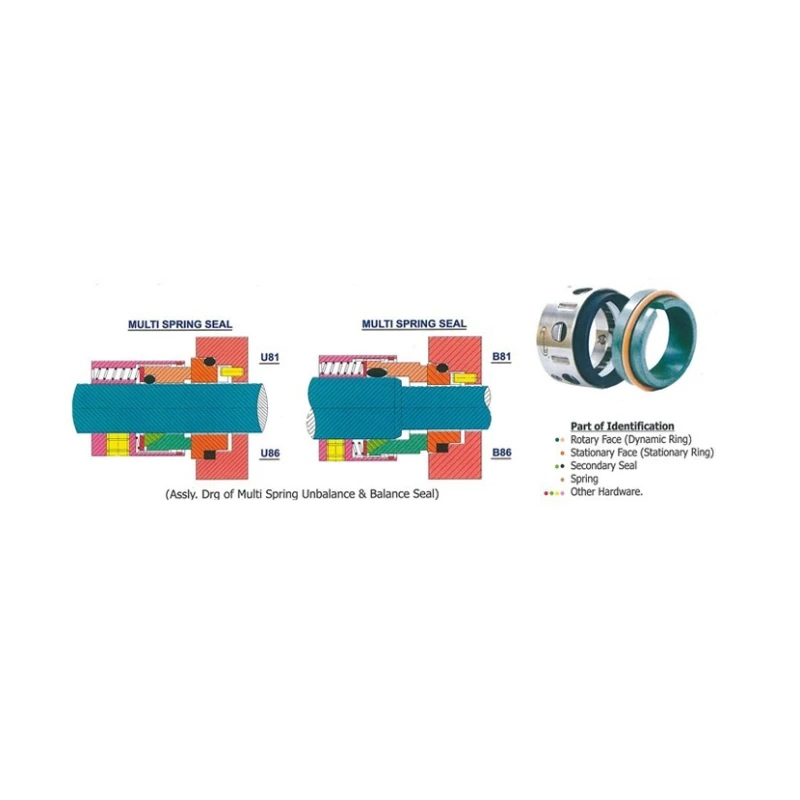

Multi Spring Seal U86 Series: we are top leading multi-spring seals supplier in India. We offer compact design multi-spring seals built with high-grade raw materials.We offer the high-quality multi-spring seal mainly used in the chemical and petrochemical industries. Our expert team is enabling us to fabricate customized multi-spring seals for various industrial applications. The multi-spring seal is a uniform face-loading seal. Under all operating conditions, the pressure on the seal face remains uniform. The multi-spring seal is independent of the direction of rotation. All parts are interchangeable. It is ideal for stock rationalization.We have designed the U81 and U86, B81 and B86 series for the high-pressure application. Its compact design makes it ideal for all types of centrifugal pumps. A snap ring holds together all components, lead easy installation and removal of the components.Seal CharacteristicsInside MountedSingle ActingUnbalanced & BalancedIndependent Of the Direction Of RotationApplication Petrochemicals Petroleum Refinery General Chemicals
- Located inside
- Balanced/ unbalanced
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pressure rating for the unbalanced configuration is up to 10 Bar, while the balanced configuration can handle pressures up to 35 Bar.
This model operates effectively within a temperature range of -60°C to 260°C.
The maximum shaft speed is up to 6000 RPM, depending on the shaft size and pressure.
The face materials for the dynamic and stationary rings include Carbon Ceramic (99.5%), Silicon Carbide, Tungsten Carbide, and Chrome Cast Steel, suitable for fluid applications.
The secondary seal is made from GFT PTFE FEP Grafoil.
A snap ring holds all components together, making installation and removal easy.
Yes, the U86 Series is designed for high-pressure applications, particularly in the chemical and petrochemical industries.
This seal is primarily used in the petrochemical, petroleum refinery, and general chemical industries.
The uniform face-loading feature ensures that the pressure on the seal face remains consistent under all operating conditions, enhancing performance.
Yes, all parts of this model are interchangeable, which aids in stock rationalization.
