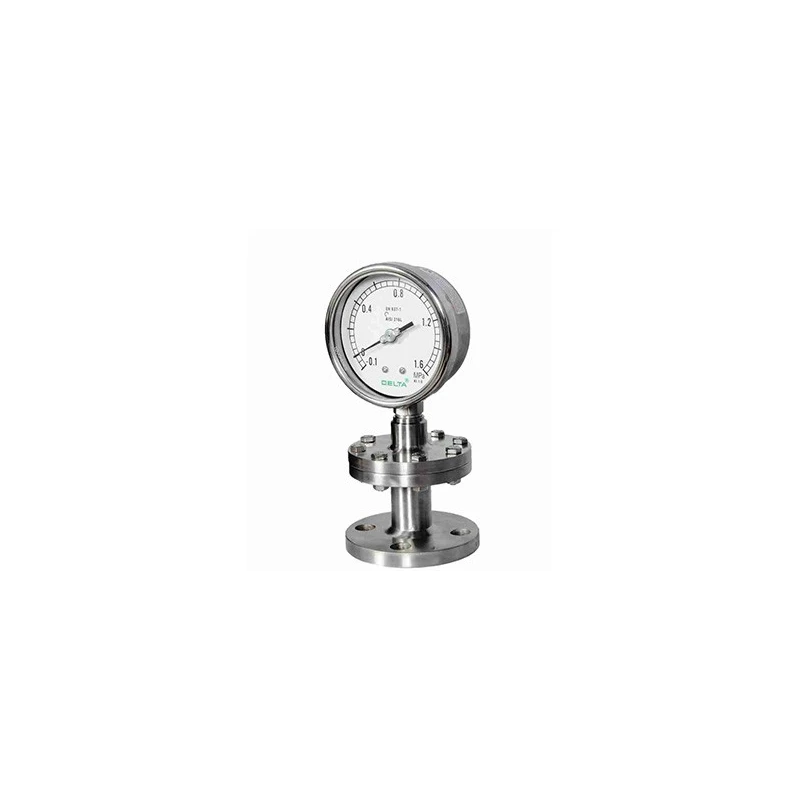

Diaphragm Seals Flange-i Section
Specifications
| Range | -1 kg/cm to 400 kg/cm |
|---|---|
| Process Temperature | - 20C to 200C for PTFE lined - 40C to 345C for without PTFE lined |
| Process connection | Flange (as per DIN/BS/ANSI/JIS) Finish 125 - 250 AARH |
| Diaphragm | AISI 316L SS |
| Instrument Connection | 3/8 BSP (F) |
| Top Chamber | AISI 304 SS |
| Nuts / Bolts | Carbon Steel Nickel Plated |
| Fill Fluid | Silicon Oil - DC 200 upto -40 to 200C |
Key Features
- Continuous Duty
- Extension To Facilitate Smaller Flanged Connection
- Ideal For General Purpose Application
Product Description
Diaphragm seals are provided in the instruments like pressure gauges, switches, transmitters in order to isolate the sensing element from the main service due to its corrosive, viscous and sedimented nature and To avoid clogging and solidifca on. This can be widely used with corrosive Treatment/protection & various ?anged sizes.
- Suitable For An Corrosive Protection
- For Flange size 1 and below
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The diaphragm seal has a pressure range of -1 kg/cm to 400 kg/cm.
It features a flange connection as per DIN/BS/ANSI/JIS standards, with a finish of 125 - 250 AARH.
The diaphragm is constructed from AISI 316L stainless steel.
The instrument connection size for this model is 3/8 BSP (F).
The top chamber is made of AISI 304 stainless steel, while the nuts and bolts are carbon steel nickel plated.
The fill fluid used is silicon oil, specifically DC 200, which operates effectively from -40°C to 200°C.
It is suitable for isolating sensing elements in pressure instruments from corrosive, viscous, and sedimented media to prevent clogging and solidification.
Yes, it is designed for corrosive protection and can be widely used with various flanged sizes.
This model is ideal for general-purpose applications with a flange size of 1 and below, facilitating smaller flanged connections.
Installation should comply with standard flange connection practices as per DIN/BS/ANSI/JIS specifications.
Diaphragm seals are used to isolate the sensing element from the main service to protect against corrosive and viscous media, preventing clogging and solidification.
