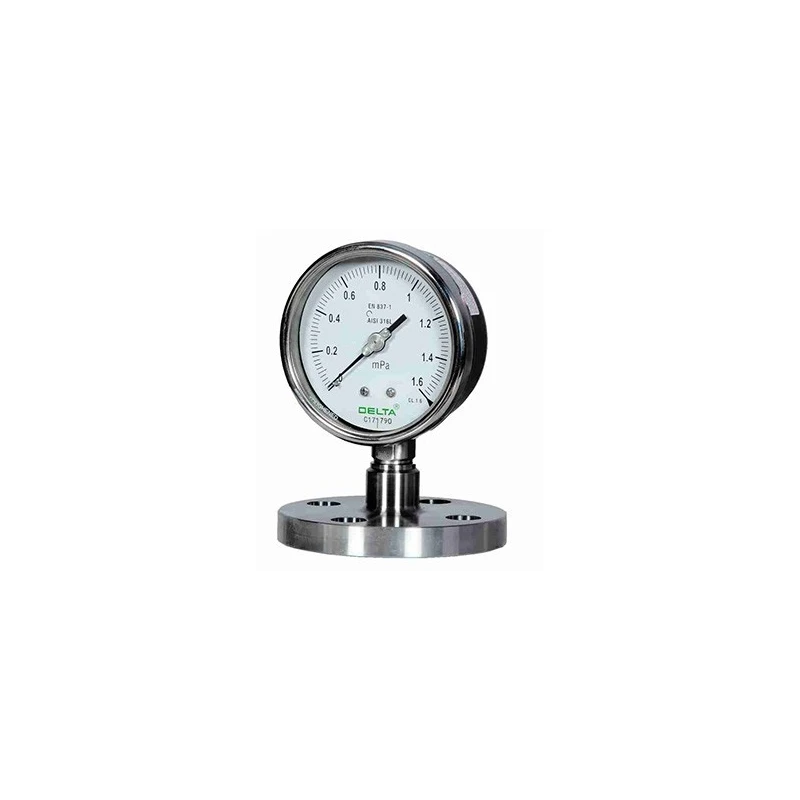

Diaphragm Seal Direct Flanged Flushed Type
Specifications
| Range | -1 kg/cm to 60 kg/cm |
|---|---|
| Process Temperature | -40C to 200C or as per ll uid |
| Diaphragm | AISI 316L SS |
| Fill Fluid | Silicon Oil - DC 200 |
| Seal Chamber | AISI 316 SS |
Key Features
- Welded Diaphragm
- Flush Diaphragm Provided
- Easy Flushing
- Most Suitable For Slurry & Corrosive Service
Product Description
Diaphragm seals are provided in the instruments like Pressure gauges, switches, and transmitters in order to isolate the sensing element from the main service due To its corrosive, viscous and sedimented nature and to Avoid clogging and solidifca on. This kind of seals Are widely used in viscous & corrosive services Where fushing is required periodically & frequently.
- Std version compatible with Delta model IP for NS 100 & 150mm
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The diaphragm seal has a pressure range of -1 kg/cm to 60 kg/cm.
It can handle process temperatures up to 200°C, or as per the fluid specifications.
The diaphragm is made from AISI 316L stainless steel.
The fill fluid utilized is Silicon Oil - DC 200.
The seal chamber is constructed from AISI 316 stainless steel.
It is suitable for viscous and corrosive services where flushing is required periodically and frequently.
This model features a direct flushed type seal with a flanged design for easy mounting.
Diaphragm seals are used to isolate the sensing element from the main service to prevent clogging and solidification due to corrosive, viscous, and sedimented nature of the media.
It features a welded diaphragm that provides easy flushing, making it suitable for slurry and corrosive services.
Key features include a pressure range of -1 kg/cm to 60 kg/cm, a process temperature range of -40°C to 200°C, and materials like AISI 316L SS for the diaphragm and AISI 316 SS for the seal chamber.
It prevents clogging by isolating the sensing element from the main service, which is essential for handling corrosive and viscous media.
