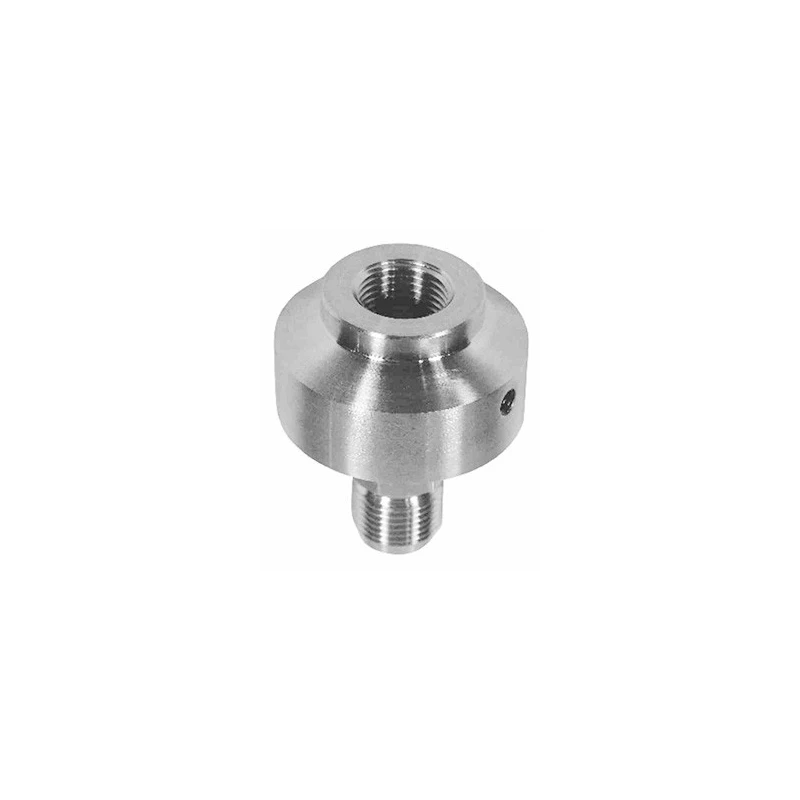

Diaphragm Sealed Heavy Duty Mini Seal Type
Specifications
| Mounting | Direct (Without capillary) |
|---|---|
| Body | AISI 316 SS |
| Process Temperature | -40C to 200C or as per ll uid |
| Process connection | 1/2 BSP (M) |
| Diaphragm | AISI 316L SS |
| Instrument Connection | 1/2 BSP (F) |
| Fill Fluid | Silicon Oil - DC 200 |
| Seal Type | S1 Equal to -1 kg/cmz to 0 & 0 to 4 kg/cmz (Standard) |
Key Features
- Direct Coupled Type
- Two Piece Construction
- Ideal For General Purpose Application
- Robust Design
Product Description
Diaphragm Sealed Heavy Duty Mini Seal Type Diaphragm Seals Are Designed To Isolate The Sensing Element Of Pressure Gauges And Pressure Switches.
- All SS Construction
- Std. version compatible with Delta model : IP
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The process temperature range for this model is -40°C to 200°C, or as per the fluid specifications.
This diaphragm seal features a body made from AISI 316 stainless steel and a diaphragm made from AISI 316L stainless steel.
It has a process connection of 1/2 BSP (M) and an instrument connection of 1/2 BSP (F).
The fill fluid used in this model is silicon oil, specifically DC 200.
This model is designed for direct mounting without the use of a capillary.
The seal type is S1, which is rated for pressures from -1 kg/cm² to 0 and from 0 to 4 kg/cm² (standard).
Yes, it is designed to isolate the sensing element of pressure gauges and pressure switches.
It has a robust design and is a direct coupled type with two-piece construction, making it suitable for general-purpose applications.
This diaphragm seal is intended for general-purpose applications where isolation of sensing elements is required.
Yes, this model is categorized as a customized product, and specific requirements or configurations should be confirmed through an enquiry.
The specific dimensions and weight of this diaphragm seal are not provided in the available data.
