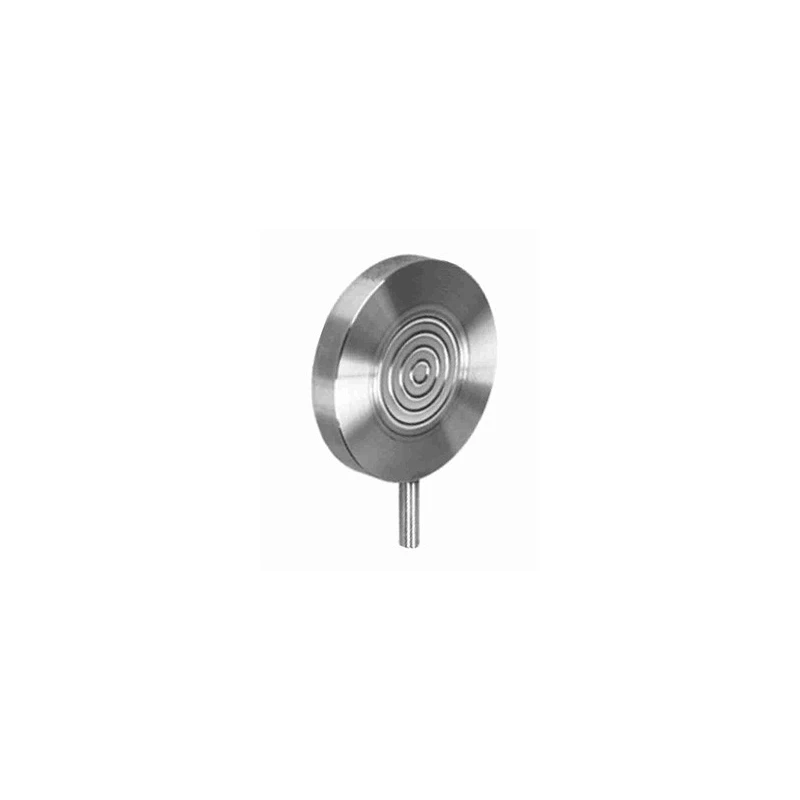

Diaphragm Sealed Pan Cake Wafer Type
Specifications
| Range | 1 kg/cmz to 160 kg/cm2 |
|---|---|
| Process Temperature | -40C to 200C or as per ll uid |
| Process connection | Flange (As per ANSI/BS/DIN/JIS)| Suitable for 2 & above |
| Diaphragm | AISI 316L SS |
| Instrument Connection | 1/4 NPT (F) |
| Pan Cake Body/Flange | AISI 316 55 |
Key Features
- WELDED DIAPHRAGM
- SUITABLE FOR SLURRY & HIGH VISCOUS SERVICE
- EASY TO CLEAN
- FLUSH FITMENT IN PIPELINE
Product Description
Diaphragm Seals Are Provided In The Instruments Like Pressure Gauges, Switches, and Transmitters In Order To Isolate The Sensing Element From The Main Service Due To Its Corrosive, Viscous And Sedimented Nature And To Avoid Clogging And Solidification. These Kind Of Seals Are Widely Used In The Viscous & Corrosive Services Where Flushing Is Required Periodically & Frequently.
- FLUSHING RING, FLANGE & DIAPHRAGM ARE AVAILABLE IN
- VARIOUS TYPE OF SS & EXOTIC MATERIALS.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The diaphragm seal has a pressure range from 1 kg/cm² to 160 kg/cm².
The diaphragm is made of AISI 316L stainless steel, while the pancake body/flange is constructed from AISI 316 stainless steel.
It can handle process temperatures from -40°C to 200°C, or as specified for the fluid.
It features a flange connection that is suitable for ANSI, BS, DIN, or JIS standards, designed for sizes 2 inches and above.
The instrument connection for this diaphragm seal is 1/4 NPT (F).
This model is suitable for viscous and corrosive services where periodic flushing is required to avoid clogging and solidification.
It features a welded diaphragm that allows for easy cleaning and flush fitment in pipelines.
Yes, the flushing ring and flange can be provided in various types of stainless steel and exotic materials.
Diaphragm seals isolate the sensing element from the main service to prevent clogging and solidification due to corrosive or viscous media.
It is specifically designed to handle high viscous services, ensuring effective operation without clogging.
This diaphragm seal features a compact design with a pancake shape, making it suitable for tight spaces in industrial applications.
Yes, this diaphragm seal is a customized product, and specific requirements should be confirmed through an enquiry.
