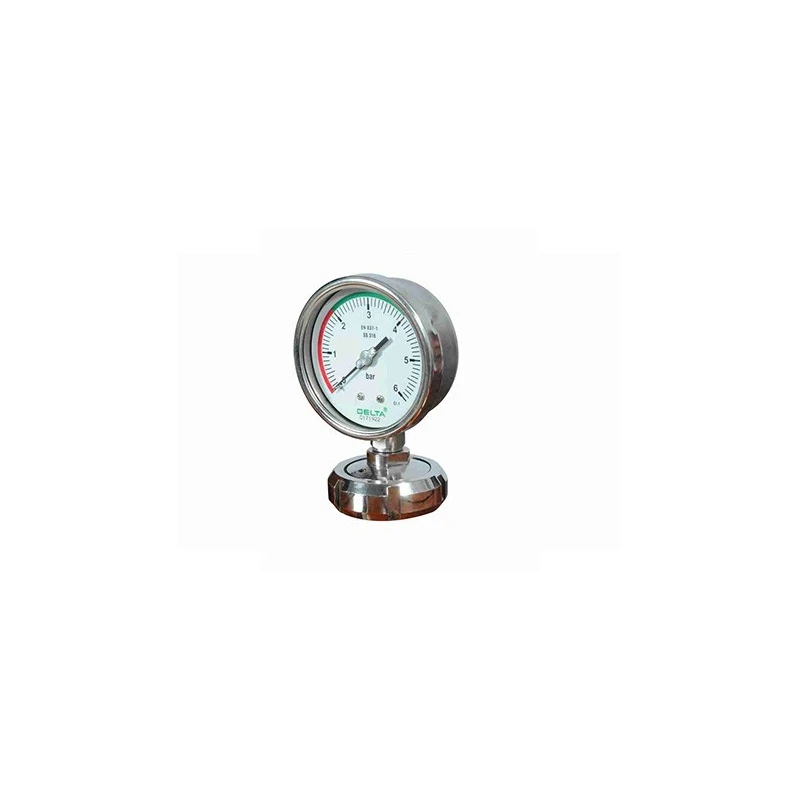

Diaphragm Seal Flush Sanitary Type

SKU AAHIS Category Diaphragm Seals Brand ESPL

Specifications

Range Refer range table with Nominal Sizes
Mounting Direct (Without capillary)
Body AISI 316 SS
Process Temperature 10C to 150C or as per ll uid
Process connection As per DIN 11851| SMS| RJT| IDF
Diaphragm AISI 316L SS
Instrument Connection BSP (F)
Fill Fluid Glycerin
Unit Nut AISI 316 SS

Key Features

  • ALL 316 STAINLESS STEEL
  • LASER WELDED FLUSH DIAPHRAGM
  • QUICK CONNECT / DISCONNECT FOR EASY CLEANING
  • MATCHING DIN, SMS, RJT ETC. STANDARDS

Product Description

Diaphragm Seals Are Provided In The Instruments Like Pressure Gauges, Switches, and Transmitters In Order To Isolate The Sensing Element From The Main Service Due To Its Corrosive, Viscous And Sedimented Nature And To Avoid Clogging And Solidification. These Seals Are Specially Designed For Applications Where High Purity In The Process Is Essential.- Typically In Food, Beverages, Dairy And Pharmaceutical Industries.

  • STD VERSION COMPATIBLE WITH DELTA MODEL IP FOR NS 50 TO 150MM

Comments (0)

Related Products

$12.27
($12.27 per piece)
Tax included
Quantity
Delivery Time Delivered within 0-3 days
