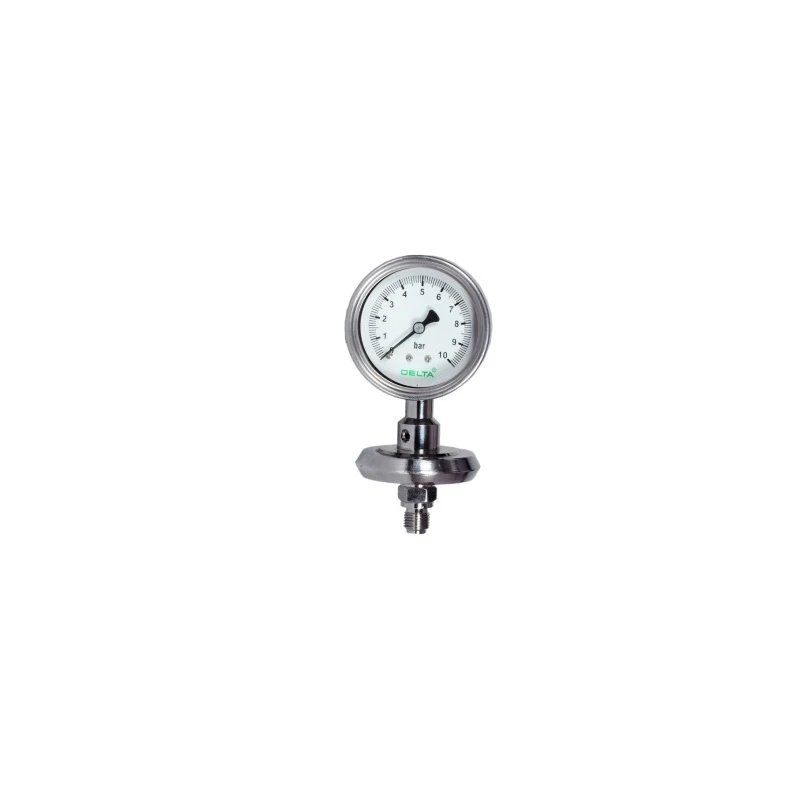

Direct Coupled Type Diaphragm Seal
Specifications
| Range | -1 kg/cm to 70 kg/cmz |
|---|---|
| Body | AISI 316 SS |
| Process Temperature | - 40C to 200C or as per ll uid |
| Process connection | 1/4BSP (M) |
| Diaphragm | AISI 316L SS |
| Instrument Connection | 1/4 BSP (F) |
| Fill Fluid | Silicon Oil - DC 200 |
Key Features
- Compact Design
- Single Piece Construction
- Ideal for General Purpose Application
- Low Cost Solution
Product Description
Diaphragm Seal Direct Coupled Type (Compact Design) Diaphragm seals are provided in the instruments like pressure gauges, switches, and Transmitters in order to isolate the sensing element from the main service due To its corrosive, viscous, and sedimented nature and to avoid clogging and solidifcation.
- Std. version compatible with Delta model : IP for NS 50 to 63mmRange
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The diaphragm seal has a measurement range from -1 kg/cm² to 70 kg/cm².
The body is made from AISI 316 stainless steel, and the diaphragm is constructed from AISI 316L stainless steel.
It can handle process temperatures ranging from -40°C to 200°C, or as per fluid specifications.
The fill fluid used in this diaphragm seal is Silicon Oil - DC 200.
The process connection is 1/4 BSP (M), and the instrument connection is 1/4 BSP (F).
This model is suitable for general-purpose applications where pressure measurement is required, particularly in corrosive, viscous, and sedimented media.
It features a compact design with a single-piece construction, making it ideal for various applications.
Diaphragm seals are used to isolate the sensing element from the main service to prevent clogging and solidification due to the nature of the media.
Key features include a measurement range of -1 kg/cm² to 70 kg/cm², compatibility with specific instruments, and a robust construction using AISI 316 SS.
Installation should ensure proper alignment of the process and instrument connections, following the specifications for the connections provided.
The product details do not specify maintenance requirements; however, regular checks for fluid integrity and connection tightness are recommended.
