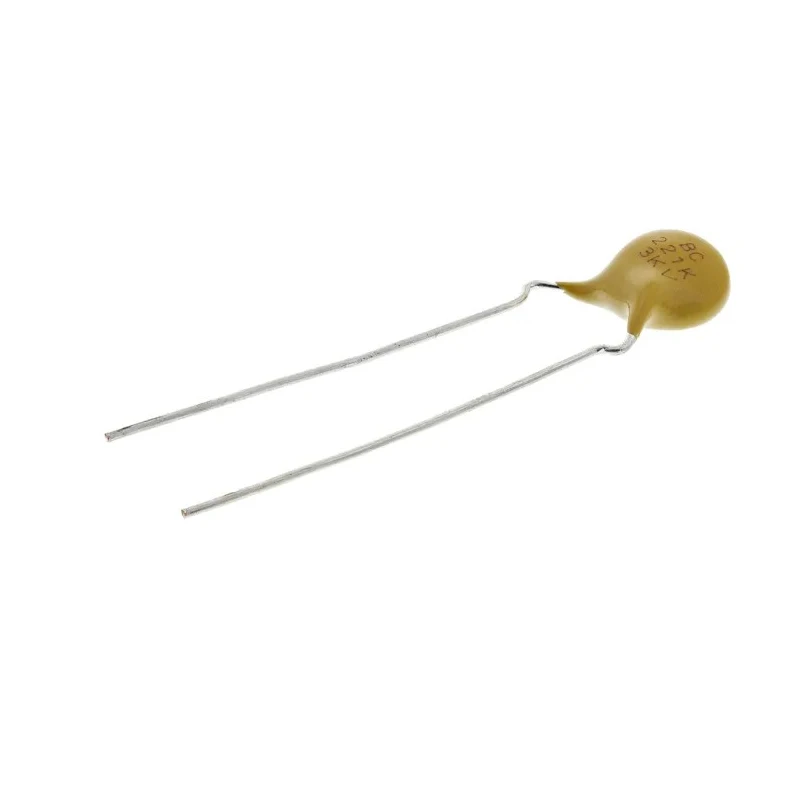

Vishay Single Layer Ceramic Capacitor 220 pF 3 kV dc Through Hole Radial F Series S3N Dielectric ±10% F221K29S3NR63K7R
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 3kV dc |
| Diameter | 7.5mm |
| Brand | Vishay |
| Height | 40mm |
| Model | F221K29S3NR63K7R |
| Width | 330mm |
| Mount Type | Through Hole |
| Series | F |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 220pF |
| Minimum Operating Temperature | -30°C |
| Terminal type | Radial |
| Dissipation Factor | 0.2% |
| Standards/Approvals | EC, RoHS |
| Package/Case | Disc |
| Pin Count | 2 |
| Dielectric | S3N |
| Suppression Class | Class I |
Key Features
- Uses S3N Class 1 ceramic dielectric providing low losses and high capacitance in compact disc form.
- Rated for a maximum operating temperature of 125°C suitable for demanding electronic applications.
- Equipped with radial tinned copper kinked leads sized 0.6 mm or 0.8 mm for secure through hole mounting.
- Suitable for switched mode power supplies, high frequency ballast, snubber circuits, and high voltage electronic uses.
- Features epoxy resin encapsulation meeting UL 94 V-0 flammability standard for enhanced safety.
- Adheres to IEC 60384-9 and EIA 198 standards ensuring compliance and quality.
- Compact physical size with 7.5 mm diameter disc and 40 mm height.
- Low dissipation factor of 0.2% ensures efficient energy handling and minimal heat generation.
Product Description
Vishay F221K29S3NR63K7R single layer ceramic capacitor is a high quality, Class 1 ceramic disc capacitor designed for electronic circuits requiring stability, low losses, and high capacitance density. It has a capacitance value of 220 pF and a voltage rating of 3 kV dc, making it suitable for high voltage applications.
The capacitor features the S3N dielectric material within Vishay's F series, optimized for switched mode power supplies, high frequency ballast, and snubber circuits usage. It includes radial terminal leads of tinned copper, kinked for easy through hole PCB mounting, with lead diameters of 0.6 or 0.8 mm and spacing options of 5 mm, 7.5 mm, or 10 mm.
Its epoxy resin encapsulation meets UL 94 V-0 flame retardant classification, supporting safety in rigorous industrial environments. Operating temperature ranges from -30°C to a maximum of 125°C, suitable for a wide thermal envelope encountered in industrial and commercial electronics manufacturing.
This capacitor complies with IEC 60384-9 and EIA 198 standards, and it is RoHS compliant, ensuring environmental and safety compliance.
Compact physical dimensions include a disc diameter of 7.5 mm and a height of 40 mm, enabling installation in space-constrained designs. The capacitor provides a dissipation factor of 0.2%, ensuring low losses and efficient operation.
Uses S3N Class 1 ceramic dielectric for high reliability and low loss. Epoxy resin encapsulation meets UL 94 V-0 flammability standard. Radial tinned copper leads for robust through hole mounting. Wide temperature range of -30°C to 125°C for versatile applications.
Suitable for SMPS, HF ballast, snubber, and high voltage circuits. Compliance with IEC 60384-9, EIA 198, RoHS standards. Disc package with 7.5 mm diameter and 40 mm height. Low dissipation factor of 0.2% optimizes efficiency.
This Vishay F series capacitor is essential for industrial, laboratory, manufacturing, and power electronics applications demanding reliable performance in compact form factors. Explore the extensive Vishay capacitors selection at EnvMart for proven quality and technical performance.
Explore more products in our Single Layer Ceramic Capacitors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 220 pF.
It has a maximum voltage rating of 3 kV dc.
The capacitor has a diameter of 7.5 mm and a height of 40 mm.
The operating temperature range is from -30°C to a maximum of 125°C.
It uses S3N Class 1 ceramic dielectric material.
The dissipation factor is 0.2%, ensuring efficient energy handling.
This capacitor is designed for through hole mounting with radial tinned copper leads.
It complies with IEC 60384-9 and EIA 198 standards, and is RoHS compliant.
It is suitable for switched mode power supplies, high frequency ballast, and snubber circuits.
The tolerance of this capacitor is ±10%.
It features epoxy resin encapsulation that meets UL 94 V-0 flammability standards.
This capacitor has a pin count of 2.
