TE Connectivity MULTILOCK 070 Series Female Crimp Terminal 9A Current, 26 AWG Min, 18 AWG Max Wire Size 175027-6

Free Delivery in India | Lowest Global Shipping Charges

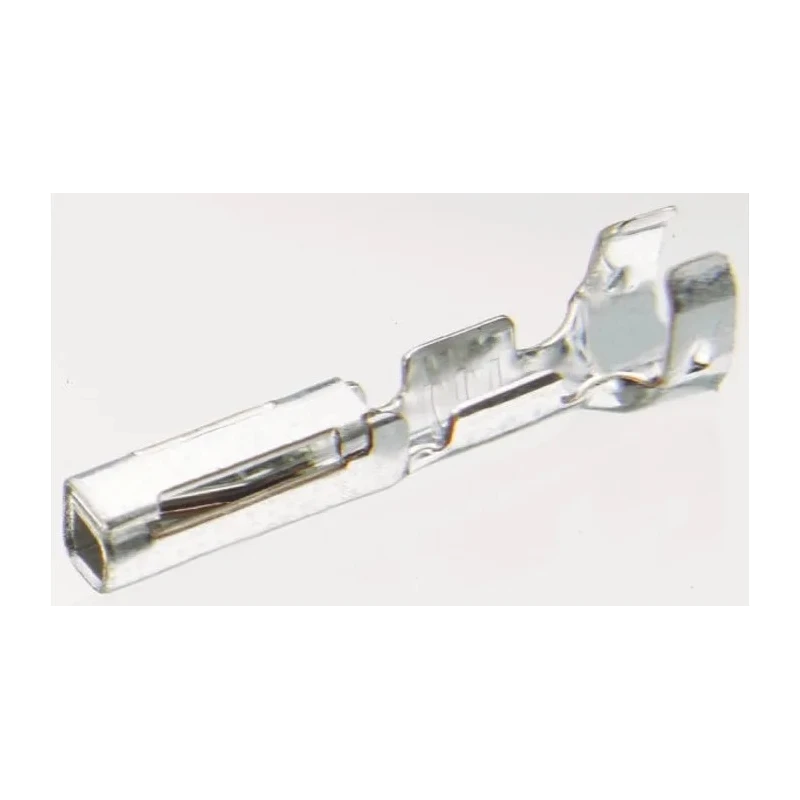

TE Connectivity MULTILOCK 070 Series Female Crimp Terminal 9A Current, 26 AWG Min, 18 AWG Max Wire Size 175027-6

Name: TE Connectivity MULTILOCK 070 Series Female Crimp Terminal 9A Current, 26 AWG Min, 18 AWG Max Wire Size 175027-6
Brand: TE Connectivity
SKU: 218633
Price: 0.31 USD
Availability: InStock



Category Crimp Contact Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Operating Temperature	-30 - 105 °C
Current	9A
Length	16.8mm
Model	175027-6
Gender	Female
Contact Material	Phosphor Bronze
Current Rating	15A
Series	MULTILOCK 070
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-30°C
For Use With	MULTILOCK 070 Connector Housing
Standards/Approvals	UL File No. E28476, UL 94V-2, UL 94V-0, CSA File No. 208567
Contact Plating	Tin
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	1.25mm²
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	18AWG
Low level resistance	10 mΩ max (initial)
Overall resistance	20 mΩ max (final)

Key Features

Compatible with MULTILOCK 070 Connector Housing for secure assembly.
Constructed from phosphor bronze with tin plating for corrosion resistance.
Rated for operation between -30°C and 105°C suitable for harsh environments.
Features crimp termination for strong mechanical and electrical contact.
UL and CSA approved standards ensure safety and performance reliability.
Low level resistance reduces power loss and enhances conductivity.
Ideal for automotive and industrial automation wiring systems.

Product Description

TE Connectivity 175027-6 MULTILOCK 070 Series female crimp terminal is engineered for dependable wire-to-wire and wire-to-board electrical connections. With a current rating of 9A and support for wire sizes ranging from 26 AWG (minimum) to 18 AWG (maximum), this crimp contact provides excellent mechanical and electrical performance in wire harness assemblies.

The contact material is phosphor bronze with tin plating, offering excellent corrosion resistance and conductivity. It is designed to operate reliably in temperature ranges between -30°C and 105°C, accommodating demanding industrial and automotive environments. The 16.8mm length ensures a snug fit within MULTILOCK 070 connector housing cavities, allowing snap-in fixing and consistent connections.

This contact meets rigorous international standards including UL File No. E28476, UL 94V-2, UL 94V-0, and CSA File No. 208567, guaranteeing safety and durability under electrical stress. It features low-level resistance (10 mΩ max initially) and overall resistance not exceeding 20 mΩ, minimizing voltage drops and power loss.

Commonly used in automotive and industrial automation sectors, this high-density connector component supports efficient cable connections and reliable signal transfer. The MULTILOCK system offers modular solutions with female and male socket types, suitable for wire-to-board and wire-to-wire applications using 2.5mm contact centers.

Compatible with MULTILOCK 070 Connector Housing for secure assembly. Phosphor bronze material with tin plating for enhanced conductivity and corrosion protection. Operating temperature range from -30°C to 105°C for harsh conditions.

Crimp termination type for solid mechanical and electrical bonding. Compact 16.8mm length designed for snap-in fixture within connector cavities. Certified according to UL and CSA standards for industrial reliability. Low contact resistance ensures minimal power loss and signal degradation.

Ideal for automotive wiring harnesses and industrial automation cable assemblies. Explore more TE Connectivity products in Crimp Contacts for advanced connector solutions, helping you optimize your industrial and automotive electronics projects.
