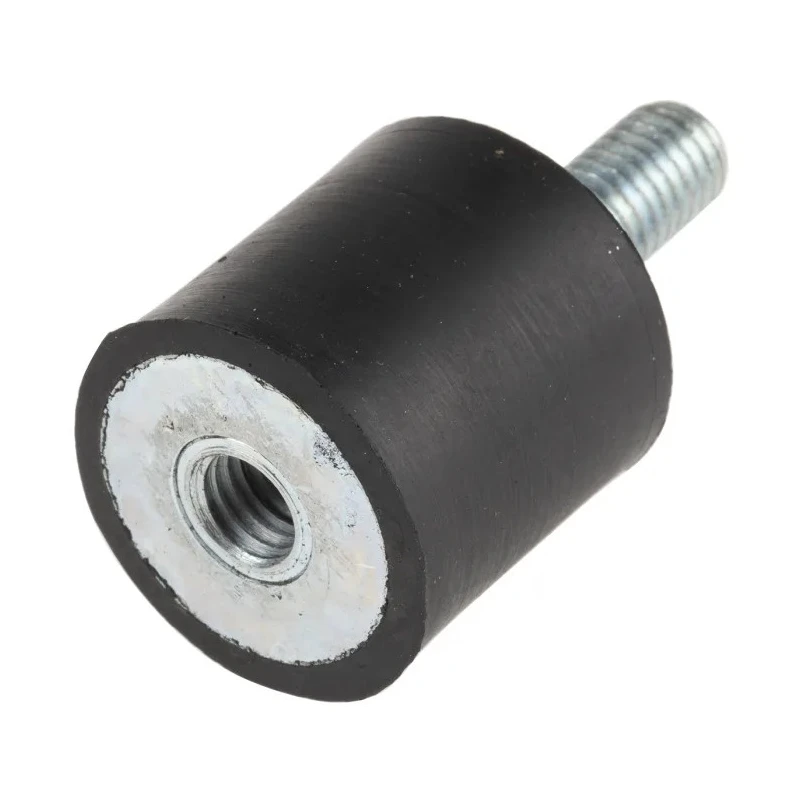

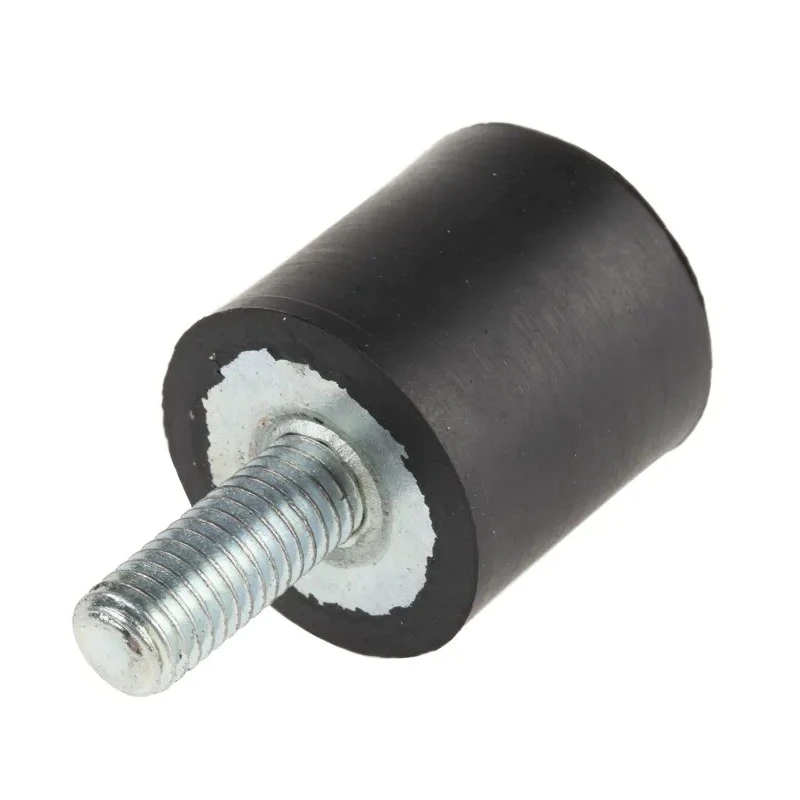

RS PRO M8 Anti-Vibration Mount Male to Female Bobbin 59.2 kg Compression 25 mm OD 25 mm Height 162-3239

RS PRO 162-3239 Anti-Vibration Mount Male to Female Bobbin offers robust vibration isolation with a 59.2 kg compression load capacity, a 25 mm outside diameter, and a 25 mm overall height. This cylindrical mount is constructed from natural rubber bonded to zinc plated mild steel, combining flexibility with strength to effectively isolate vibration and absorb shocks in industrial settings.

The product functions as a reliable solution for vibration and noise control in machinery, reducing wear and tear on expensive equipment such as motors, compressors, and engine mounts. The mount is designed to provide cost-effective damping through both compression and shear modes, ensuring durability over extended operational periods.

Its 70 Shore A hardness rating and compression deflection of 2.5 mm promise optimal performance in protecting electrical components and mechanical parts from the damaging effects of vibration and shock. The mount operates efficiently between -25°C and 70°C, making it suitable for diverse industrial environments.

This anti-vibration bobbin is easy to install, saving time in assembly and maintenance processes. Its compact 25 mm height and diameter dimensions facilitate use in confined spaces while providing effective vibration isolation.

Constructed from natural rubber and zinc plated mild steel for durability and optimum damping performance. Suitable for both compression and shear dampening to protect expensive machinery and electrical components. Features an M8 thread size with an overall height of 25 mm and an outside diameter of 25 mm.

Achieves a compression load capacity of 59.2 kg and a compression deflection of 2.5 mm. Operates reliably within a temperature range from -25°C to 70°C. Shore hardness rating of 70 Shore A for effective vibration isolation.

Easy to install cylindrical mount type designed for industrial machinery applications. Ideal for motors, compressors, electronic control panels, and engine mounts to reduce wear and extend equipment life.

This mount is manufactured in India and complies with RoHS standards, ensuring it meets quality and safety benchmarks. It is specially suited for applications in industrial, manufacturing, construction, HVAC, and laboratory environments where vibration control is critical.
