SMC Pneumatic Guided Cylinder 10mm Bore, CXS Series, Stroke Length 75mm, Double Rod, Slide and Ball Bearing Guide CXSM10-75

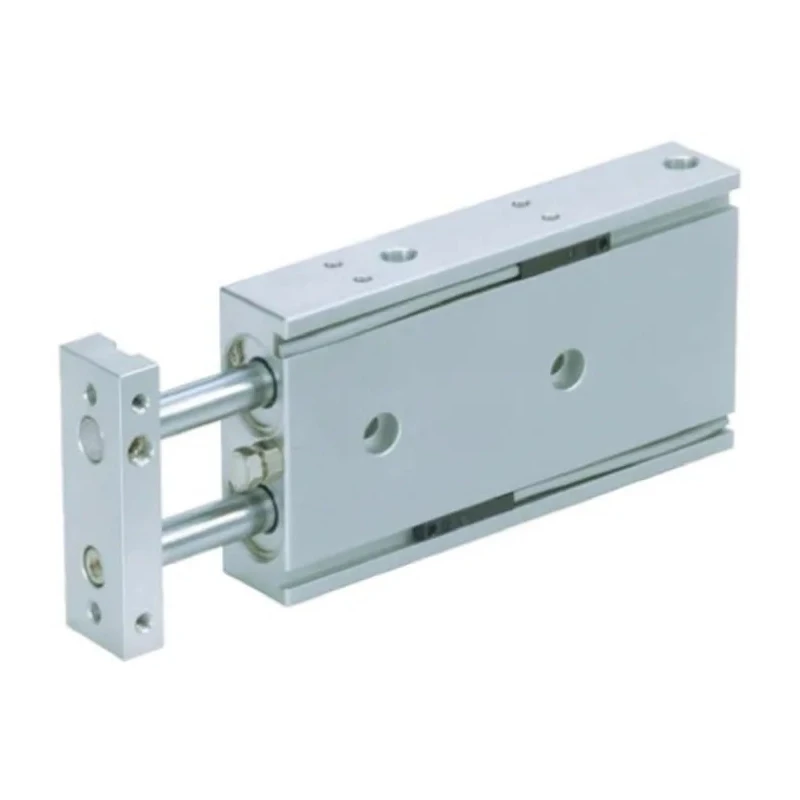

SMC CXSM10-75 Pneumatic Guided Cylinder is a 10mm bore guided cylinder from the CXS Series optimized for high-precision industrial applications. This cylinder utilizes double rods for superior non-rotational accuracy and features both slide bearing and ball bearing guides to ensure smooth and reliable movement under pneumatic actuation.

Designed to operate within a temperature range from -10°C to 60°C, it suits various industrial environments and pneumatic systems. The cylinder supports a maximum operating pressure of 0.7 MPa, making it versatile for numerous mechanical and fluid power applications such as manufacturing automation, pick-and-place machinery, and pneumatic tooling.

Rubber cushioning contributes to smooth piston deceleration and quiet operation. The construction features compact dimensions, including a length of 147mm, width of 46mm, and height of 17mm, with a lightweight build of 280 grams, allowing flexible integration into machinery setups.

The CXSM10-75 model includes integral stroke adjustment which allows fine-tuning of the piston stroke up to 5mm less than the standard stroke length of 75mm. The dual port locations, magnetic sensing recess for auto switches, and buffer cushioning provide enhanced control and feedback capabilities in pneumatic circuits.

This pneumatic guided cylinder is manufactured in China and conforms to no specific approvals or standards, reflecting its broad industrial applicability. It is ideal for use in industries such as manufacturing, automation, packaging, and laboratory equipment where precise positioning and reliable pneumatic actuation are required.

Equipped with double rod for enhanced stability and accuracy. Features slide bearing and ball bearing guide types for smooth operation. Operates efficiently within temperature range -10°C to 60°C. Rubber cushioning ensures quiet and smooth piston movement.

Maximum operating pressure of 0.7 MPa suitable for various pneumatic uses. Compact dimensions: length 147mm, width 46mm, height 17mm. Lightweight design weighing approximately 280 grams promotes ease of integration. Includes integral stroke adjustment with a standard stroke less 5mm.

Incorporates recess for auto switches and magnetic sensing. Explore the Pneumatic Guided Cylinders category for more options and technical innovations on EnvMart.
