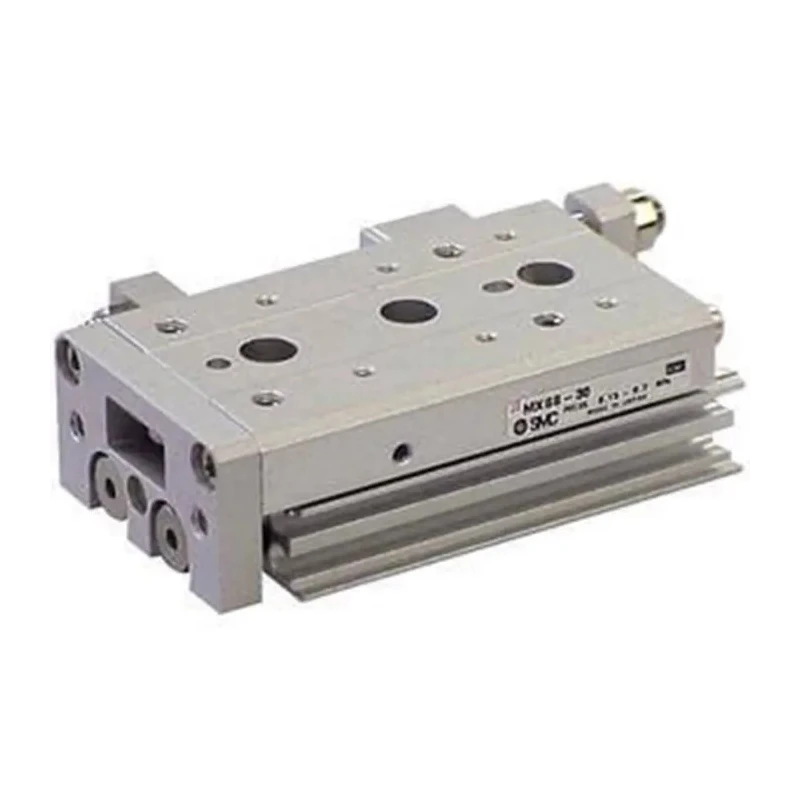

SMC Pneumatic Guided Cylinder 12mm Bore MXS Series 10mm Stroke Double Acting Aluminium Alloy Body MXS12-10AS

The SMC MXS12-10AS pneumatic guided cylinder is a high-precision industrial component designed for fluid power and pneumatic automation systems. This double acting cylinder has a 12mm bore diameter and a 10mm stroke length, making it ideal for applications requiring controlled linear motion with reliable positioning.

Built with an aluminium alloy body, the cylinder balances lightweight characteristics with strength and corrosion resistance, suited for various industrial environments including mechanical machinery, manufacturing automation, and fluid power tools.

The pneumatic guided cylinder integrates guides and rails with cross roller bearings to decouple load bearing from piston rod motions, offering exceptional durability and operational smoothness. Rubber bumpers provide effective cushioning to absorb shocks during operation, extending the cylinder’s service life.

Operational parameters include a maximum operating pressure of 0.7 Mpa, a piston speed capability up to 500mm/s, and operating temperature range from -10°C to 60°C, ensuring versatility across different industrial conditions.

The design features through hole mounting and a piston rod threaded M5 for secure installation options. The unique symmetrical port and stroke adjuster placement enable installation with minimal clearance requirements, facilitating compact machine designs.

This SMC guided cylinder is RoHS compliant and can be optionally equipped with PTFE or food-grade grease. It supports auto switch compatibility and features an end lock option for safety during air pressure loss events.

Constructed with aluminium alloy body ensuring durability and lightweight. Equipped with rubber bumpers for effective cushioning and shock absorption. Operates with a maximum pressure of 0.7 Mpa suitable for diverse industrial applications.

Guide type uses slide bearing combined with cross roller bearing for smooth motion. Suitable for operating temperatures ranging from -10°C to 60°C maintaining reliable performance. Compact dimensions of 80mm length, 50mm width, and 32mm height for space efficient installation.

Features M5 piston rod thread size enabling secure mounting. Maximum piston speed of 500mm/s supports high-speed pneumatic operations. Manufactured in Japan ensuring consistent quality and precision engineering. This pneumatic guided cylinder is an essential component for industrial automation, manufacturing equipment, fluid power control, and mechanical machinery applications.
