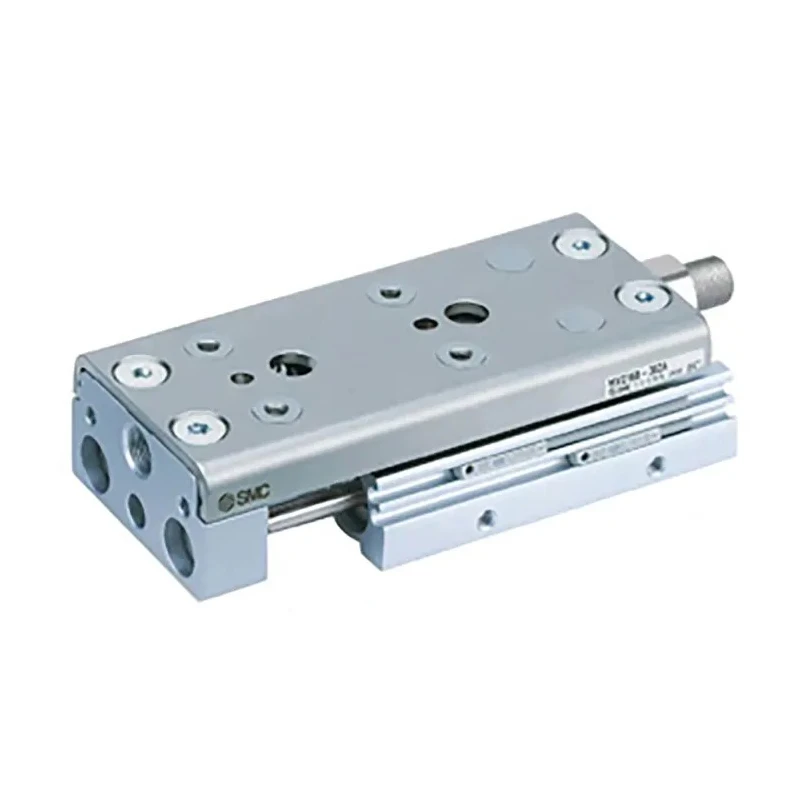

SMC Pneumatic Guided Cylinder 12mm Bore, MXQC Series, 100 mm Stroke, Double Acting, Special Stainless Steel Body MXQ12C-100Z

SMC MXQ12C-100Z Pneumatic Guided Cylinder is a high-quality pneumatic actuator featuring a 12mm bore diameter and a 100mm stroke length. This double acting guided cylinder is designed with a special stainless steel body that reduces weight while enhancing strength and corrosion resistance. Its robust construction makes it ideal for precision industrial and manufacturing applications.

The cylinder supports a maximum operating pressure of 0.7 Mpa, providing reliable power for demanding pneumatic systems. Featuring rubber cushioning, the MXQ12C-100Z ensures smooth piston stops and reduces wear on equipment. The single rod type design contributes to enhanced stability and accurate positioning.

This model includes through-hole mounting options and integrated grooves for auto-switches allowing versatile installation and sensor integration. The compact dimensions - 49mm width, 27mm height, and 199.5mm total length - support space-saving configurations in tight machinery setups.

Operating temperature ranges from -10°C to 60°C allow usage in diverse industrial environments. The maximum piston speed is 500mm/s, which supports high productivity tasks. Weighing only 620 grams, this cylinder balances strength and lightweight design for easier handling and installation.

Its energy efficient design reduces power consumption while maintaining performance. The device complies with RoHS standards, assuring safety and environmental compliance. Its manufacturing origin is France, reflecting stringent quality control.

Applications for the SMC MXQ12C-100Z include pick and place mechanisms, precision placement of workpieces, low friction transport systems, pallet and conveyor positioning, handling of Z-axis movements, and vertical applications in industrial automation, construction, and manufacturing sectors.

The cylinder has a special stainless steel body for durability. Operating pressure up to 0.7 Mpa for robust performance. Equipped with rubber cushioning for smooth operation. Single rod type enhances stability and precision.

Compact design with 49mm width and 27mm height for versatile mounting. Operates efficiently between -10°C and 60°C temperature range. Maximum piston speed of 500 mm/s for high-speed operation. Weighs 620g, providing a lightweight design.

Designed with through hole mounting for simple installation. Manufactured in France, ensuring high quality standards. For more industrial pneumatic components, browse the Pneumatic Guided Cylinders category at EnvMart.
