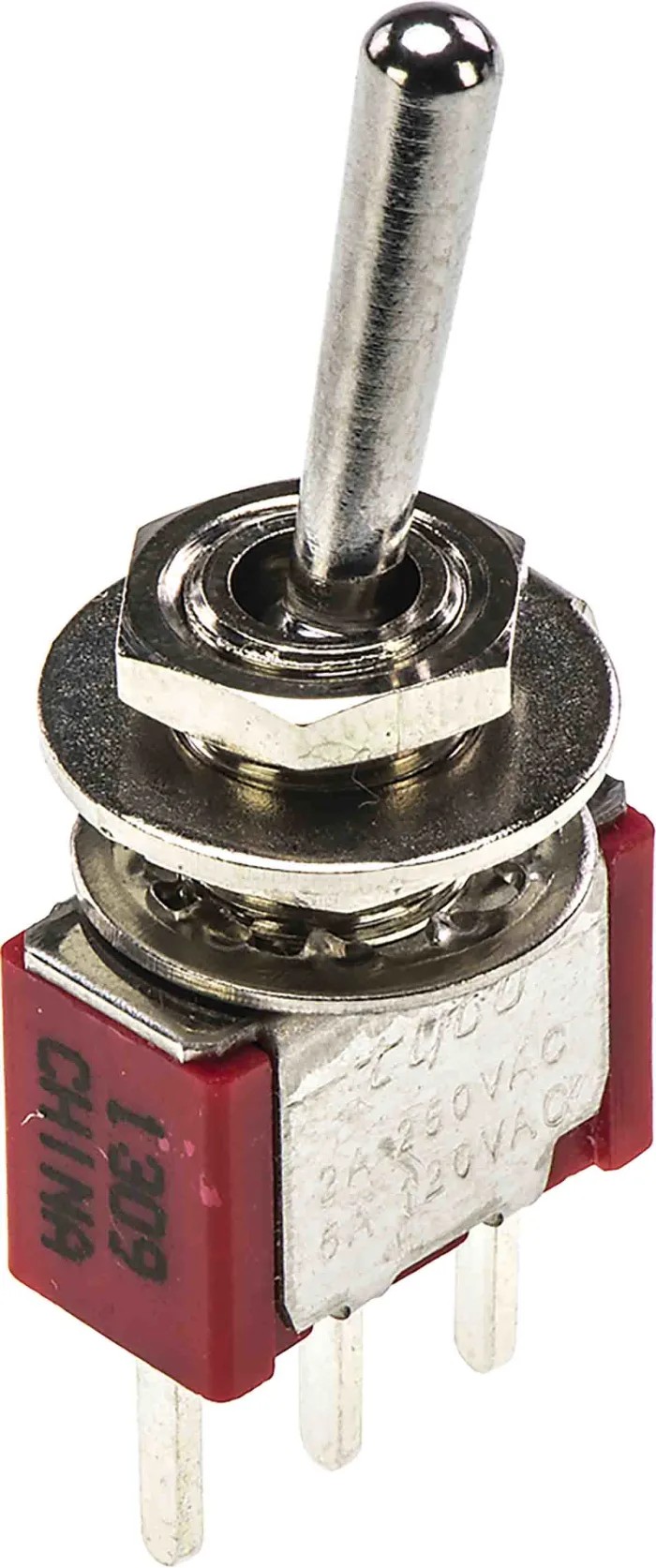

TE Connectivity Toggle Switch PCB Mount On-Off-On SPDT Through Hole Terminal 28 V dc 20 V ac 1-1825137-0
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Length | 0.50in |
| IP Rating | IP67 |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-Off-On |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off-On |
| Actuator Length | 12.19mm |
| Contact DC Voltage | 28V dc |
| Mechanical Life | 6000Cycles |
| Contact AC Voltage | 20V ac |
| Actuator Material | Nickel |
Key Features
- Designed for on-off-on switch operation offering multiple circuit control options.
- Features SPDT contact configuration for single pole double throw functionality.
- Constructed with nickel actuator material ensuring durable performance.
- Rated for 28 V dc and 20 V ac for versatile electrical applications.
- Mount type is PCB with through-hole terminals providing secure and easy installation.
- Equipped with IP67 rating for protection against dust and water ingress.
- Mechanically rated for 6000 cycles ensuring long-lasting operation.
- Operates effectively within temperature range of -30°C to 85°C.
Product Description
TE Connectivity 1-1825137-0 Toggle Switch PCB Mount On-Off-On SPDT is engineered for high reliability and durability in electronic switching applications. This toggle switch is designed for mounting on printed circuit boards using through-hole terminals, providing robust connection and ease of assembly.
Ideal for industrial, electrical, automation, and electronic equipment, it supports on-off-on switch operation with single pole double throw contact configuration, enabling multiple control scenarios within circuits.
The switch features a nickel actuator for strength and longevity and is rated for a contact DC voltage of 28 V and AC voltage of 20 V, making it suitable for low voltage applications. Its IP67 rating ensures excellent protection against dust and water, suitable for demanding environments.
Operating across a temperature range from -30°C to 85°C, this switch maintains consistent performance in various climate conditions. The mechanical life expectancy of 6000 cycles guarantees durable use in repetitive switching roles.
With a panel cutout size of 6.35 mm and actuator length of 12.19 mm, it offers compatibility with compact electronic designs. The product complies with RoHS regulations, ensuring adherence to environmental safety standards.
On-Off-On operation for flexible circuit control. SPDT contact configuration for versatile switching. Nickel actuator material for durability. Rated for 28 V dc and 20 V ac operation. PCB mount with through-hole terminal type.
IP67 rated for dust and water protection. Mechanical life of 6000 cycles. Operational temperature range -30°C to 85°C. Panel cutout size 6.35 mm and actuator length 12.19 mm. RoHS compliant ensuring environmental safety.
This Toggle Switch is suited for use in industrial automation, electronic testing equipment, and electrical panels requiring reliable, compact switching components. Explore more TE Connectivity products and electrical switches on EnvMart for your technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single pole double throw (SPDT) contact configuration, allowing for versatile switching options in circuits.
It is rated for a contact DC voltage of 28 V and an AC voltage of 20 V, making it suitable for low voltage applications.
The switch has an IP67 rating, providing excellent protection against dust and water ingress.
This toggle switch is mechanically rated for 6000 cycles, ensuring long-lasting operation in repetitive switching applications.
It operates effectively within a temperature range of -30°C to 85°C, suitable for various environmental conditions.
It is designed for PCB mounting with through-hole terminals, providing secure and easy installation on printed circuit boards.
The actuator is constructed from nickel, which contributes to its durability and performance.
The panel cutout size for this switch is 6.35 mm, allowing for compatibility with compact electronic designs.
Yes, it complies with RoHS regulations, ensuring adherence to environmental safety standards.
This model is ideal for use in industrial automation, electronic testing equipment, and electrical panels requiring reliable switching components.
The actuator length is 12.19 mm, which is designed to fit within compact spaces on electronic devices.
It supports On-Off-On switch operation, providing multiple circuit control options within electronic applications.
