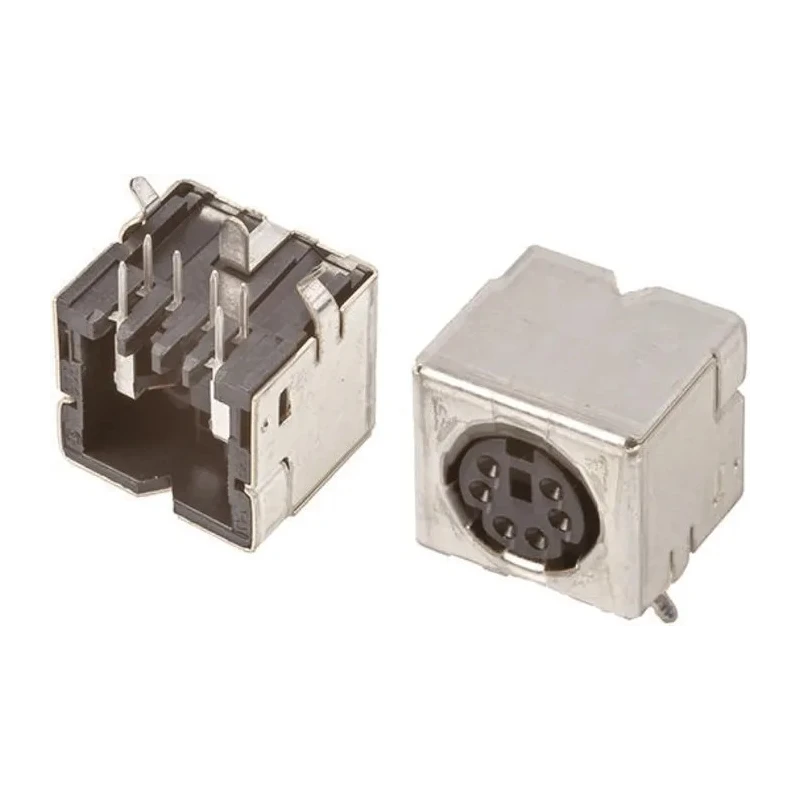

TE Connectivity Mini DIN 6 Pole Right Angle Miniature DIN Socket 1A 30V ac Keyed Through Hole 5749231-1

TE Connectivity 5749231-1 Mini DIN 6 Pole Right Angle Miniature DIN Socket is a high-quality circular connector designed to provide dependable electrical connections in demanding environments. Rated for 1 ampere current and 30 volts AC, this keyed female socket ensures correct mating and shields against electromagnetic interference to maintain signal integrity.

The connector features six contacts housed within a fibreglass reinforced thermoplastic enclosure, delivering excellent mechanical strength and thermal resistance with an operating temperature range from -55°C to 105°C. Its gold over nickel plated copper alloy contacts provide superior conductivity and durability, making it suitable for industrial, electronic manufacturing, telecommunications, and instrumentation applications.

Designed for through hole PCB mounting with a right angle orientation, the connector facilitates efficient board layouts and compact designs. Its solder termination ensures a secure electrical and mechanical connection on printed circuit boards. Compliance to Mini DIN series standards makes it compatible with a range of mating plugs and sockets.

This product is commonly used in electronics assemblies requiring rugged, shielded connections with precise pole alignment. Keying features prevent incorrect connections, improving system reliability. Its compact miniature size suits applications with space constraints while maintaining high performance.

TE Connectivity's Mini DIN connectors are widely regarded in various industrial sectors such as automation, instrumentation, telecommunications, and consumer electronics for their quality and reliability.

This socket features a right angle orientation suitable for compact PCB layouts. Constructed with fibreglass reinforced thermoplastic housing for durability. Gold over nickel plated copper alloy contacts ensure excellent conductivity and corrosion resistance.

Supports operating temperatures from -55°C to 105°C for versatile industrial applications. The connector is keyed and shielded to prevent mismating and reduce interference. It uses a solder termination type for stable and secure connections.

Miniature size makes it ideal for tight spaces in electronic assemblies. Explore more TE Connectivity DIN Connectors and other high-quality industrial components on EnvMart.
