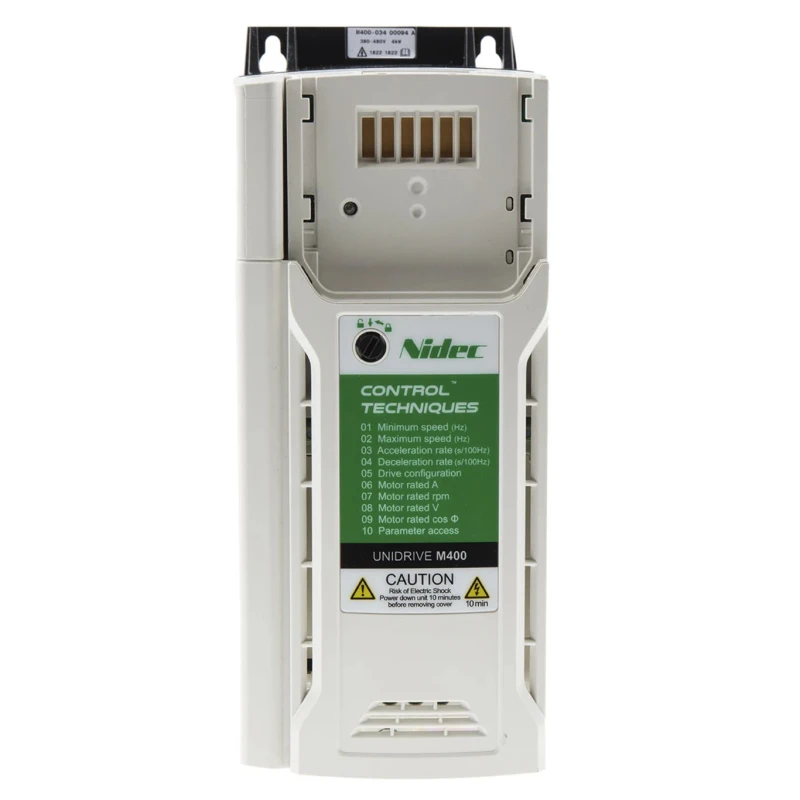

Control Techniques Inverter Drive 1 Phase Panel Mount Vector Control 750 W 240V AC 4.2 A M400-01200042A10100AB100
Specifications
| Country of Origin | China |
|---|---|
| Brand | Control Techniques |
| Model | M400-01200042A10100AB100 |
| IP Rating | IP20 |
| Drive Type | Vector Control |
| Mount Type | Panel |
| Overall Length | 160mm |
| Series | M400 |
| Overall Width | 75mm |
| Power Rating | 750W |
| Maximum Operating Temperature | 40°C |
| Output Frequency | 550Hz |
| Minimum Operating Temperature | -20°C |
| Interfaces | language, 3 line display aids set up and provides diagnostic information |
| Number of Phases | 1 |
| Maximum Output Current | 4.2A |
| Standards/Approvals | CE, cULus, ISO, N1652, RoHS, SIL 3, TUV |
| Maximum Supply Voltage | 240V ac |
| Overall Depth | 130mm |
| Minimum Supply Voltage | 200V |
| Compatible Motor Type | Induction Motor |
Key Features
- Panel mount design suitable for flexible installation.
- Vector control drive type for precision motor management.
- Compatible with induction motors for diverse industrial use.
- Operating temperature range from -20°C to 40°C for reliable performance.
- IP20 rated enclosure protecting internal components.
- Output frequency up to 550 Hz for variable speed applications.
- Conforms to CE, cULus, ISO, N1652, RoHS, SIL 3, and TUV standards.
- Manufactured in China ensuring quality engineering.
Product Description
Control Techniques M400-01200042A10100AB100 inverter drive is a 750 W, 1 phase unit designed to provide precise vector control for induction motors. Its panel mount configuration allows for easy integration into electrical and automation control systems.
The drive features an intuitive multi-language LCD display with three lines, which aids in rapid setup and provides clear diagnostic information to minimize downtime. Navigation is enhanced through four dedicated buttons facilitating easy programming and operation.
Equipped with an onboard PLC, the drive can execute Machine Control Studio programs for complex logic and sequencing tasks in real-time. The advanced open loop motor control ensures high stability and control, using Rotor Flux Control (RFC-A) technology optimized for induction motors across all power ratings.
This product boasts a broad operating temperature range from -20°C to 40°C and IP20 protection rating, making it suitable for various industrial environments. Its compact size (160 mm length, 75 mm width, 130 mm depth) supports space-efficient installations.
Additional features include compliance with multiple international standards such as CE, cULus, ISO, RoHS, SIL 3, and TUV, ensuring high safety and performance benchmarks. The drive supports an output frequency up to 550 Hz and a maximum output current of 4.2 A, powered from a 200 to 240 V AC supply.
Manufactured in China, this inverter drive is ideal for industrial automation, manufacturing, HVAC, and other applications requiring reliable variable speed motor control. Its integrated safety features and flexible I/O options allow seamless integration with safety systems and automation architectures.
Panel mount vector control inverter drive with 750 W output power. Enhanced stability and motor control with Rotor Flux Control technology. Integrated PLC and advanced keypad for easy setup and diagnostics. Compact dimensions optimize panel space usage.
Wide operating temperature range and IP20 protection. Compliance with international safety and quality standards. Supports a maximum output current of 4.2 A and output frequency up to 550 Hz. Compatible with induction motors in industrial automation.
Manufactured in China with quality assurance. Minimizes downtime with advanced diagnostic capabilities. Explore the full range of Inverter Drives and related industrial automation products at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This inverter drive has a power rating of 750 W.
The maximum output current for this model is 4.2 A.
It supports an output frequency of up to 550 Hz.
This unit is compatible with induction motors.
The operating temperature range is from -20°C to 40°C.
The dimensions are 160 mm in length, 75 mm in width, and 130 mm in depth.
It utilizes vector control for precise motor management.
It conforms to CE, cULus, ISO, RoHS, SIL 3, and TUV standards.
It features an intuitive multi-language LCD display with three lines for setup and diagnostics.
It has a panel mount design suitable for flexible installation in electrical systems.
The inverter drive has an IP20 rating, which protects internal components.
It is manufactured in China.
