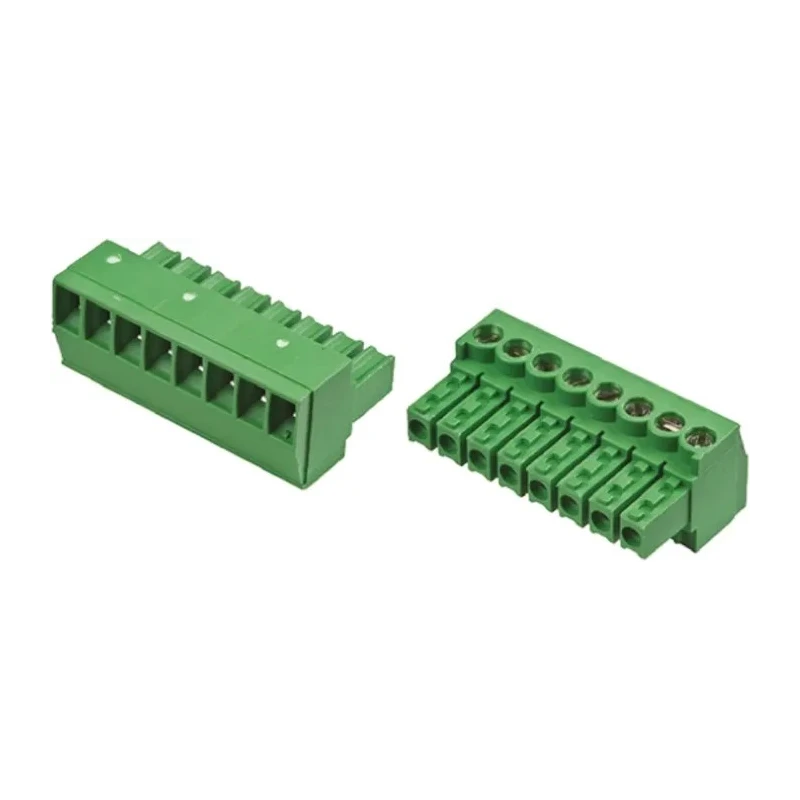

TE Connectivity Buchanan Series Pluggable Terminal Block 8-Contact 3.5 mm Pitch 1 Row 300V AC 11A 284506-8
Specifications
| Country of Origin | Italy |
|---|---|
| Voltage | 300V ac |
| Brand | TE Connectivity |
| Colour | Green |
| Orientation | Right Angle |
| Current | 11A |
| Length | 28mm |
| Model | 284506-8 |
| Depth | 15.5mm |
| Width | 11.1mm |
| Housing Material | Polyamide |
| Series | Buchanan |
| Number of Rows | 1 |
| Pitch | 3.5mm |
| Number of Contacts | 8 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 2mm² |
| Minimum Wire Size AWG | 14AWG |
| Maximum Wire Size AWG | 30AWG |
Key Features
- Features right angle orientation suitable for side wire entry mounting.
- Accepts wire sizes from 0.05 mm² to 2 mm² (30-14 AWG) for versatile wiring needs.
- Constructed with durable polyamide housing for robust insulation and mechanical strength.
- Rated for 300V AC voltage and 11A current capacity ensuring reliable electrical performance.
- Equipped with M2 nickel-plated brass screws and tin-plated contacts for secure and corrosion-resistant connections.
- Buchanan series design allows for side stackable terminal block assembly.
- Manufactured in Italy maintaining high quality standards.
Product Description
TE Connectivity 284506-8 is a high-quality Buchanan Series pluggable terminal block designed with 8 contacts on a 3.5 mm pitch in a single row for efficient electrical connectivity in electronics and electrical assemblies. The terminal block features a right-angle orientation facilitating side wire entry and side stackable mounting on PCBs.
The housing is molded from polyamide 6.6 GF, providing excellent mechanical strength and insulation properties appropriate for industrial and commercial electronic assemblies. The terminal block is rated for a voltage of 300V AC and a current rating of 11A, making it suitable for moderate power applications.
Wiring versatility is enhanced by its ability to accept wire sizes from 0.05 mm² to 2.0 mm², corresponding to AWG 30 to AWG 14. The connections are secured with M2 nickel-plated brass screws, and the internal contacts are tin-plated, ensuring corrosion resistance and reliable electrical contact over time.
This product enjoys the Buchanan series benefits, including compatibility with TERMI-BLOK headers (stock numbers 710-0390 and 710-0387). The compact overall dimensions of 11.1 mm width, 15.5 mm depth, and 28 mm length enable efficient placement in constrained PCB layouts.
Manufactured in Italy, this terminal block addresses the needs of electronic component manufacturing, power connectors assembly, and general electrical applications requiring pluggable terminal solutions.
Features right angle orientation suitable for side wire entry mounting. Accepts wire sizes from 0.05 mm² to 2 mm² (30-14 AWG) for versatile wiring needs. Constructed with durable polyamide housing for robust insulation and mechanical strength.
Rated for 300V AC voltage and 11A current capacity ensuring reliable electrical performance. Equipped with M2 nickel-plated brass screws and tin-plated contacts for secure and corrosion-resistant connections. Compact dimensions: width 11.1 mm, depth 15.5 mm, length 28 mm for efficient PCB space utilization.
Buchanan series design allows for side stackable terminal block assembly. Manufactured in Italy maintaining high quality standards.
This TE Connectivity pluggable terminal block is ideal for industrial, electronic component manufacturing, power connector applications, and circuit board assembly. It supports rapid installation into machinery and electronic devices, enhancing production efficiency and reliability. Explore more related products in the Pluggable Terminal Blocks category at EnvMart for comprehensive electrical connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for 300V AC, ensuring reliable electrical performance in various applications.
This model has a current capacity of 11A, making it suitable for moderate power applications.
The terminal block has compact dimensions of 11.1 mm in width, 15.5 mm in depth, and 28 mm in length, facilitating efficient PCB placement.
The housing is constructed from polyamide, which provides robust insulation and mechanical strength.
Connections are secured with M2 nickel-plated brass screws, ensuring corrosion resistance and reliable electrical contact.
It features a right-angle orientation, suitable for side wire entry mounting.
Yes, the Buchanan series design allows for side stackable terminal block assembly, enhancing space efficiency.
This terminal block is manufactured in Italy, maintaining high quality standards.
It belongs to the Buchanan series, known for its efficient electrical connectivity solutions.
This model has a male connector gender, which is standard for many terminal block applications.
It is suitable for industrial, electronic component manufacturing, power connector applications, and circuit board assembly.
