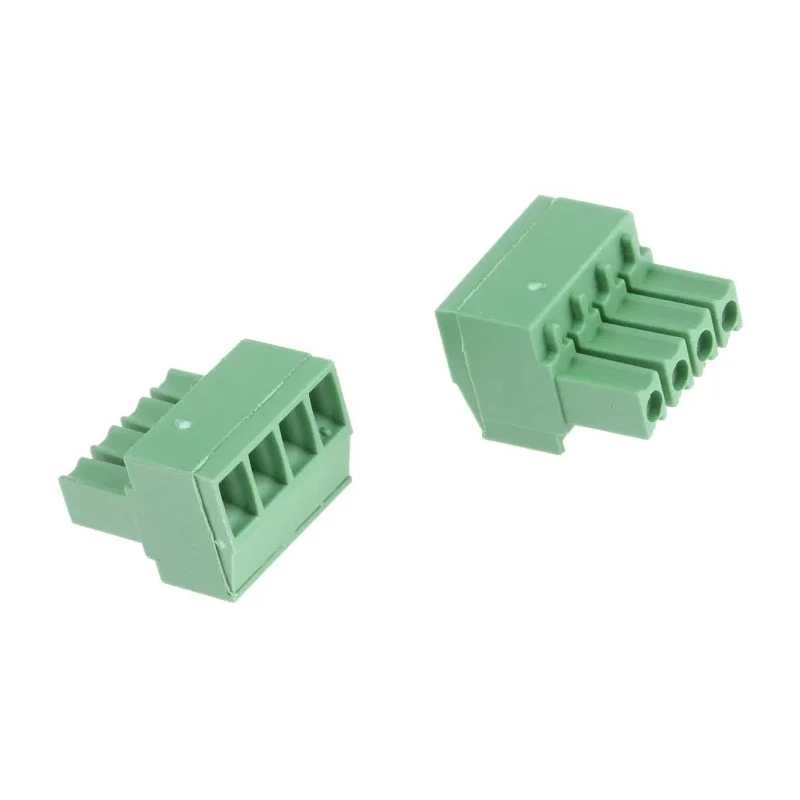

TE Connectivity Buchanan Series 3.5 mm Pitch 4-Contact 1 Row Right Angle Pluggable Terminal Block 284506-4

TE Connectivity 284506-4 is a single-row pluggable terminal block from the Buchanan series, featuring a 4-contact configuration and a 3.5 mm pitch. Designed for reliable electrical connectivity, it supports a current of up to 11A at 300V AC, making it suitable for a wide range of industrial, electronic, and power connector applications.

The terminal block offers a right angle orientation for efficient printed circuit board mounting, complemented by a green polyamide 6.6 GF housing providing excellent mechanical strength and electrical insulation. Its compact dimensions (14 mm length, 11.1 mm width, and 15.5 mm depth) enable space-saving integration into control panels and electronic assemblies.

Wire compatibility ranges from very fine 0.05 mm² (30 AWG) to thicker 2 mm² (14 AWG) wires. The design includes M2 nickel plated brass screws and tin plated contacts, enhancing corrosion resistance and electrical conductivity. The rising cage clamp design ensures strong wire retention and reduces connection failures due to vibration or stress.

The product is manufactured in Italy, adhering to high-quality standards, and does not carry specific approvals or certifications but meets UL 94V-0 standards for flame retardancy. It mates with TERMI-BLOK headers and is stackable side-by-side for flexible wiring architectures.

This pluggable terminal block is ideal for industrial control systems, automation equipment, telecommunications, HVAC systems, instrumentation, and manufacturing machinery where secure and maintainable wiring is crucial.

This component provides a right angle orientation for convenient PCB installation. It supports current ratings up to 11A ensuring reliable electrical performance. The housing is made of robust green polyamide material for durability and insulation.

Compatible with wires ranging from 0.05 mm² to 2 mm² (30 AWG to 14 AWG). Features M2 nickel plated brass screws and tin plated contacts for corrosion resistance. Its rising cage clamp design ensures secure and stable wire connection.

Compact body dimensions of length 14 mm, width 11.1 mm, and depth 15.5 mm optimize space usage. Voltage rating of 300V AC tailor made for electronic and power connector circuits. Manufactured in Italy, assuring quality and compliance with industrial standards.

Part of the Buchanan series known for stackable terminal block solutions. Explore more from TE Connectivity products and comprehensive Pluggable Terminal Blocks here at EnvMart for your next project or upgrade.
