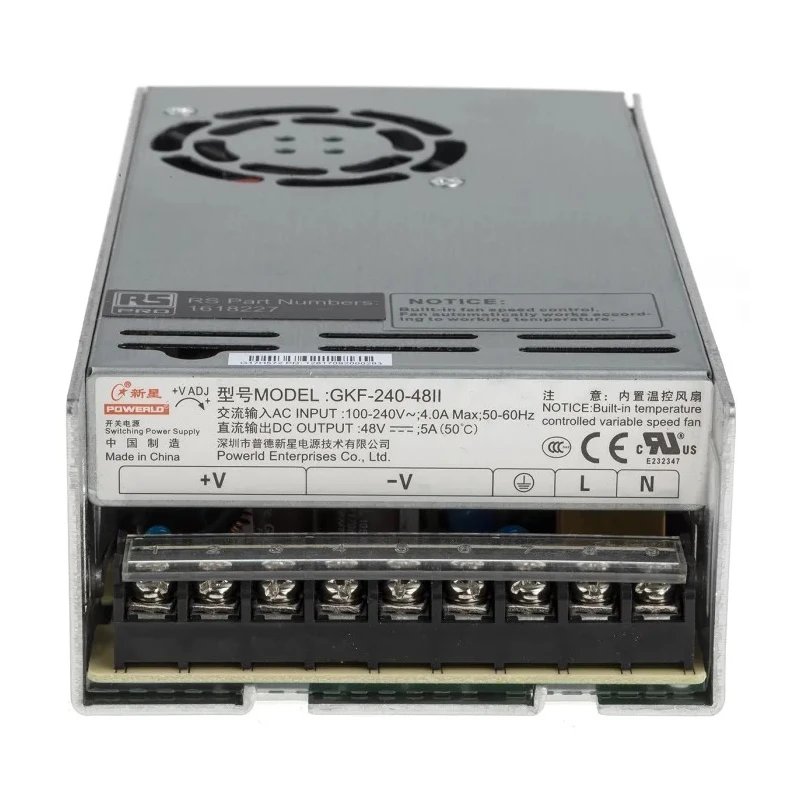

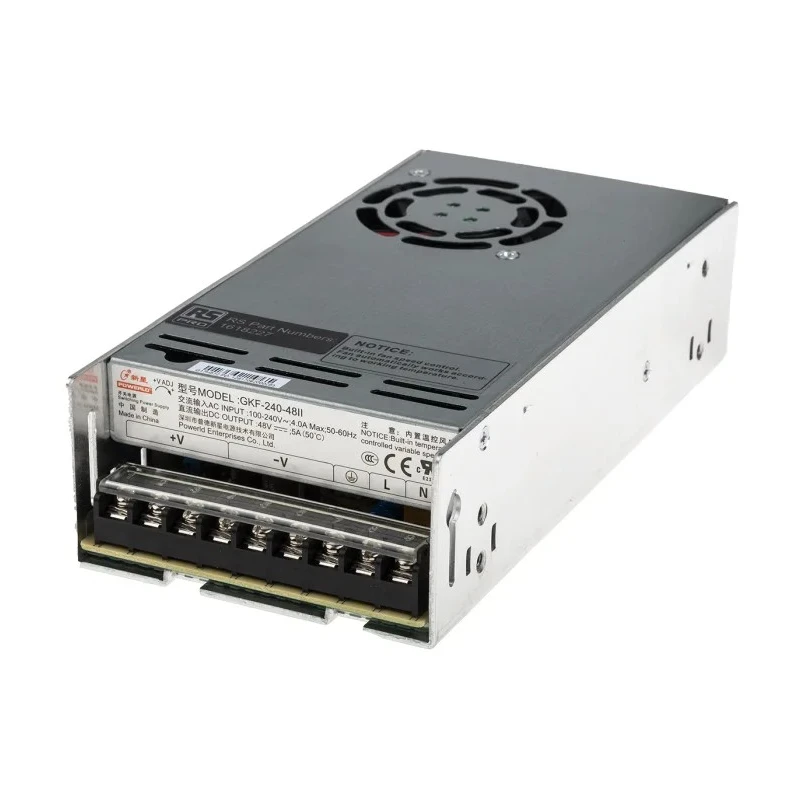

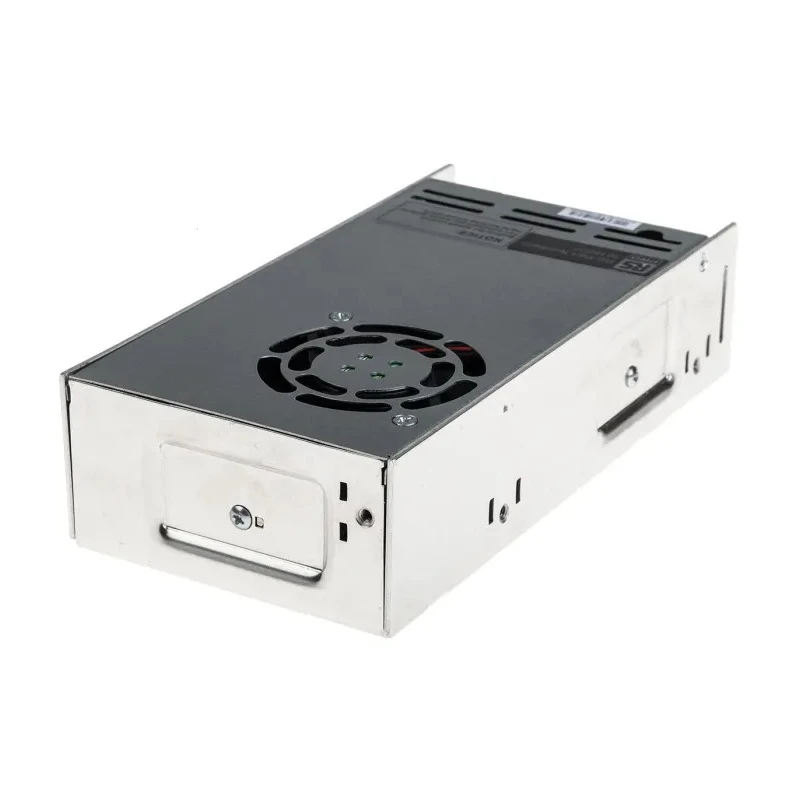

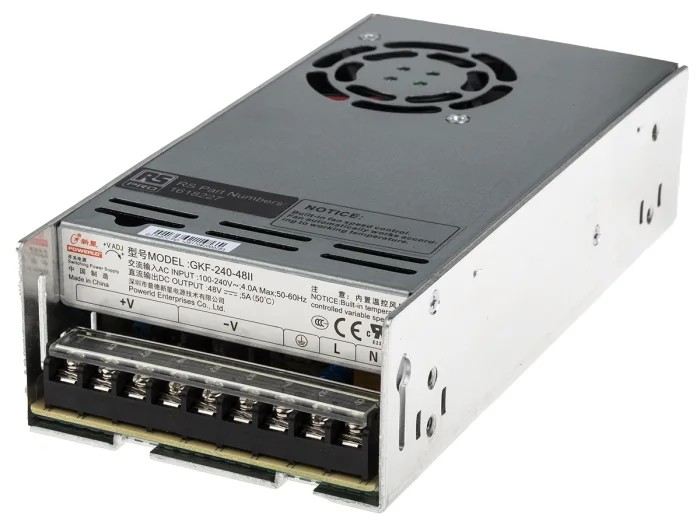

RS PRO Switching Power Supply 48V DC 240W 85-264V AC Chassis Mount 5A Output 161-8227

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Switching Power Supply 48V DC 240W 85-264V AC Chassis Mount 5A Output 161-8227

Name: RS PRO Switching Power Supply 48V DC 240W 85-264V AC Chassis Mount 5A Output 161-8227
Brand: RS PRO
SKU: 217846



Category Switching Power Supplies Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Power	240W
Length	199mm
Model	161-8227
Depth	50mm
Gross Weight	11.6kg
Width	99mm
Mount Type	Chassis
Output Current	5A
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-25°C
Number of outputs	1
Maximum Input Voltage	264V ac
Standards/Approvals	EN60950-1, UL60950-1
Maximum Output Voltage	48V dc
SMPS Output Current	48A
Minimum Input Voltage	85V ac

Key Features

Compact chassis mount design for easy installation.
Wide input voltage range from 85V AC to 264V AC.
Stable single output rated at 5A current.
Operates reliably between -25°C and 70°C ambient temperatures.
Constructed with a vented metal casing for durability and heat dissipation.
High efficiency and high power density suitable for machine tools and security systems.
Certified with EN60950-1 and UL60950-1 standards ensuring safety compliance.
Designed to operate up to 5000 meters altitude without performance loss.

Product Description

RS PRO 161-8227 Switching Power Supply offers a robust industrial-grade solution with a 48V DC output and 240W power capacity. It is equipped with a universal AC input voltage range of 85 to 264 volts, ensuring compatibility across diverse power sources.

Designed with a vented metal chassis mount case and screw terminal connectors, installation and maintenance are both straightforward, making it ideal for industrial machinery and automation systems.

The device delivers a constant current output of 5A, providing reliable power for sensitive electronic applications. Operating temperature ranges from -25°C to 70°C, enabling consistent performance in harsh and variable environments.

Its high efficiency and compact footprint recommend it for power-critical applications like mobile phone charging, security systems, and machine tool industry equipment. The power supply supports operation at altitudes up to 5000 meters, maintaining performance even in elevated locations.

Compact chassis mount design for easy installation. Wide input voltage range from 85V AC to 264V AC. Single stable output rated at 5A current. Reliable operation between -25°C and 70°C ambient temperatures. Durable vented metal casing for heat dissipation and protection.

High efficiency and power density for industrial use. Certified to EN60950-1 and UL60950-1 safety standards. Operates effectively at altitudes up to 5000 meters. Suited for machine tools, security, and mobile phone charger applications.

Manufactured in China ensuring consistent build quality.

This power supply is an ideal choice for industrial, commercial, and laboratory power solutions requiring safe and efficient DC voltage conversion. For more options and technical assistance, explore the EnvMart Electronics categories for power supplies and Switching Power Supplies.
