Finder 34 Series Power Relay 24V DC Coil, 6A Switching Current, SPDT PCB Mount 34.51.7.024.0019

Free Delivery in India | Lowest Global Shipping Charges

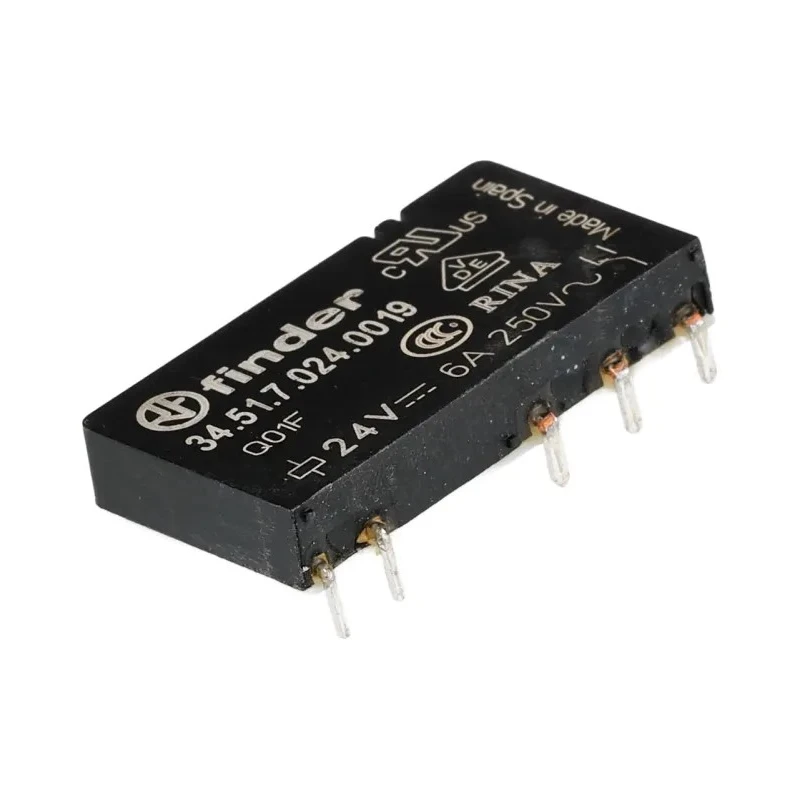

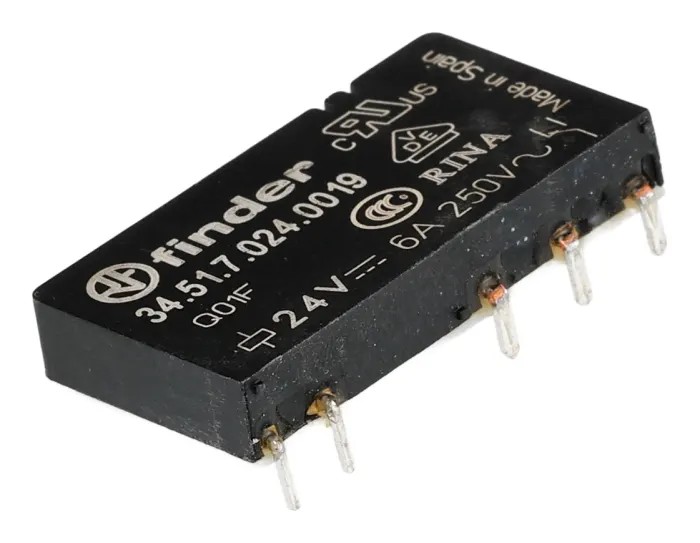

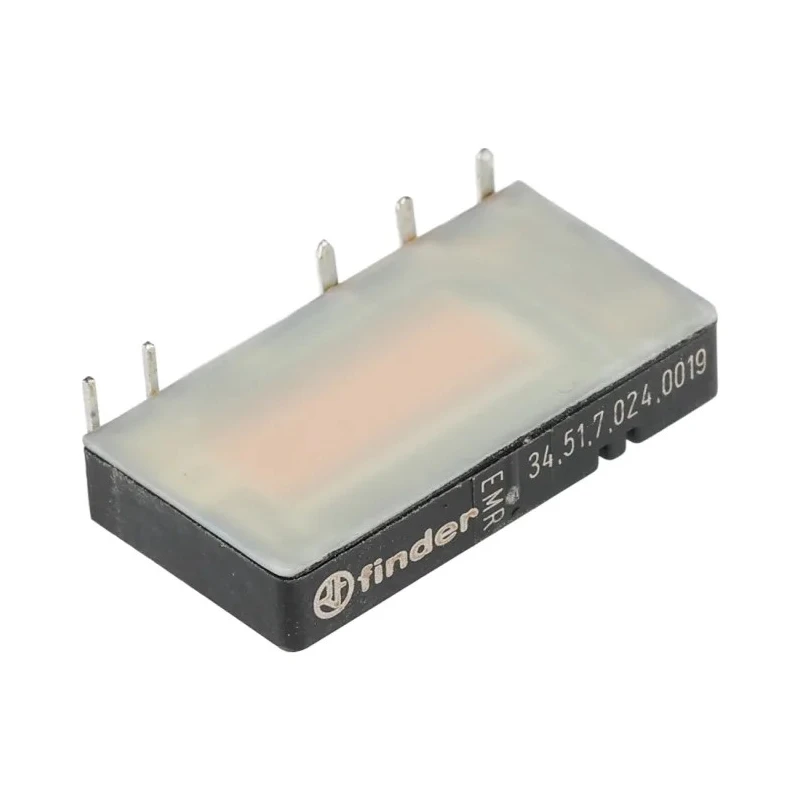

Finder 34 Series Power Relay 24V DC Coil, 6A Switching Current, SPDT PCB Mount 34.51.7.024.0019

Name: Finder 34 Series Power Relay 24V DC Coil, 6A Switching Current, SPDT PCB Mount 34.51.7.024.0019
Brand: FINDER
SKU: 217561
Price: 11.15 USD
Availability: InStock



Category Power Relay Brand FINDER Condition New

Specifications

Country of Origin	India
Brand	Finder
Height	15mm
Length	28mm
Width	5mm
Mount Type	PCB
Contact Material	Silver Alloy
Series	34
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Minimum Operating Temperature	-40°C
Switching Current	6A
Terminal type	Through Hole
Standards/Approvals	UL, EAC, CE
Coil Resistance	3.4kΩ
Coil Voltage	24V dc
Switching DC Voltage	60V dc
Switching AC Voltage	250V ac
Coil Power	170mW
Finder PCB Relay, 24V dc Coil, 6A Switching Current, SPDTBrand	Finder

Key Features

Supports a versatile SPDT contact configuration for multiple switching scenarios.
Designed with a 24V DC coil for standard low voltage control applications.
Capable of handling a switching current up to 6A and switching voltages up to 400V AC.
Constructed with through hole terminals for secure PCB mounting and reliable electrical connections.
Coil power consumption is low at 170mW, enhancing energy efficiency.
Built to operate within a temperature range of -40°C to +85°C for reliable performance in harsh environments.
Features silver alloy contacts, maximizing contact durability and reducing wear.
Compact dimensions of 28mm length, 5mm width, and 15mm height facilitate space-saving installation.

Product Description

Finder 34.51.7.024.0019 Power Relay is a high-quality SPDT relay designed for PCB mounting with a 24V DC coil voltage and a robust 6A switching current rating. It efficiently supports various industrial and electrical automation applications including machinery control and automated processes.

The relay features a compact design measuring 28mm in length, 5mm in width, and 15mm in height, making it suitable for integration into printed circuit boards with limited space. Its through hole terminal type guarantees reliable and secure mounting on PCBs.

Operating over a wide temperature range from -40°C to 85°C, this relay ensures dependable functionality even in demanding environments. The coil resistance of 3.4kΩ and coil power consumption of 170mW contribute to its energy-efficient operation.

Constructed with silver alloy contact material, this power relay offers enhanced durability and reduces contact wear, supporting high current switching up to 6A and accommodating switching voltages of up to 400V AC. It complies with international standards such as UL, EAC, and CE, reflecting its quality and safety credentials.

Finder 34 Series relays are commonly employed in industrial settings like bottling and packaging machinery, timers, lighting control systems, labelling equipment, burners, boilers, furnaces, and programmable controllers to deliver precise control and efficient operation.

Supports versatile SPDT contact configuration. 24V DC coil voltage for standard automation control. Handles 6A switching current and 400V AC switching voltage. Through hole terminal type for secure PCB installation. Low coil power consumption of 170mW enhances efficiency.

Operating temperature range of -40°C to +85°C. Silver alloy contacts for increased reliability and longevity. Compact and space-saving design. UL, EAC, and CE certified. Ideal for industrial automation and electrical control.
