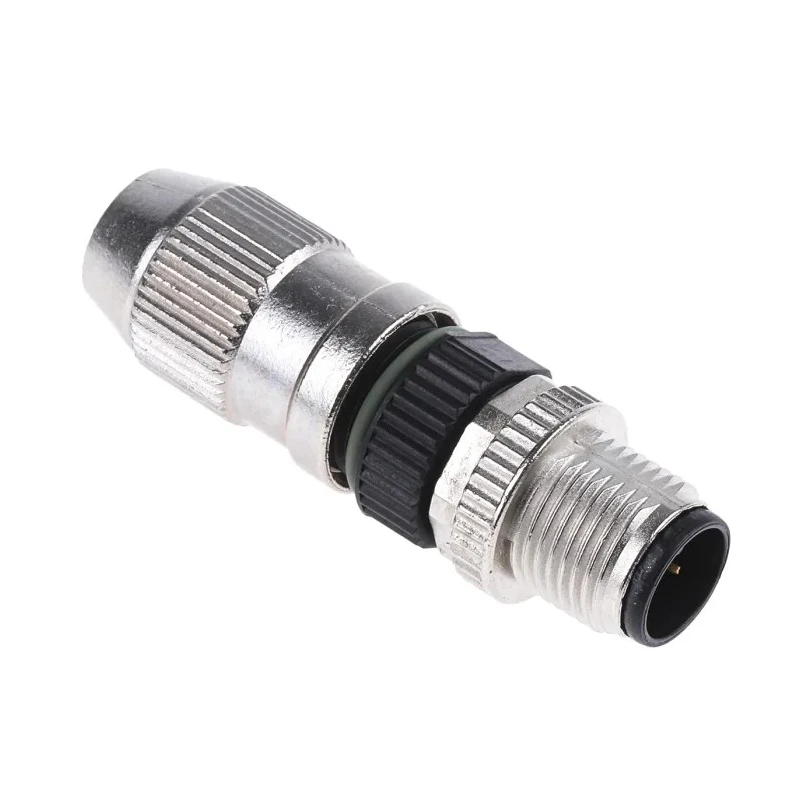

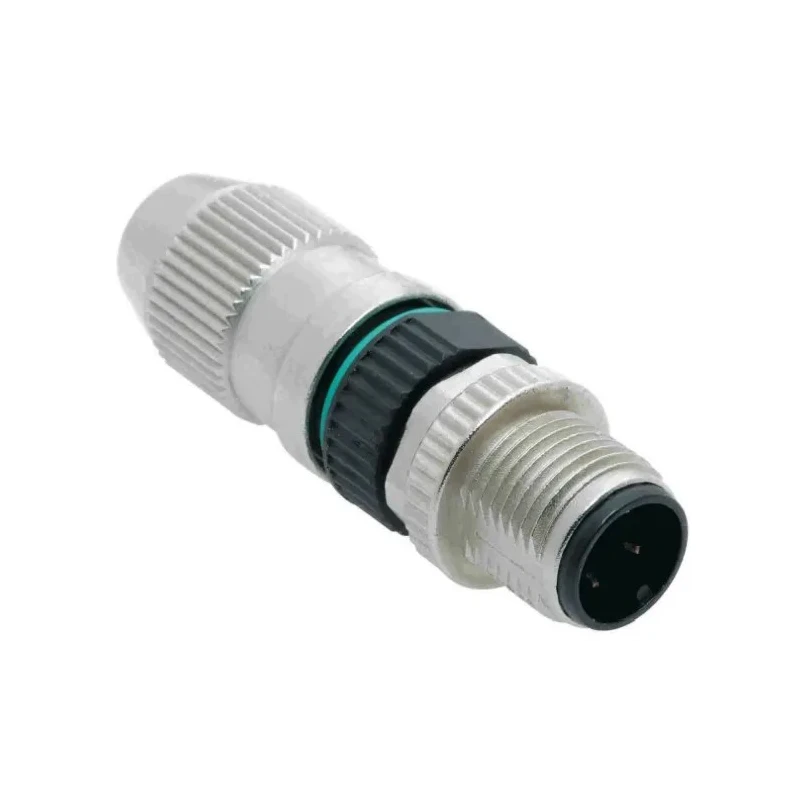

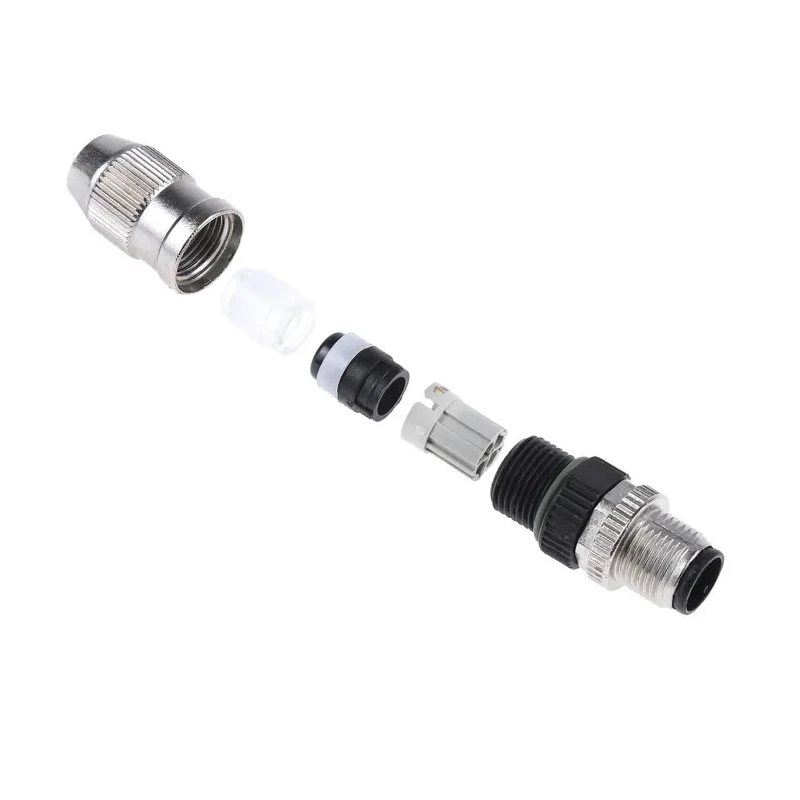

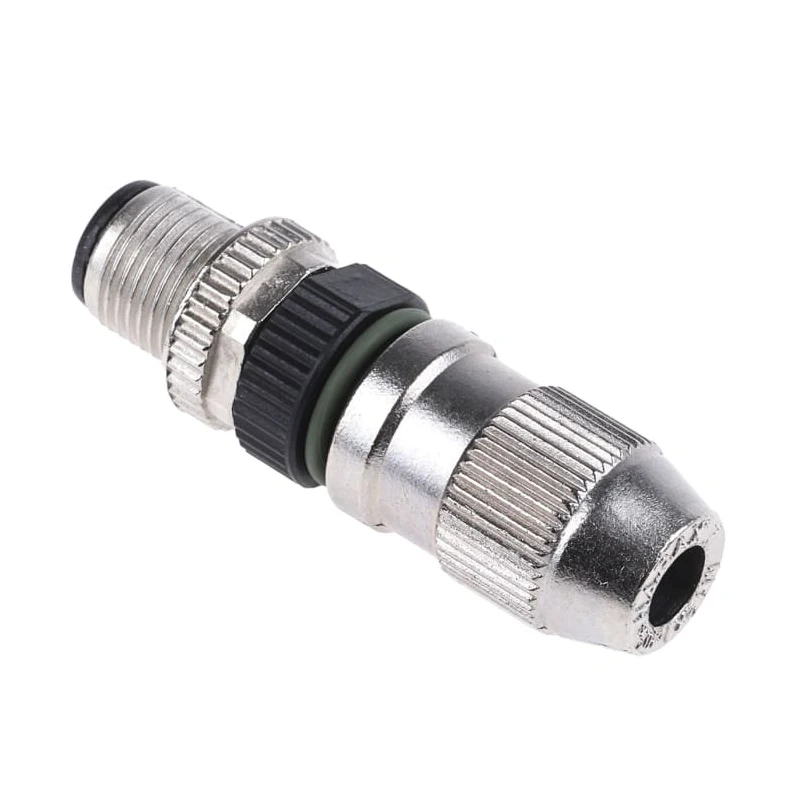

HARTING Circular Connector 4 Contacts Cable M12 Plug Male IP65 IP67 Harax M12 Series 21031111405
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 32V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 4A |
| IP Rating | IP65, IP67 |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | Harax M12 |
| Termination Type | IDC |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 4 |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shell Size | M12 |
| Mating Type | A Coded |
| Connector Size | M12 |
| Plug/Socket | Plug |
| Coding | A |
Key Features
- Provides robust connection with four gold-plated contacts for low-resistance signal transmission.
- Brass contacts with gold over nickel plating enhance corrosion resistance and durability.
- Rated for 4A current at 32V nominal voltage for sensor and actuator applications.
- Cable-mount type with straight plug orientation supports inline cabling runs.
- Polyamide housing ensures protection against dust and water jets for harsh conditions.
- Suitable operating temperature range from -40°C to 85°C for versatile environments.
- Harax M12 series connector with A coding and IDC termination for reliable cable assembly.
- Designed for use in factory automation, production machinery, and control cabinets.
Product Description
HARTING 21031111405 Circular Connector is a compact and rugged Industrial Circular Connector featuring 4 gold-plated contacts for reliable low-resistance signal transmission. Designed as an M12 cable-mounted plug, it supports a continuous current rating of 4A at a nominal 32V voltage, making it suitable for moderate current sensor and actuator applications in control and automation systems.
The connector's brass contacts feature a gold-over-nickel plating that enhances electrical conductivity and provides a durable surface to withstand repeated mating cycles. The polyamide housing offers excellent resistance to environmental factors and is rated IP65 and IP67, ensuring protection against dust ingress, water jets, and temporary immersion, which is vital for harsh industrial settings.
This straight A-coded Harax M12 series plug uses IDC termination for quick and reliable cable assembly. Its operating temperature range from -40°C to 85°C enables usage in varied thermal conditions.
Typical applications include sensor cabling in factory automation environments, actuator connections on production machinery, distributed I/O modules in control cabinets, and fieldbus or device-level network links. It is also well-suited for temporary test rigs requiring easy assembly and disassembly.
Four gold-plated contacts for enhanced signal quality and corrosion resistance. Brass contact base with gold over nickel plating for wear resistance. 4A current rating and 32V voltage for low power industrial signals. Polyamide body with IP65 and IP67 ingress protection ratings.
IDC termination type for efficient and durable cable termination. Temperature range from -40°C to 85°C suitable for diverse environments. Straight orientation and cable mount type for inline cabling uses. Harax M12 series connector with A-coded interface.
This connector is engineered for demanding industrial and automation applications, providing dependable connectivity in electrical and control systems. EnvMart customers searching for high-quality circular connectors will find this HARTING M12 plug ideal for their needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 4A and a nominal voltage of 32V, making it suitable for low power industrial signals.
It is rated IP65 and IP67, providing protection against dust ingress and water jets, as well as temporary immersion in water.
The housing is made of polyamide, while the contacts are brass with gold over nickel plating for enhanced conductivity and corrosion resistance.
The operating temperature range is from -40°C to 85°C, allowing it to function in diverse environmental conditions.
This unit features 4 contacts, designed for reliable low-resistance signal transmission.
It utilizes IDC (Insulation Displacement Connector) termination for efficient and reliable cable assembly.
This model has a straight orientation, which supports inline cabling runs.
It is designed for use in factory automation, production machinery, control cabinets, and sensor cabling applications.
The connector features A coding, which is standard for M12 connectors in industrial applications.
The shell size of this unit is M12, which is common for industrial circular connectors.
The HARTING Circular Connector is manufactured in Germany.
