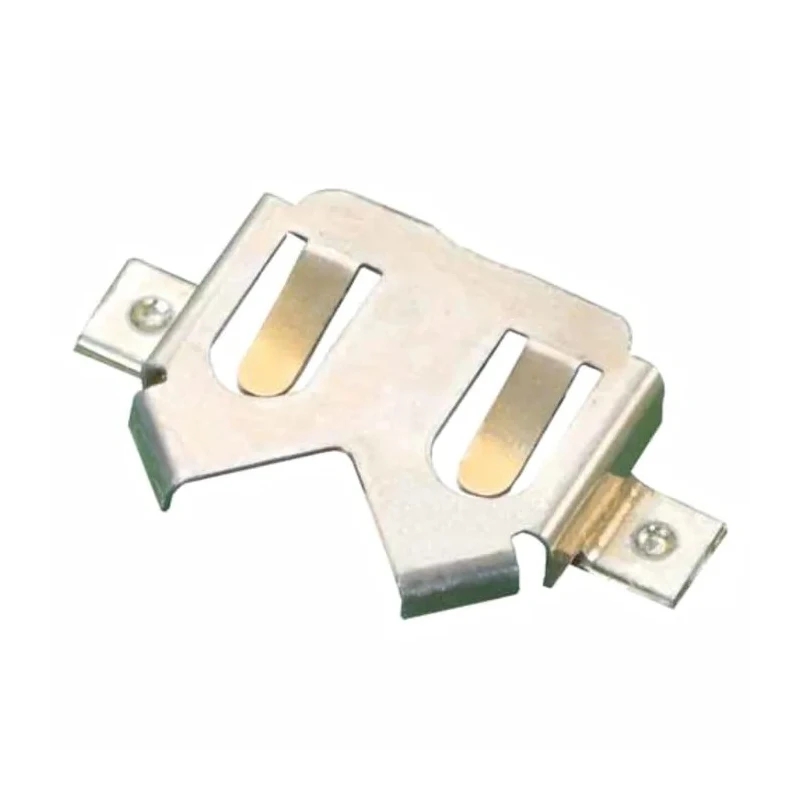

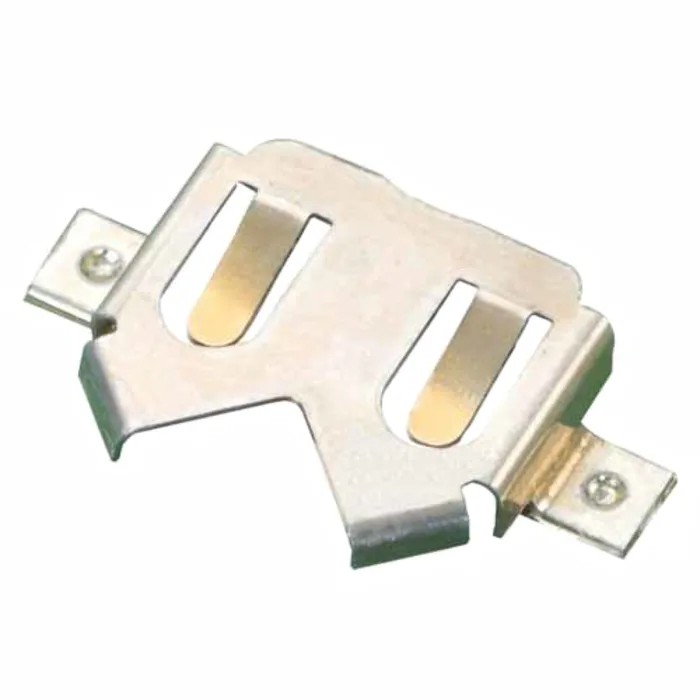

HARWIN CR1225, CR1216 Battery Holder Solder Tag PCB Mount Tinned Copper with Polyvinyl Chloride Insulation S8201-46R
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Diameter | 12.5mm |
| Brand | HARWIN |
| Body Material | Tinned Copper with Polyvinyl Chloride Insulation |
| Height | 3.2mm |
| Length | 13.2mm |
| Model | S8201-46R |
| Width | 11.8mm |
| Mount Type | PCB |
| Series | S8201 |
| Number of Cells | 1 |
| Termination Type | Solder Tag |
| Sub Type | Battery Holder |
| Compatible Battery Size | CR1225, CR1216 |
Key Features
- Suitable for one CR1225 or CR1216 coin cell battery.
- Constructed with tinned copper and insulated with polyvinyl chloride.
- PCB mount type for secure installation.
- Low profile design with compact dimensions.
- Termination via solder tag for reliable electrical connection.
- Series S8201 ensures compatibility and form factor consistency.
- Manufactured in the United Kingdom ensuring quality standards.
Product Description
HARWIN S8201-46R is a specialized battery holder designed to securely house CR1225 and CR1216 coin cell batteries, typically used in various electronic applications. The holder is a PCB mount type equipped with solder tag termination, ensuring a stable and reliable electrical connection during manufacturing processes.
Constructed from tinned copper with a polyvinyl chloride insulation body, the holder offers excellent conductivity combined with electrical insulation to safeguard adjacent circuitry. Its low profile and compact form factor, with exact body length of 13.2mm, width 11.8mm, height 3.2mm, and diameter 12.5mm, make it suitable for tightly packed PCBs where space efficiency is critical.
This battery holder is designed for single-cell configurations, supporting one coin cell at a time, compatible specifically with CR1225 and CR1216 sizes. It belongs to the S8201 series, ensuring consistent design attributes and interchangeability.
Manufactured in the United Kingdom, the S8201-46R complies with high quality manufacturing standards, although it has no specific formal certifications listed. Suitable for one CR1225 or CR1216 coin cell battery. Body made from tinned copper with polyvinyl chloride insulation.
PCB mount for strong and space-saving installation. Solder tag termination for secure electrical contact. Compact, low profile design. Perfect for electronic components and power supply assemblies. Series S8201 ensures compatibility with similar holders.
Manufactured in the United Kingdom.
This battery holder is ideal for use in electronics assemblies, power connectors, instrumentation, and other industrial applications requiring reliable coin cell mounting on printed circuit boards. Browse further in the Electronics & Electricals category for compatible Battery Holders and accessories at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is compatible with CR1225 and CR1216 coin cell batteries, allowing for secure mounting of one battery at a time.
It features a PCB mount type, designed for strong and space-saving installation on printed circuit boards.
The body is constructed from tinned copper and insulated with polyvinyl chloride, providing excellent conductivity and electrical insulation.
The dimensions are as follows: length 13.2mm, width 11.8mm, height 3.2mm, and diameter 12.5mm, making it compact for tight spaces.
Termination is achieved via solder tag, ensuring a reliable electrical connection during manufacturing processes.
It belongs to the S8201 series, which ensures compatibility and consistent design attributes with similar holders.
It is manufactured in the United Kingdom, adhering to high quality manufacturing standards.
This unit is designed to accommodate a maximum of one coin cell battery at a time.
It is suitable for use in electronics assemblies, power connectors, instrumentation, and other industrial applications requiring reliable coin cell mounting.
The height of this battery holder is 3.2mm, contributing to its low profile design.
The polyvinyl chloride insulation serves to safeguard adjacent circuitry while providing electrical insulation for the holder.
The diameter of the HARWIN S8201-46R is 12.5mm, making it suitable for compact PCB applications.
